SSL Debug doesn't give any details

I am getting ssl handshake failures for a basic 443 VIP with a client ssl profile root@(bigip2)(cfg-sync Changes Pending)(Active)(/Common)(tmos)# list sys db log.ssl.level sys db log.ssl.level {...

application delivery

LTM

Dario_Garrido

MVP

Hello David.

I recommend you to disable "generic alert" in the ssl profile (client/server) to see more details.

KR,

Dario.

David_M

Cirrostratus

Jul 08, 2019

Did it still it shows nothing like the kb article says it should.

Its just that single line of ssl handshake failure and the cipher info which i log with irules

Jul  8 12:18:10 bigip2 info tmm5[12766]: Rule /Common/track-ssl-hs <CLIENT_DATA>: Client: 172.22.200.113 attempts SSL with ciphers: caca,1301,1302,1303,c02b,c02f,c02c,c030,cca9,cca8,c013,c014,009c,009d,002f,0035,000a
Jul  8 12:18:10 bigip2 info tmm6[12766]: 01260013:6: SSL Handshake failed for TCP 172.22.200.113:33589 -> 10.1.61.62:443
Jul  8 12:18:10 bigip2 info tmm5[12766]: Rule /Common/track-ssl-hs <CLIENTSSL_HANDSHAKE>: Client: 172.22.200.113 successfully negotiates ECDHE-RSA-AES256-GCM-SHA384
Jul  8 12:18:10 bigip2 info tmm4[12766]: Rule /Common/track-ssl-hs <CLIENT_DATA>: Client: 172.22.200.113 attempts SSL with ciphers: 2a2a,1301,1302,1303,c02b,c02f,c02c,c030,cca9,cca8,c013,c014,009c,009d,002f,0035,000a
Jul  8 12:18:10 bigip2 info tmm4[12766]: Rule /Common/track-ssl-hs <CLIENTSSL_HANDSHAKE>: Client: 172.22.200.113 successfully negotiates ECDHE-RSA-AES256-GCM-SHA384

Rodrigo_Albuque
MVP
Jul 08, 2019
Which KB article are you talking about? Also, which version are you talking about?

You can take a packet capture with generic-alert turned off like DavidMas advised and decrypt the capture on Wireshark.
David_M
Cirrostratus
Jul 08, 2019
I am not trying to decrypt anything but looking for the handshake failure reason.

This https://support.f5.com/csp/article/K15292#enable
Rodrigo_Albuque
MVP
Jul 08, 2019
Which version of BIG-IP are you using?
David_M
Cirrostratus
Jul 09, 2019
I tried this on 12.x and 13.x, so ssl debug should give me the reasons anyway , and then i disabled the generic alert in the profile too, but still nothing in the ltm log.

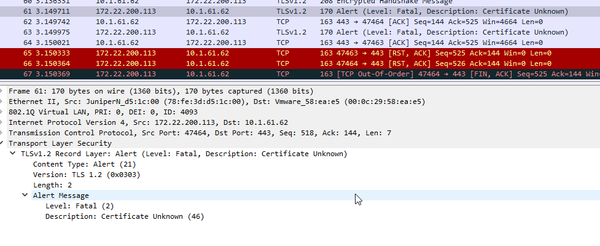

In the pcap I do see fatal errors, I am thinking this is just because this cert i am using is not a browser trusted one as of now.

But i dont see why that should cause ssl handshake failures.
David_M
Cirrostratus
Jul 09, 2019
Well i replaced the certificate with a proper certificate the handshake failure errors are indeed gone now!
Rodrigo_Albuque
MVP
Jul 09, 2019
Cool! Was that on the server side? Did you disable generic-alert on server-ssl profile?
David_M
Cirrostratus
Jul 09, 2019
The backend pool is on port 80 and i was using client ssl only.

I did not have a properly signed cert, now i added the root to my browser and changed the cert in client ssl and the HS failure is gone, . .how did it allow the connection if the HS fails is what i am thinking.
Rodrigo_Albuque
MVP
Jul 09, 2019
What do you mean it allowed the connection? From your Wireshark capture, the handshake failed.
David_M
Cirrostratus
Jul 14, 2019
Yes even after the HS failing the website opened fine in the browser, is this normal?
David_M
Cirrostratus
Aug 25, 2019
Hi Rodrigo,

Well I was still able to see in the capture that the SSL handshake still throws the same error but it then continues to load the page.
