Verifying CN received (client auth)

Hi guys,

I'm trying to verify client auth certificate and using this iRule, but from the logs I can see it's always Accepted even though my trusted_certs only has 1 CN;

i.e: my trusted_certs is "CN" = "3456.mycompany.com" ;

But even if I send 1234.mycompany.com it still says Client Certificate Accepted:CN=1234.mycompany.com

when CLIENTSSL_CLIENTCERT {
if { [SSL::cert count] != 0 }{
    set cert [SSL::cert 0]
    set subject_dn [findstr [X509::subject [SSL::cert 0]] "CN=" 0 ","]
    log "Client Certificate Received: $subject_dn"
}

if { ([matchclass $subject_dn contains trusted_certs]) } {
    log "Client Certificate Accepted: $subject_dn"
    } else {
        log "No Matching Client Certificate Was Found Using: $subject_dn"
        reject
    }
}
application delivery
iRules
  • ciscoarc's avatar
    ciscoarc
    Icon for Nimbostratus rankNimbostratus
    May 29, 2018

    Hi Blakely,

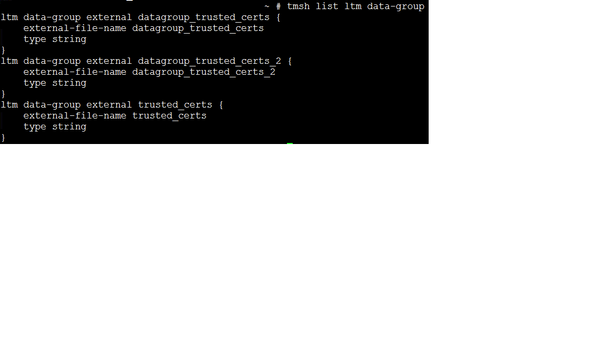

    Yeah I tested that too. Still the same (I better change my code snippet, as I know matchclass uses the $:: object)



    and the data group is there..



  • ciscoarc's avatar
    ciscoarc
    Icon for Nimbostratus rankNimbostratus
    May 29, 2018



    I can't seem to include any arguments after data-group



  • Simon_Blakely's avatar
    Simon_Blakely
    Icon for Employee rankEmployee
    May 29, 2018

    It's an external file, so you can't list the contents. Try:

    cat /config/filestore/files_d/Common_d/data_group_d/\:Common\:trusted_certs*
  • ciscoarc's avatar
    ciscoarc
    Icon for Nimbostratus rankNimbostratus
    May 29, 2018

    Apologies, due to organization rule, I can't divulge the full CN.

    The trusted_certs only contains 1 single line as above. So I created a self-signed cert and key using openssl and send it to the Virtual Server with command:

    openssl -s_client -connect host:port -cert 1234.mycompany.com -key 1234.mycompany.com

    This is what I see from F5 logs:

  • Simon_Blakely's avatar
    Simon_Blakely
    Icon for Employee rankEmployee
    May 29, 2018

    I think what is happening is:



    The way you created your datagroup has created a datagroup element with a name of "CN" and a value of "3456.xxxx.yyyy.zzz".



    Your extraction from the certificate is CN=1234.xxxx.yyyy.zzz



    So the contains match is for "CN", and will always match. You can create your datagroup without the CN= element at all, or specify the -value specifier to match on the values.
