Verified Design: SSL Orchestrator with McAfee Web Gateway-Part 1

Summary

This article is part of a series on implementing Orchestrated Infrastructure Security. It includes High Availability and the protection of critical assets using McAfee Web Gateway.  It is assumed that SSL Orchestrator is already deployed, and basic network connectivity is working.

If you need help setting up SSL Orchestrator for the first time, refer to the Dev/Central article series on Implementing SSL Orchestrator here or the CloudDocs Deployment Guide here.

This article focuses on using SSL Orchestrator as a tool to assist with simplifying Change Management processes, procedures and shortening the duration of the entire process.

Configuration files of McAfee Web Gateway can be downloaded from here from GitLab.

Please forgive me for using SSL and TLS interchangeably in this article.

A video demo of this Dev/Central article is available HERE

This article is divided into the following high level sections:

Part1 (Available here)

  • Configure McAfee Web Gateway (MWG) interfaces
  • Create a new Topology to perform testing
  • Monitor McAfee Web Gateway statistics – change the weight ratio – check McAfee Web Gateway stats again
  • Remove a single McAfee Web Gateway device from the Service

Part 2 (Available here)

  • Perform maintenance on the McAfee Web Gateway device
  • Add the McAfee Web Gateway device to the new Topology
  • Test functionality with a single client
  • Add the McAfee Web Gateway device back to the original Topology
  • Test functionality again
  • Repeat to perform maintenance on the other McAfee Web Gateway device

Configure McAfee Web Gateway (MWG) interfaces

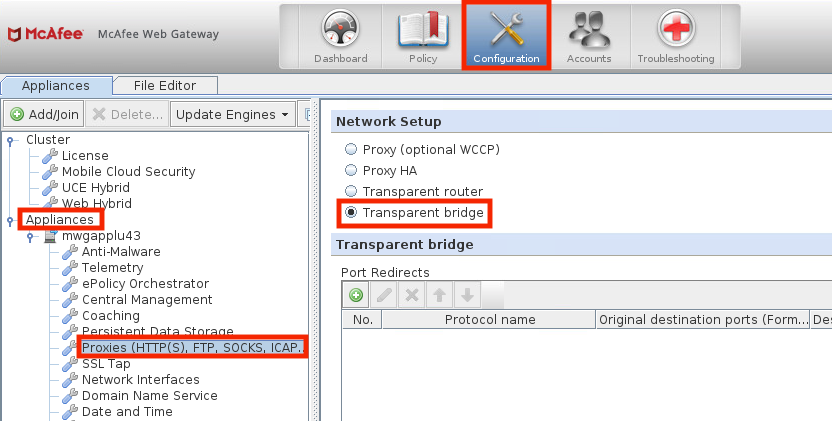

From the MWG UI navigate to Configuration > Appliances > Proxies.  Under Network Setup select Transparent bridge.

Click Save Changes on the top right

Navigate to Network interfaces. In this example eth2 and eth3 will be used to create the Transparent bridge. Both interfaces need to be enabled and the IP settings must be disabled for IPv4 and IPv6.

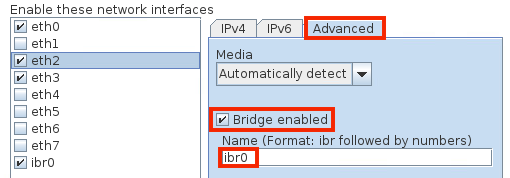

On the Advanced tab enable the bridge and give it a name, ibr0 in this example. Do this for both interfaces.

Save changes

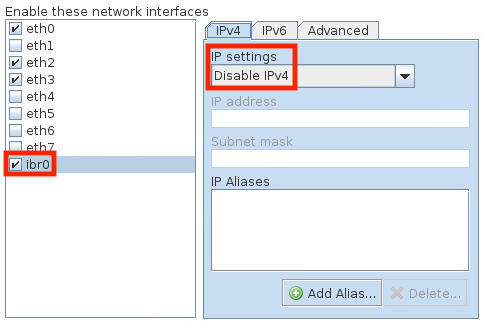

Check ibr0 and set it to enabled.  Disable IPv4 and IPv6

Click Save Changes

Note: complete these steps on the 2nd McAfee Web Gateway

Note: when configuring for High Availability you will need to create a 2nd Transparent bridge

Please contact McAfee for assistance if needed

Create a new Topology to perform testing

A new Topology will be used to safely test the Service after maintenance is performed.  The Topology should be similar to the one used for production traffic.  This Topology can be re-used in the future.

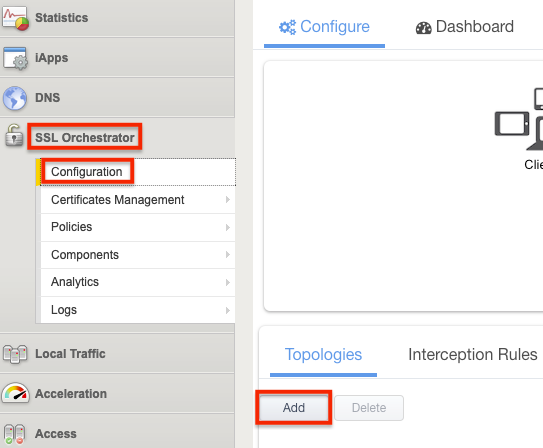

From the BIG-IP Configuration Utility select SSL Orchestrator > Configuration.  Click Add under Topologies.

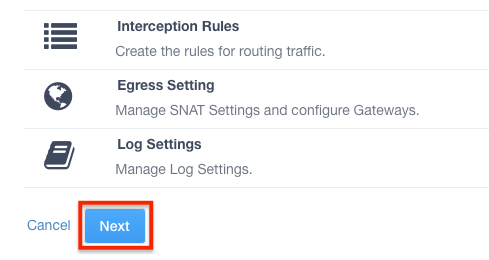

Scroll to the bottom of the next screen and click Next.

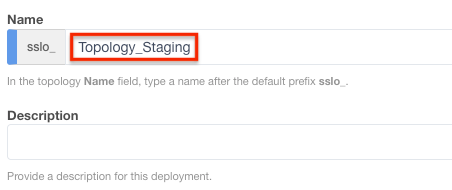

Give it a name, Topology_Staging in this example.

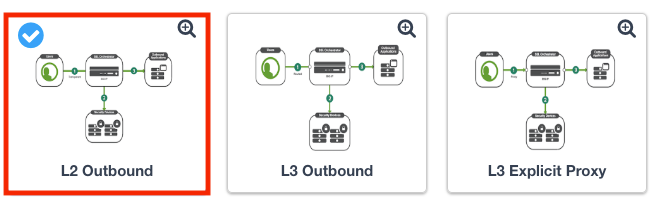

Select L2 Outbound as the Topology type then click Save & Next.

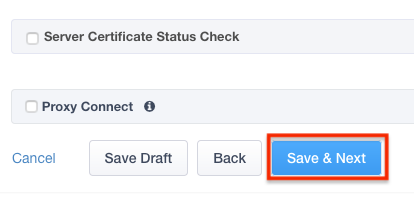

For the SSL Configurations you can leave the default settings.  Click Save & Next at the bottom.

Click Save & Next at the bottom of the Services List.

Click the Add button under Services Chain List.  A new Service Chain is needed so we can remove McAfee Web Gateway from the Production Service and add it here.

Give the Service Chain a name, Staging_Chain in this example.  Click Save at the bottom.

Note: The Service will be added to this Service Chain later.

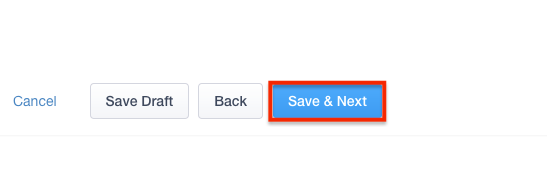

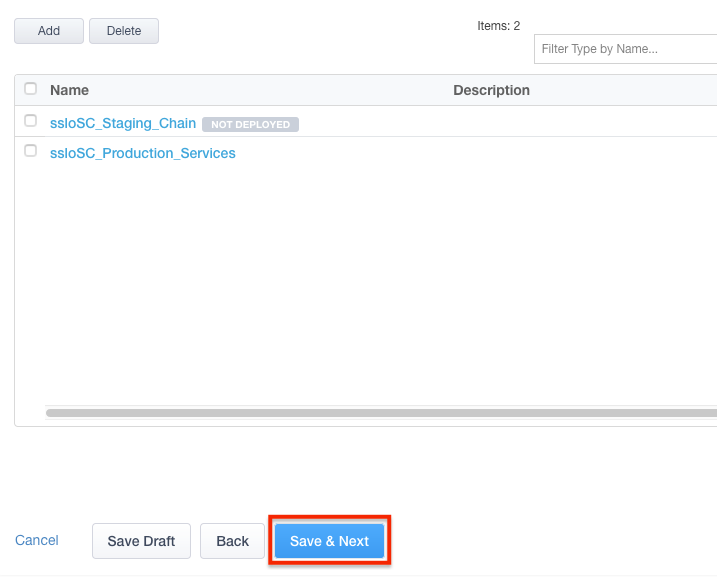

Click Save & Next

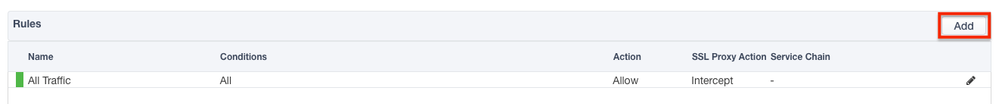

Click the Add button on the right to add a new rule.

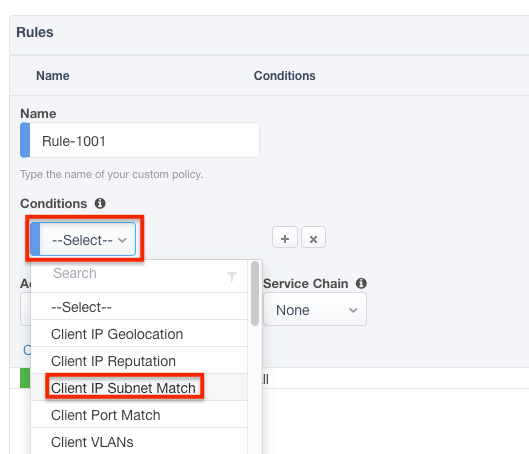

For Conditions select Client IP Subnet Match.

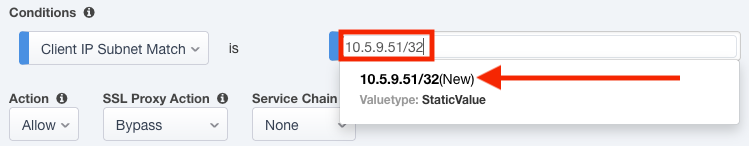

Enter the Client IP and mask, 10.5.9.51/32 in this example.  Click New to add the IP/Subnet.

Set the SSL Proxy Action to Intercept.

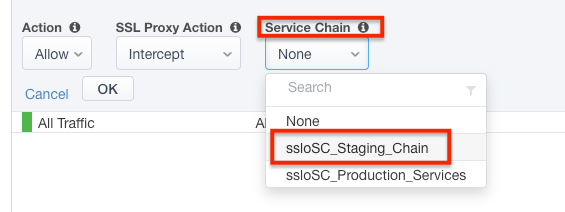

Set the Service Chain to the one created previously.

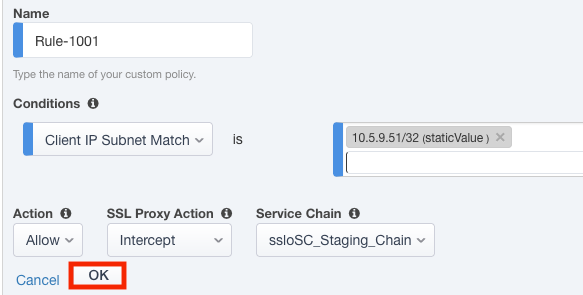

Click OK.

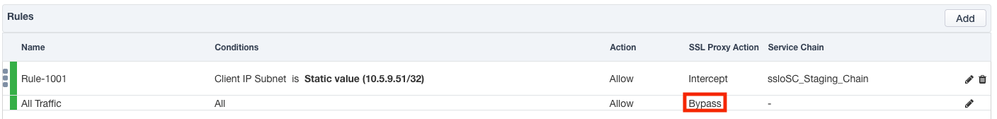

Note: This rule is written so that a single client computer (10.5.9.51) will match and can be used for testing.  In the All Traffic default rule set the SSL Proxy Action to Bypass.

Select Save & Next at the bottom.

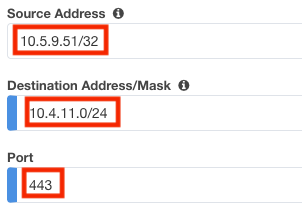

For the Interception Rule set the Source Address to 10.5.9.51/32.  Set the Destination Address/Mask to 10.4.11.0/24.  Set the port to 443.

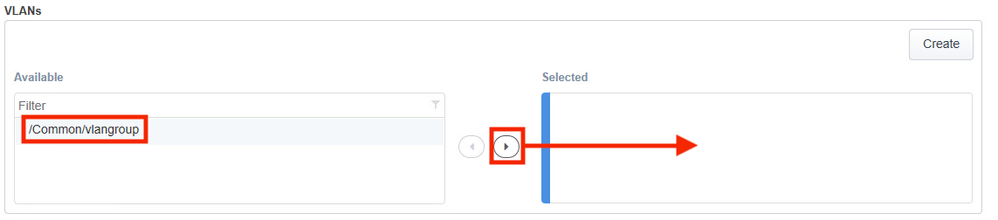

Select the VLAN for your Ingress Network and move it to Selected.

Set the L7 Profile to Common/http.

Click Save & Next.

For Log Settings, scroll to the bottom and select Save & Next.

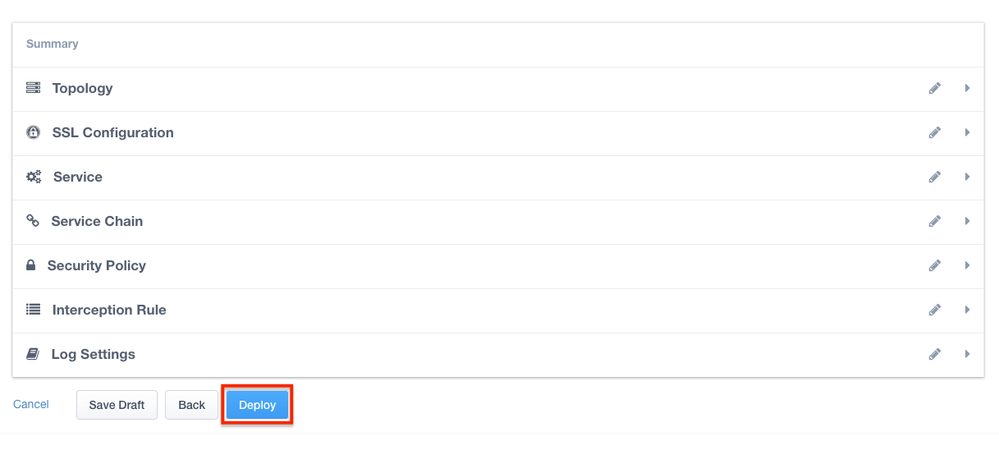

Click Deploy.

Monitor McAfee Web Gateway statistics – change the weight ratio – check McAfee Web Gateway statistics again

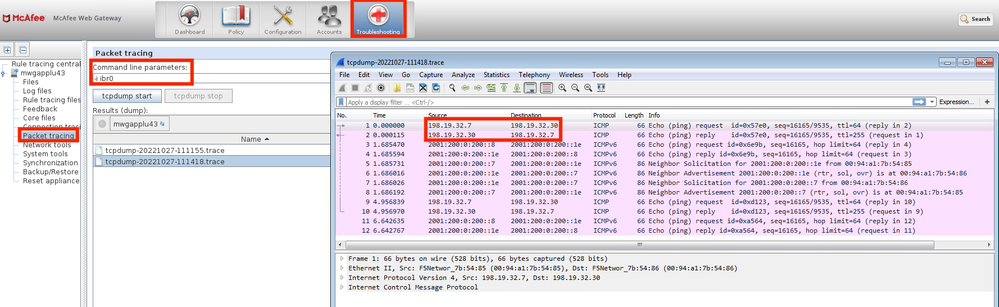

Check the statistics on the McAfee Web Gateway device we will be performing maintenance on.  It’s “MWG1” in this example. One way to do this is with a packet trace. From the McAfee Web Gateway UI go to Troubleshooting > Packet tracing. I set the Command line parameters to “-I ibr0” which will capture all packets on the bridge interface.

Note: This McAfee Web Gateway device is actively processing connections. Note the connections are in clear text, HTTP on port 80. SSL Orchestrator decrypted the SSL/TLS and sent it to the McAfee device for inspection.

Change the Weight Ratio

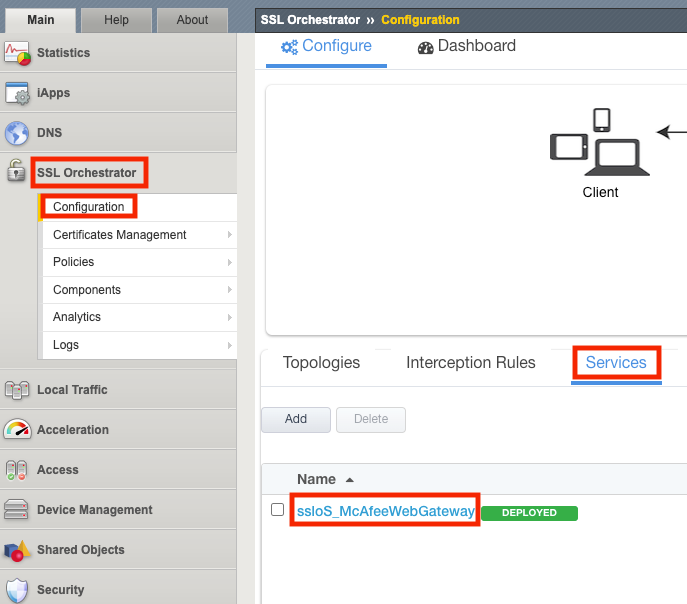

Back to the SSL Orchestrator Configuration Utility.  Click SSL Orchestrator > Configuration > Services > then the Service name, ssloS_McAfeeWebGateway in this example.

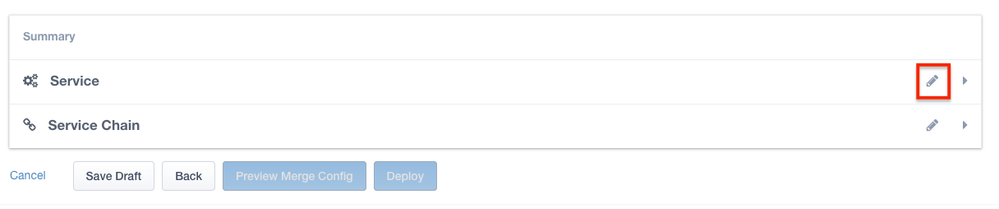

Click the pencil icon to edit the Service.

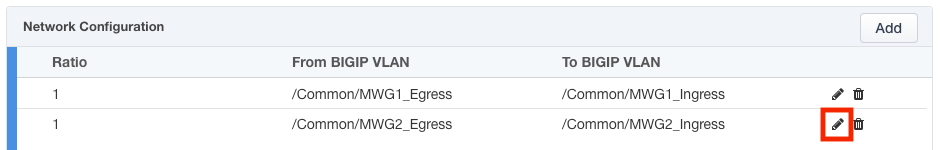

Click the pencil icon to edit the Network Configuration for MWG2

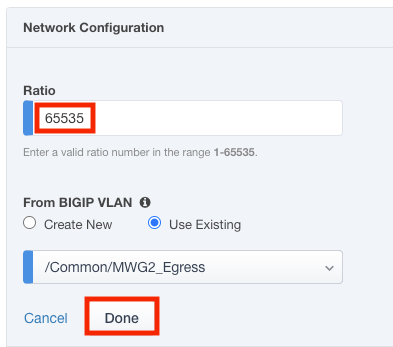

Set the ratio to 65535 and click Done.



Click Save & Next at the bottom.

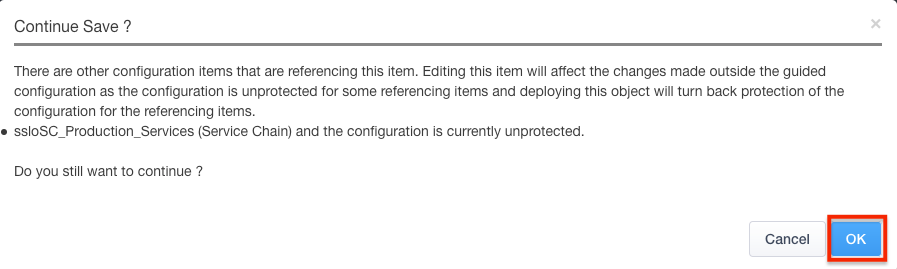

Click OK if presented with the following warning.

Click Deploy.

Click OK when presented with the Success message.

Check McAfee Web Gateway Statistics Again

Check the statistics on the McAfee Web Gateway device again. It’s “MWG1” in this example.  From the McAfee Web Gateway UI go to Troubleshooting > Packet tracing.  I set the Command line parameters to “-I ibr0” which will capture all packets on the bridge interface.

It should look like the following:

Note: The connections above represent the health checks from SSL Orchestrator to the inline Service. Therefore, this McAfee Web Gateway is not actively processing connections.

Remove a single McAfee Web Gateway device from the Service

Back to the SSL Orchestrator Configuration Utility.  Click SSL Orchestrator > Configuration > Services > then the Service name, ssloS_McAfeeWebGateway in this example.

Click the pencil icon to edit the Service.

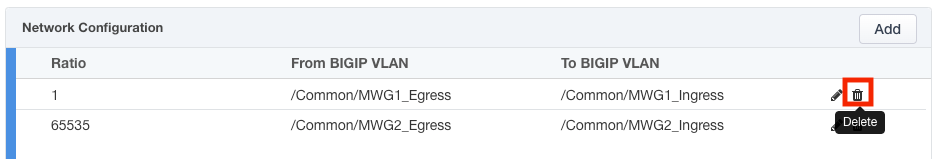

Under Network Configuration, delete MWG1.

Click Save & Next at the bottom.

Click OK if presented with the following warning.

Click Deploy.

Click OK when presented with the Success message.

Click HERE for Part 2 of the article

Related Articles

Integrating SSL Orchestrator with McAfee Web Gateway-Explicit Proxy

Updated May 17, 2023
Version 4.0
No CommentsBe the first to comment
"}},"componentScriptGroups({\"componentId\":\"custom.widget.Beta_MetaNav\"})":{"__typename":"ComponentScriptGroups","scriptGroups":{"__typename":"ComponentScriptGroupsDefinition","afterInteractive":{"__typename":"PageScriptGroupDefinition","group":"AFTER_INTERACTIVE","scriptIds":[]},"lazyOnLoad":{"__typename":"PageScriptGroupDefinition","group":"LAZY_ON_LOAD","scriptIds":[]}},"componentScripts":[]},"component({\"componentId\":\"custom.widget.Beta_Footer\"})":{"__typename":"Component","render({\"context\":{\"component\":{\"entities\":[],\"props\":{}},\"page\":{\"entities\":[\"message:303455\"],\"name\":\"TkbMessagePage\",\"props\":{},\"url\":\"https://community.f5.com/kb/technicalarticles/verified-design-ssl-orchestrator-with-mcafee-web-gateway-part-1/303455\"}}})":{"__typename":"ComponentRenderResult","html":"






\"F5 ©2024 F5, Inc. All rights reserved.
Trademarks Policies Privacy California Privacy Do Not Sell My Personal Information
"}},"componentScriptGroups({\"componentId\":\"custom.widget.Beta_Footer\"})":{"__typename":"ComponentScriptGroups","scriptGroups":{"__typename":"ComponentScriptGroupsDefinition","afterInteractive":{"__typename":"PageScriptGroupDefinition","group":"AFTER_INTERACTIVE","scriptIds":[]},"lazyOnLoad":{"__typename":"PageScriptGroupDefinition","group":"LAZY_ON_LOAD","scriptIds":[]}},"componentScripts":[]},"component({\"componentId\":\"custom.widget.Tag_Manager_Helper\"})":{"__typename":"Component","render({\"context\":{\"component\":{\"entities\":[],\"props\":{}},\"page\":{\"entities\":[\"message:303455\"],\"name\":\"TkbMessagePage\",\"props\":{},\"url\":\"https://community.f5.com/kb/technicalarticles/verified-design-ssl-orchestrator-with-mcafee-web-gateway-part-1/303455\"}}})":{"__typename":"ComponentRenderResult","html":" "}},"componentScriptGroups({\"componentId\":\"custom.widget.Tag_Manager_Helper\"})":{"__typename":"ComponentScriptGroups","scriptGroups":{"__typename":"ComponentScriptGroupsDefinition","afterInteractive":{"__typename":"PageScriptGroupDefinition","group":"AFTER_INTERACTIVE","scriptIds":[]},"lazyOnLoad":{"__typename":"PageScriptGroupDefinition","group":"LAZY_ON_LOAD","scriptIds":[]}},"componentScripts":[]},"component({\"componentId\":\"custom.widget.Consent_Blackbar\"})":{"__typename":"Component","render({\"context\":{\"component\":{\"entities\":[],\"props\":{}},\"page\":{\"entities\":[\"message:303455\"],\"name\":\"TkbMessagePage\",\"props\":{},\"url\":\"https://community.f5.com/kb/technicalarticles/verified-design-ssl-orchestrator-with-mcafee-web-gateway-part-1/303455\"}}})":{"__typename":"ComponentRenderResult","html":"
"}},"componentScriptGroups({\"componentId\":\"custom.widget.Consent_Blackbar\"})":{"__typename":"ComponentScriptGroups","scriptGroups":{"__typename":"ComponentScriptGroupsDefinition","afterInteractive":{"__typename":"PageScriptGroupDefinition","group":"AFTER_INTERACTIVE","scriptIds":[]},"lazyOnLoad":{"__typename":"PageScriptGroupDefinition","group":"LAZY_ON_LOAD","scriptIds":[]}},"componentScripts":[]},"cachedText({\"lastModified\":\"1744046271000\",\"locale\":\"en-US\",\"namespaces\":[\"shared/client/components/common/QueryHandler\"]})":[{"__ref":"CachedAsset:text:en_US-shared/client/components/common/QueryHandler-1744046271000"}],"cachedText({\"lastModified\":\"1744046271000\",\"locale\":\"en-US\",\"namespaces\":[\"components/community/NavbarDropdownToggle\"]})":[{"__ref":"CachedAsset:text:en_US-components/community/NavbarDropdownToggle-1744046271000"}],"cachedText({\"lastModified\":\"1744046271000\",\"locale\":\"en-US\",\"namespaces\":[\"components/messages/MessageSubject\"]})":[{"__ref":"CachedAsset:text:en_US-components/messages/MessageSubject-1744046271000"}],"cachedText({\"lastModified\":\"1744046271000\",\"locale\":\"en-US\",\"namespaces\":[\"components/messages/MessageBody\"]})":[{"__ref":"CachedAsset:text:en_US-components/messages/MessageBody-1744046271000"}],"cachedText({\"lastModified\":\"1744046271000\",\"locale\":\"en-US\",\"namespaces\":[\"components/messages/MessageCustomFields\"]})":[{"__ref":"CachedAsset:text:en_US-components/messages/MessageCustomFields-1744046271000"}],"cachedText({\"lastModified\":\"1744046271000\",\"locale\":\"en-US\",\"namespaces\":[\"components/messages/MessageRevision\"]})":[{"__ref":"CachedAsset:text:en_US-components/messages/MessageRevision-1744046271000"}],"cachedText({\"lastModified\":\"1744046271000\",\"locale\":\"en-US\",\"namespaces\":[\"components/messages/MessageReplyButton\"]})":[{"__ref":"CachedAsset:text:en_US-components/messages/MessageReplyButton-1744046271000"}],"cachedText({\"lastModified\":\"1744046271000\",\"locale\":\"en-US\",\"namespaces\":[\"components/messages/MessageAuthorBio\"]})":[{"__ref":"CachedAsset:text:en_US-components/messages/MessageAuthorBio-1744046271000"}],"cachedText({\"lastModified\":\"1744046271000\",\"locale\":\"en-US\",\"namespaces\":[\"components/guides/GuideBottomNavigation\"]})":[{"__ref":"CachedAsset:text:en_US-components/guides/GuideBottomNavigation-1744046271000"}],"cachedText({\"lastModified\":\"1744046271000\",\"locale\":\"en-US\",\"namespaces\":[\"components/tags/TagView/TagViewChip\"]})":[{"__ref":"CachedAsset:text:en_US-components/tags/TagView/TagViewChip-1744046271000"}],"cachedText({\"lastModified\":\"1744046271000\",\"locale\":\"en-US\",\"namespaces\":[\"components/users/UserLink\"]})":[{"__ref":"CachedAsset:text:en_US-components/users/UserLink-1744046271000"}],"cachedText({\"lastModified\":\"1744046271000\",\"locale\":\"en-US\",\"namespaces\":[\"shared/client/components/users/UserRank\"]})":[{"__ref":"CachedAsset:text:en_US-shared/client/components/users/UserRank-1744046271000"}],"cachedText({\"lastModified\":\"1744046271000\",\"locale\":\"en-US\",\"namespaces\":[\"components/users/UserRegistrationDate\"]})":[{"__ref":"CachedAsset:text:en_US-components/users/UserRegistrationDate-1744046271000"}],"cachedText({\"lastModified\":\"1744046271000\",\"locale\":\"en-US\",\"namespaces\":[\"components/customComponent/CustomComponent\"]})":[{"__ref":"CachedAsset:text:en_US-components/customComponent/CustomComponent-1744046271000"}],"cachedText({\"lastModified\":\"1744046271000\",\"locale\":\"en-US\",\"namespaces\":[\"shared/client/components/users/UserAvatar\"]})":[{"__ref":"CachedAsset:text:en_US-shared/client/components/users/UserAvatar-1744046271000"}],"cachedText({\"lastModified\":\"1744046271000\",\"locale\":\"en-US\",\"namespaces\":[\"shared/client/components/ranks/UserRankLabel\"]})":[{"__ref":"CachedAsset:text:en_US-shared/client/components/ranks/UserRankLabel-1744046271000"}]},"Theme:customTheme1":{"__typename":"Theme","id":"customTheme1"},"User:user:-1":{"__typename":"User","id":"user:-1","uid":-1,"login":"Former Member","email":"","avatar":null,"rank":null,"kudosWeight":1,"registrationData":{"__typename":"RegistrationData","status":"ANONYMOUS","registrationTime":null,"confirmEmailStatus":false,"registrationAccessLevel":"VIEW","ssoRegistrationFields":[]},"ssoId":null,"profileSettings":{"__typename":"ProfileSettings","dateDisplayStyle":{"__typename":"InheritableStringSettingWithPossibleValues","key":"layout.friendly_dates_enabled","value":"false","localValue":"true","possibleValues":["true","false"]},"dateDisplayFormat":{"__typename":"InheritableStringSetting","key":"layout.format_pattern_date","value":"dd-MMM-yyyy","localValue":"MM-dd-yyyy"},"language":{"__typename":"InheritableStringSettingWithPossibleValues","key":"profile.language","value":"en-US","localValue":null,"possibleValues":["en-US","de-DE"]},"repliesSortOrder":{"__typename":"InheritableStringSettingWithPossibleValues","key":"config.user_replies_sort_order","value":"DEFAULT","localValue":"DEFAULT","possibleValues":["DEFAULT","LIKES","PUBLISH_TIME","REVERSE_PUBLISH_TIME"]}},"deleted":false},"CachedAsset:pages-1746693049844":{"__typename":"CachedAsset","id":"pages-1746693049844","value":[{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"HowDoI.GetInvolved.MvpProgram","type":"COMMUNITY","urlPath":"/c/how-do-i/get-involved/mvp-program","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"BlogViewAllPostsPage","type":"BLOG","urlPath":"/category/:categoryId/blog/:boardId/all-posts/(/:after|/:before)?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"CasePortalPage","type":"CASE_PORTAL","urlPath":"/caseportal","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"CreateGroupHubPage","type":"GROUP_HUB","urlPath":"/groups/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"CaseViewPage","type":"CASE_DETAILS","urlPath":"/case/:caseId/:caseNumber","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"InboxPage","type":"COMMUNITY","urlPath":"/inbox","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"HowDoI.GetInvolved.AdvocacyProgram","type":"COMMUNITY","urlPath":"/c/how-do-i/get-involved/advocacy-program","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"HowDoI.GetHelp.NonCustomer","type":"COMMUNITY","urlPath":"/c/how-do-i/get-help/non-customer","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"HelpFAQPage","type":"COMMUNITY","urlPath":"/help","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"HowDoI.GetHelp.F5Customer","type":"COMMUNITY","urlPath":"/c/how-do-i/get-help/f5-customer","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"IdeaMessagePage","type":"IDEA_POST","urlPath":"/idea/:boardId/:messageSubject/:messageId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"IdeaViewAllIdeasPage","type":"IDEA","urlPath":"/category/:categoryId/ideas/:boardId/all-ideas/(/:after|/:before)?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"LoginPage","type":"USER","urlPath":"/signin","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"BlogPostPage","type":"BLOG","urlPath":"/category/:categoryId/blogs/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"HowDoI.GetInvolved","type":"COMMUNITY","urlPath":"/c/how-do-i/get-involved","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"HowDoI.Learn","type":"COMMUNITY","urlPath":"/c/how-do-i/learn","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1739501996000,"localOverride":null,"page":{"id":"Test","type":"CUSTOM","urlPath":"/custom-test-2","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"ThemeEditorPage","type":"COMMUNITY","urlPath":"/designer/themes","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"TkbViewAllArticlesPage","type":"TKB","urlPath":"/category/:categoryId/kb/:boardId/all-articles/(/:after|/:before)?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"OccasionEditPage","type":"EVENT","urlPath":"/event/:boardId/:messageSubject/:messageId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"OAuthAuthorizationAllowPage","type":"USER","urlPath":"/auth/authorize/allow","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"PageEditorPage","type":"COMMUNITY","urlPath":"/designer/pages","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"PostPage","type":"COMMUNITY","urlPath":"/category/:categoryId/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"ForumBoardPage","type":"FORUM","urlPath":"/category/:categoryId/discussions/:boardId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"TkbBoardPage","type":"TKB","urlPath":"/category/:categoryId/kb/:boardId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"EventPostPage","type":"EVENT","urlPath":"/category/:categoryId/events/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"UserBadgesPage","type":"COMMUNITY","urlPath":"/users/:login/:userId/badges","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"GroupHubMembershipAction","type":"GROUP_HUB","urlPath":"/membership/join/:nodeId/:membershipType","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"MaintenancePage","type":"COMMUNITY","urlPath":"/maintenance","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"IdeaReplyPage","type":"IDEA_REPLY","urlPath":"/idea/:boardId/:messageSubject/:messageId/comments/:replyId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"UserSettingsPage","type":"USER","urlPath":"/mysettings/:userSettingsTab","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"GroupHubsPage","type":"GROUP_HUB","urlPath":"/groups","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"ForumPostPage","type":"FORUM","urlPath":"/category/:categoryId/discussions/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"OccasionRsvpActionPage","type":"OCCASION","urlPath":"/event/:boardId/:messageSubject/:messageId/rsvp/:responseType","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"VerifyUserEmailPage","type":"USER","urlPath":"/verifyemail/:userId/:verifyEmailToken","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"AllOccasionsPage","type":"OCCASION","urlPath":"/category/:categoryId/events/:boardId/all-events/(/:after|/:before)?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"EventBoardPage","type":"EVENT","urlPath":"/category/:categoryId/events/:boardId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"TkbReplyPage","type":"TKB_REPLY","urlPath":"/kb/:boardId/:messageSubject/:messageId/comments/:replyId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"IdeaBoardPage","type":"IDEA","urlPath":"/category/:categoryId/ideas/:boardId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"CommunityGuideLinesPage","type":"COMMUNITY","urlPath":"/communityguidelines","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"CaseCreatePage","type":"SALESFORCE_CASE_CREATION","urlPath":"/caseportal/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"TkbEditPage","type":"TKB","urlPath":"/kb/:boardId/:messageSubject/:messageId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"ForgotPasswordPage","type":"USER","urlPath":"/forgotpassword","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"IdeaEditPage","type":"IDEA","urlPath":"/idea/:boardId/:messageSubject/:messageId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"TagPage","type":"COMMUNITY","urlPath":"/tag/:tagName","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"BlogBoardPage","type":"BLOG","urlPath":"/category/:categoryId/blog/:boardId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"OccasionMessagePage","type":"OCCASION_TOPIC","urlPath":"/event/:boardId/:messageSubject/:messageId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"ManageContentPage","type":"COMMUNITY","urlPath":"/managecontent","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"ClosedMembershipNodeNonMembersPage","type":"GROUP_HUB","urlPath":"/closedgroup/:groupHubId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"HowDoI.GetHelp.Community","type":"COMMUNITY","urlPath":"/c/how-do-i/get-help/community","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"CommunityPage","type":"COMMUNITY","urlPath":"/","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"HowDoI.GetInvolved.ContributeCode","type":"COMMUNITY","urlPath":"/c/how-do-i/get-involved/contribute-code","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"ForumMessagePage","type":"FORUM_TOPIC","urlPath":"/discussions/:boardId/:messageSubject/:messageId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"IdeaPostPage","type":"IDEA","urlPath":"/category/:categoryId/ideas/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"BlogMessagePage","type":"BLOG_ARTICLE","urlPath":"/blog/:boardId/:messageSubject/:messageId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"RegistrationPage","type":"USER","urlPath":"/register","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"EditGroupHubPage","type":"GROUP_HUB","urlPath":"/group/:groupHubId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"ForumEditPage","type":"FORUM","urlPath":"/discussions/:boardId/:messageSubject/:messageId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"ResetPasswordPage","type":"USER","urlPath":"/resetpassword/:userId/:resetPasswordToken","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"TkbMessagePage","type":"TKB_ARTICLE","urlPath":"/kb/:boardId/:messageSubject/:messageId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"HowDoI.Learn.AboutIrules","type":"COMMUNITY","urlPath":"/c/how-do-i/learn/about-irules","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"BlogEditPage","type":"BLOG","urlPath":"/blog/:boardId/:messageSubject/:messageId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"HowDoI.GetHelp.F5Support","type":"COMMUNITY","urlPath":"/c/how-do-i/get-help/f5-support","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"ManageUsersPage","type":"USER","urlPath":"/users/manage/:tab?/:manageUsersTab?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"ForumReplyPage","type":"FORUM_REPLY","urlPath":"/discussions/:boardId/:messageSubject/:messageId/replies/:replyId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"PrivacyPolicyPage","type":"COMMUNITY","urlPath":"/privacypolicy","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"NotificationPage","type":"COMMUNITY","urlPath":"/notifications","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"UserPage","type":"USER","urlPath":"/users/:login/:userId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"HealthCheckPage","type":"COMMUNITY","urlPath":"/health","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"OccasionReplyPage","type":"OCCASION_REPLY","urlPath":"/event/:boardId/:messageSubject/:messageId/comments/:replyId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"ManageMembersPage","type":"GROUP_HUB","urlPath":"/group/:groupHubId/manage/:tab?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"SearchResultsPage","type":"COMMUNITY","urlPath":"/search","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"BlogReplyPage","type":"BLOG_REPLY","urlPath":"/blog/:boardId/:messageSubject/:messageId/replies/:replyId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"GroupHubPage","type":"GROUP_HUB","urlPath":"/group/:groupHubId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"TermsOfServicePage","type":"COMMUNITY","urlPath":"/termsofservice","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"HowDoI.GetHelp","type":"COMMUNITY","urlPath":"/c/how-do-i/get-help","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"HowDoI.GetHelp.SecurityIncident","type":"COMMUNITY","urlPath":"/c/how-do-i/get-help/security-incident","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"CategoryPage","type":"CATEGORY","urlPath":"/category/:categoryId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"ForumViewAllTopicsPage","type":"FORUM","urlPath":"/category/:categoryId/discussions/:boardId/all-topics/(/:after|/:before)?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"TkbPostPage","type":"TKB","urlPath":"/category/:categoryId/kbs/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"GroupHubPostPage","type":"GROUP_HUB","urlPath":"/group/:groupHubId/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746693049844,"localOverride":null,"page":{"id":"HowDoI","type":"COMMUNITY","urlPath":"/c/how-do-i","__typename":"PageDescriptor"},"__typename":"PageResource"}],"localOverride":false},"CachedAsset:text:en_US-components/context/AppContext/AppContextProvider-0":{"__typename":"CachedAsset","id":"text:en_US-components/context/AppContext/AppContextProvider-0","value":{"noCommunity":"Cannot find community","noUser":"Cannot find current user","noNode":"Cannot find node with id {nodeId}","noMessage":"Cannot find message with id {messageId}","userBanned":"We're sorry, but you have been banned from using this site.","userBannedReason":"You have been banned for the following reason: {reason}"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/common/Loading/LoadingDot-0":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/common/Loading/LoadingDot-0","value":{"title":"Loading..."},"localOverride":false},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/cmstMjgtQ3U0RXo2\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/cmstMjgtQ3U0RXo2","height":0,"width":0,"mimeType":"image/svg+xml"},"Rank:rank:28":{"__typename":"Rank","id":"rank:28","position":5,"name":"Employee","color":"C20025","icon":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/cmstMjgtQ3U0RXo2\"}"},"rankStyle":"OUTLINE"},"User:user:129415":{"__typename":"User","id":"user:129415","uid":129415,"login":"KevinGallaugher","deleted":false,"avatar":{"__typename":"UserAvatar","url":"https://community.f5.com/t5/s/zihoc95639/images/dS0xMjk0MTUtNU4zOHUz?image-coordinates=0%2C0%2C360%2C360"},"rank":{"__ref":"Rank:rank:28"},"email":"","messagesCount":86,"biography":null,"topicsCount":65,"kudosReceivedCount":97,"kudosGivenCount":1,"kudosWeight":1,"registrationData":{"__typename":"RegistrationData","status":null,"registrationTime":"2019-11-15T14:29:31.000-08:00","confirmEmailStatus":null},"followersCount":null,"solutionsCount":0},"Category:category:Articles":{"__typename":"Category","id":"category:Articles","entityType":"CATEGORY","displayId":"Articles","nodeType":"category","depth":1,"title":"Articles","shortTitle":"Articles","parent":{"__ref":"Category:category:top"},"categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:top":{"__typename":"Category","id":"category:top","entityType":"CATEGORY","displayId":"top","nodeType":"category","depth":0,"title":"Top","shortTitle":"Top"},"Tkb:board:TechnicalArticles":{"__typename":"Tkb","id":"board:TechnicalArticles","entityType":"TKB","displayId":"TechnicalArticles","nodeType":"board","depth":2,"conversationStyle":"TKB","repliesProperties":{"__typename":"RepliesProperties","sortOrder":"PUBLISH_TIME","repliesFormat":"threaded"},"tagProperties":{"__typename":"TagNodeProperties","tagsEnabled":{"__typename":"PolicyResult","failureReason":null}},"requireTags":true,"tagType":"FREEFORM_AND_PRESET","description":"F5 SMEs share good practice.","title":"Technical Articles","shortTitle":"Technical Articles","parent":{"__ref":"Category:category:Articles"},"ancestors":{"__typename":"CoreNodeConnection","edges":[{"__typename":"CoreNodeEdge","node":{"__ref":"Community:community:zihoc95639"}},{"__typename":"CoreNodeEdge","node":{"__ref":"Category:category:Articles"}}]},"userContext":{"__typename":"NodeUserContext","canAddAttachments":false,"canUpdateNode":false,"canPostMessages":false,"isSubscribed":false},"theme":{"__ref":"Theme:customTheme1"},"boardPolicies":{"__typename":"BoardPolicies","canViewSpamDashBoard":{"__typename":"PolicyResult","failureReason":{"__typename":"FailureReason","message":"error.lithium.policies.feature.moderation_spam.action.access_spam_quarantine.allowed.accessDenied","key":"error.lithium.policies.feature.moderation_spam.action.access_spam_quarantine.allowed.accessDenied","args":[]}},"canArchiveMessage":{"__typename":"PolicyResult","failureReason":{"__typename":"FailureReason","message":"error.lithium.policies.content_archivals.enable_content_archival_settings.accessDenied","key":"error.lithium.policies.content_archivals.enable_content_archival_settings.accessDenied","args":[]}},"canPublishArticleOnCreate":{"__typename":"PolicyResult","failureReason":{"__typename":"FailureReason","message":"error.lithium.policies.forums.policy_can_publish_on_create_workflow_action.accessDenied","key":"error.lithium.policies.forums.policy_can_publish_on_create_workflow_action.accessDenied","args":[]}},"canReadNode":{"__typename":"PolicyResult","failureReason":null}},"isManualSortOrderAvailable":false,"tkbPolicies":{"__typename":"TkbPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"TkbTopicMessage:message:303455":{"__typename":"TkbTopicMessage","uid":303455,"subject":"Verified Design: SSL Orchestrator with McAfee Web Gateway-Part 1","id":"message:303455","revisionNum":11,"repliesCount":0,"author":{"__ref":"User:user:129415"},"depth":0,"hasGivenKudo":false,"helpful":null,"board":{"__ref":"Tkb:board:TechnicalArticles"},"conversation":{"__ref":"Conversation:conversation:303455"},"messagePolicies":{"__typename":"MessagePolicies","canPublishArticleOnEdit":{"__typename":"PolicyResult","failureReason":{"__typename":"FailureReason","message":"error.lithium.policies.forums.policy_can_publish_on_edit_workflow_action.accessDenied","key":"error.lithium.policies.forums.policy_can_publish_on_edit_workflow_action.accessDenied","args":[]}},"canModerateSpamMessage":{"__typename":"PolicyResult","failureReason":{"__typename":"FailureReason","message":"error.lithium.policies.feature.moderation_spam.action.moderate_entity.allowed.accessDenied","key":"error.lithium.policies.feature.moderation_spam.action.moderate_entity.allowed.accessDenied","args":[]}}},"contentWorkflow":{"__typename":"ContentWorkflow","state":"PUBLISH","scheduledPublishTime":null,"scheduledTimezone":null,"userContext":{"__typename":"MessageWorkflowContext","canSubmitForReview":null,"canEdit":false,"canRecall":null,"canSubmitForPublication":null,"canReturnToAuthor":null,"canPublish":null,"canReturnToReview":null,"canSchedule":false},"shortScheduledTimezone":null},"readOnly":false,"editFrozen":false,"moderationData":{"__ref":"ModerationData:moderation_data:303455"},"teaser":"","body":"
\n

Summary

\n

This article is part of a series on implementing Orchestrated Infrastructure Security. It includes High Availability and the protection of critical assets using McAfee Web Gateway.  It is assumed that SSL Orchestrator is already deployed, and basic network connectivity is working.

\n

If you need help setting up SSL Orchestrator for the first time, refer to the Dev/Central article series on Implementing SSL Orchestrator here or the CloudDocs Deployment Guide here.

\n

This article focuses on using SSL Orchestrator as a tool to assist with simplifying Change Management processes, procedures and shortening the duration of the entire process.

\n

Configuration files of McAfee Web Gateway can be downloaded from here from GitLab.

\n

Please forgive me for using SSL and TLS interchangeably in this article.

\n

A video demo of this Dev/Central article is available HERE

\n

This article is divided into the following high level sections:

\n

Part1 (Available here)

\n\n

Part 2 (Available here)

\n\n

Configure McAfee Web Gateway (MWG) interfaces

\n

From the MWG UI navigate to Configuration > Appliances > Proxies.  Under Network Setup select Transparent bridge.

\n

\n

Click Save Changes on the top right

\n

\n

Navigate to Network interfaces. In this example eth2 and eth3 will be used to create the Transparent bridge. Both interfaces need to be enabled and the IP settings must be disabled for IPv4 and IPv6.

\n

\n

On the Advanced tab enable the bridge and give it a name, ibr0 in this example. Do this for both interfaces.

\n

\n

Save changes

\n

\n

Check ibr0 and set it to enabled.  Disable IPv4 and IPv6

\n

\n

Click Save Changes

\n

\n

Note: complete these steps on the 2nd McAfee Web Gateway

\n

Note: when configuring for High Availability you will need to create a 2nd Transparent bridge

\n

Please contact McAfee for assistance if needed

\n

Create a new Topology to perform testing

\n

A new Topology will be used to safely test the Service after maintenance is performed.  The Topology should be similar to the one used for production traffic.  This Topology can be re-used in the future.

\n

From the BIG-IP Configuration Utility select SSL Orchestrator > Configuration.  Click Add under Topologies.

\n

\n

Scroll to the bottom of the next screen and click Next.

\n

\n

Give it a name, Topology_Staging in this example.

\n

\n

Select L2 Outbound as the Topology type then click Save & Next.

\n

\n

\n

For the SSL Configurations you can leave the default settings.  Click Save & Next at the bottom.

\n

\n

Click Save & Next at the bottom of the Services List.

\n

\n

Click the Add button under Services Chain List.  A new Service Chain is needed so we can remove McAfee Web Gateway from the Production Service and add it here.

\n

\n

Give the Service Chain a name, Staging_Chain in this example.  Click Save at the bottom.

\n

\n

Note: The Service will be added to this Service Chain later.

\n

Click Save & Next

\n

\n

Click the Add button on the right to add a new rule.

\n

\n

For Conditions select Client IP Subnet Match.

\n

\n

Enter the Client IP and mask, 10.5.9.51/32 in this example.  Click New to add the IP/Subnet.

\n

\n

Set the SSL Proxy Action to Intercept.

\n

\n

Set the Service Chain to the one created previously.

\n

\n

Click OK.

\n

\n

Note: This rule is written so that a single client computer (10.5.9.51) will match and can be used for testing.  In the All Traffic default rule set the SSL Proxy Action to Bypass.

\n

\n

Select Save & Next at the bottom.

\n

\n

For the Interception Rule set the Source Address to 10.5.9.51/32.  Set the Destination Address/Mask to 10.4.11.0/24.  Set the port to 443.

\n

\n

Select the VLAN for your Ingress Network and move it to Selected.

\n

\n

Set the L7 Profile to Common/http.

\n

\n

Click Save & Next.

\n

\n

For Log Settings, scroll to the bottom and select Save & Next.

\n

\n

Click Deploy.

\n

\n

Monitor McAfee Web Gateway statistics – change the weight ratio – check McAfee Web Gateway statistics again

\n

Check the statistics on the McAfee Web Gateway device we will be performing maintenance on.  It’s “MWG1” in this example. One way to do this is with a packet trace. From the McAfee Web Gateway UI go to Troubleshooting > Packet tracing. I set the Command line parameters to “-I ibr0” which will capture all packets on the bridge interface.

\n

\n

Note: This McAfee Web Gateway device is actively processing connections. Note the connections are in clear text, HTTP on port 80. SSL Orchestrator decrypted the SSL/TLS and sent it to the McAfee device for inspection.

\n

Change the Weight Ratio

\n

Back to the SSL Orchestrator Configuration Utility.  Click SSL Orchestrator > Configuration > Services > then the Service name, ssloS_McAfeeWebGateway in this example.

\n

\n

Click the pencil icon to edit the Service.

\n

\n

Click the pencil icon to edit the Network Configuration for MWG2

\n

\n

Set the ratio to 65535 and click Done.

\n



\n

Click Save & Next at the bottom.

\n

\n

Click OK if presented with the following warning.

\n

\n

Click Deploy.

\n

\n

Click OK when presented with the Success message.

\n

\n

Check McAfee Web Gateway Statistics Again

\n

Check the statistics on the McAfee Web Gateway device again. It’s “MWG1” in this example.  From the McAfee Web Gateway UI go to Troubleshooting > Packet tracing.  I set the Command line parameters to “-I ibr0” which will capture all packets on the bridge interface.

\n

It should look like the following:

\n

\n

Note: The connections above represent the health checks from SSL Orchestrator to the inline Service. Therefore, this McAfee Web Gateway is not actively processing connections.

\n

Remove a single McAfee Web Gateway device from the Service

\n

Back to the SSL Orchestrator Configuration Utility.  Click SSL Orchestrator > Configuration > Services > then the Service name, ssloS_McAfeeWebGateway in this example.

\n

\n

Click the pencil icon to edit the Service.

\n

\n

Under Network Configuration, delete MWG1.

\n

\n

Click Save & Next at the bottom.

\n

\n

Click OK if presented with the following warning.

\n

\n

Click Deploy.

\n

\n

Click OK when presented with the Success message.

\n

\n

Click HERE for Part 2 of the article

\n

Related Articles

\n

Integrating SSL Orchestrator with McAfee Web Gateway-Explicit Proxy

\n
","body@stringLength":"33658","rawBody":"
\n

Summary

\n

This article is part of a series on implementing Orchestrated Infrastructure Security. It includes High Availability and the protection of critical assets using McAfee Web Gateway.  It is assumed that SSL Orchestrator is already deployed, and basic network connectivity is working.

\n

If you need help setting up SSL Orchestrator for the first time, refer to the Dev/Central article series on Implementing SSL Orchestrator here or the CloudDocs Deployment Guide here.

\n

This article focuses on using SSL Orchestrator as a tool to assist with simplifying Change Management processes, procedures and shortening the duration of the entire process.

\n

Configuration files of McAfee Web Gateway can be downloaded from here from GitLab.

\n

Please forgive me for using SSL and TLS interchangeably in this article.

\n

A video demo of this Dev/Central article is available HERE

\n

This article is divided into the following high level sections:

\n

Part1 (Available here)

\n\n

Part 2 (Available here)

\n\n

Configure McAfee Web Gateway (MWG) interfaces

\n

From the MWG UI navigate to Configuration > Appliances > Proxies.  Under Network Setup select Transparent bridge.

\n

\n

Click Save Changes on the top right

\n

\n

Navigate to Network interfaces. In this example eth2 and eth3 will be used to create the Transparent bridge. Both interfaces need to be enabled and the IP settings must be disabled for IPv4 and IPv6.

\n

\n

On the Advanced tab enable the bridge and give it a name, ibr0 in this example. Do this for both interfaces.

\n

\n

Save changes

\n

\n

Check ibr0 and set it to enabled.  Disable IPv4 and IPv6

\n

\n

Click Save Changes

\n

\n

Note: complete these steps on the 2nd McAfee Web Gateway

\n

Note: when configuring for High Availability you will need to create a 2nd Transparent bridge

\n

Please contact McAfee for assistance if needed

\n

Create a new Topology to perform testing

\n

A new Topology will be used to safely test the Service after maintenance is performed.  The Topology should be similar to the one used for production traffic.  This Topology can be re-used in the future.

\n

From the BIG-IP Configuration Utility select SSL Orchestrator > Configuration.  Click Add under Topologies.

\n

\n

Scroll to the bottom of the next screen and click Next.

\n

\n

Give it a name, Topology_Staging in this example.

\n

\n

Select L2 Outbound as the Topology type then click Save & Next.

\n

\n

\n

For the SSL Configurations you can leave the default settings.  Click Save & Next at the bottom.

\n

\n

Click Save & Next at the bottom of the Services List.

\n

\n

Click the Add button under Services Chain List.  A new Service Chain is needed so we can remove McAfee Web Gateway from the Production Service and add it here.

\n

\n

Give the Service Chain a name, Staging_Chain in this example.  Click Save at the bottom.

\n

\n

Note: The Service will be added to this Service Chain later.

\n

Click Save & Next

\n

\n

Click the Add button on the right to add a new rule.

\n

\n

For Conditions select Client IP Subnet Match.

\n

\n

Enter the Client IP and mask, 10.5.9.51/32 in this example.  Click New to add the IP/Subnet.

\n

\n

Set the SSL Proxy Action to Intercept.

\n

\n

Set the Service Chain to the one created previously.

\n

\n

Click OK.

\n

\n

Note: This rule is written so that a single client computer (10.5.9.51) will match and can be used for testing.  In the All Traffic default rule set the SSL Proxy Action to Bypass.

\n

\n

Select Save & Next at the bottom.

\n

\n

For the Interception Rule set the Source Address to 10.5.9.51/32.  Set the Destination Address/Mask to 10.4.11.0/24.  Set the port to 443.

\n

\n

Select the VLAN for your Ingress Network and move it to Selected.

\n

\n

Set the L7 Profile to Common/http.

\n

\n

Click Save & Next.

\n

\n

For Log Settings, scroll to the bottom and select Save & Next.

\n

\n

Click Deploy.

\n

\n

Monitor McAfee Web Gateway statistics – change the weight ratio – check McAfee Web Gateway statistics again

\n

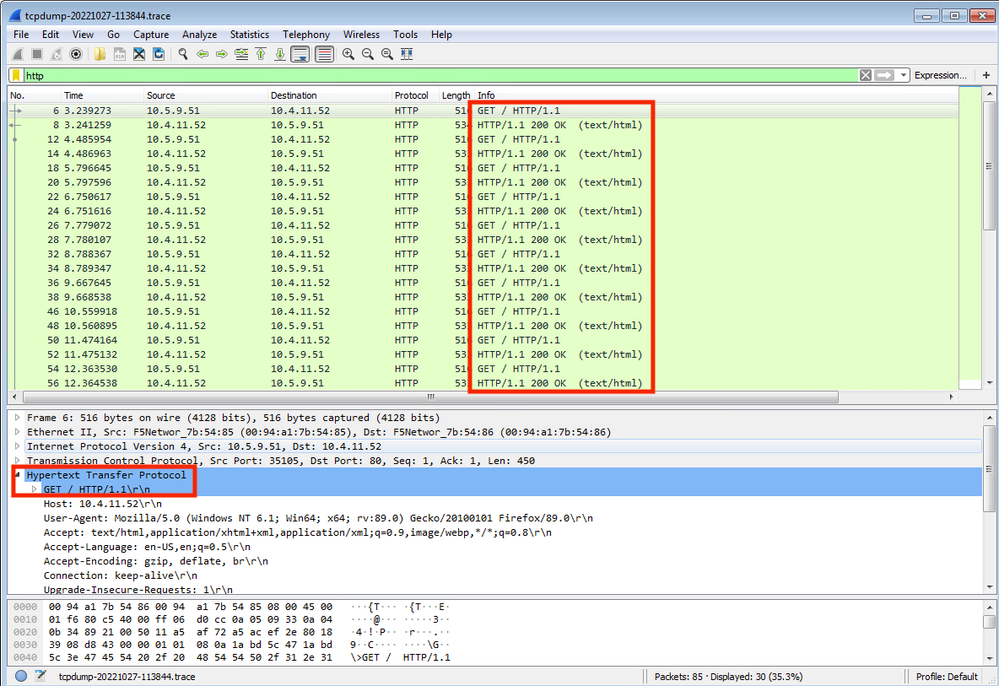

Check the statistics on the McAfee Web Gateway device we will be performing maintenance on.  It’s “MWG1” in this example. One way to do this is with a packet trace. From the McAfee Web Gateway UI go to Troubleshooting > Packet tracing. I set the Command line parameters to “-I ibr0” which will capture all packets on the bridge interface.

\n

\n

Note: This McAfee Web Gateway device is actively processing connections. Note the connections are in clear text, HTTP on port 80. SSL Orchestrator decrypted the SSL/TLS and sent it to the McAfee device for inspection.

\n

Change the Weight Ratio

\n

Back to the SSL Orchestrator Configuration Utility.  Click SSL Orchestrator > Configuration > Services > then the Service name, ssloS_McAfeeWebGateway in this example.

\n

\n

Click the pencil icon to edit the Service.

\n

\n

Click the pencil icon to edit the Network Configuration for MWG2

\n

\n

Set the ratio to 65535 and click Done.

\n



\n

Click Save & Next at the bottom.

\n

\n

Click OK if presented with the following warning.

\n

\n

Click Deploy.

\n

\n

Click OK when presented with the Success message.

\n

\n

Check McAfee Web Gateway Statistics Again

\n

Check the statistics on the McAfee Web Gateway device again. It’s “MWG1” in this example.  From the McAfee Web Gateway UI go to Troubleshooting > Packet tracing.  I set the Command line parameters to “-I ibr0” which will capture all packets on the bridge interface.

\n

It should look like the following:

\n

\n

Note: The connections above represent the health checks from SSL Orchestrator to the inline Service. Therefore, this McAfee Web Gateway is not actively processing connections.

\n

Remove a single McAfee Web Gateway device from the Service

\n

Back to the SSL Orchestrator Configuration Utility.  Click SSL Orchestrator > Configuration > Services > then the Service name, ssloS_McAfeeWebGateway in this example.

\n

\n

Click the pencil icon to edit the Service.

\n

\n

Under Network Configuration, delete MWG1.

\n

\n

Click Save & Next at the bottom.

\n

\n

Click OK if presented with the following warning.

\n

\n

Click Deploy.

\n

\n

Click OK when presented with the Success message.

\n

\n

Click HERE for Part 2 of the article

\n

Related Articles

\n

Integrating SSL Orchestrator with McAfee Web Gateway-Explicit Proxy

\n
","kudosSumWeight":2,"postTime":"2022-11-15T05:00:00.038-08:00","images":{"__typename":"AssociatedImageConnection","edges":[{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDE","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA2NDZpQjg3MjJCRkVDOUEyNUREQQ?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDI","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA0MDVpRkJCMUI4NUUxMTY4NTFFNw?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDM","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA0MDZpMTc1QjIwQzY4RUUxMjY3Mg?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDQ","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA0MDdpQkY0QTA1RUM5MTlBOTI3RA?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDU","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA0MDhpMTk4RDk0QjlBMTdEMzY2RQ?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDY","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA0MDlpREE1MDU4MDA3MEFGODZGQQ?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDc","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA0MTBpOTFERTFFRkE4NDJFODg3Ng?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDg","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA0MTFpRUM4MEY4ODgzODBGRDcxRQ?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDk","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMDNpMjQ4OTZCRkZDNTUwQjI3Mg?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDEw","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMDRpM0IxNUNFRDFGNTlEQUIzOQ?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDEx","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMDVpQUY1MEI2OEQ1MDYxNzE0NQ?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDEy","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMDZpMzBCOEM0N0E1MENDQzQ2OA?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDEz","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMDhpMDY5REY3Mjc0RkNERDA3RA?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDE0","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMDdpQzNDRkM2OUE4RjJGOUE0OA?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDE1","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMDlpQjYyQjJFNkI2REE5QzQ4Rg?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDE2","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTBpMDk5RUIwMDg4MEI3NjFERg?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDE3","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTFpMTIzODUyQ0YzQUMzMjJDMA?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDE4","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTJpREQ3MUI4M0FFRkM3MjA3RA?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDE5","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTNpMDUyNkMwNTM3QkU1NUNDMw?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDIw","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTRpNUU3MTY4RDhFMDVGNThDRA?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDIx","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTVpQzExQUM0NTEzQjNDMkI4NA?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDIy","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTdpQTYzQTdDMDgzRTg0MzMwNg?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDIz","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMThpMURERTRCQ0E0MjY1NkYyMg?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDI0","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTZpODVGN0Q5NEI3OTMyRDAzMA?revision=11\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDI1","node":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMjBpNkIwOTNBMDUyQkYzMDdFMg?revision=11\"}"}}],"totalCount":49,"pageInfo":{"__typename":"PageInfo","hasNextPage":true,"endCursor":"MjUuM3wyLjF8b3wyNXxfTlZffDI1","hasPreviousPage":false,"startCursor":null}},"attachments":{"__typename":"AttachmentConnection","pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null},"edges":[]},"tags":{"__typename":"TagConnection","pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null},"edges":[{"__typename":"TagEdge","cursor":"MjUuM3wyLjF8b3wxMHxfTlZffDE","node":{"__typename":"Tag","id":"tag:BIG-IP SSL Orchestrator","text":"BIG-IP SSL Orchestrator","time":"2022-11-30T10:53:43.702-08:00","lastActivityTime":null,"messagesCount":null,"followersCount":null}},{"__typename":"TagEdge","cursor":"MjUuM3wyLjF8b3wxMHxfTlZffDI","node":{"__typename":"Tag","id":"tag:security","text":"security","time":"2009-07-03T08:19:36.000-07:00","lastActivityTime":null,"messagesCount":null,"followersCount":null}},{"__typename":"TagEdge","cursor":"MjUuM3wyLjF8b3wxMHxfTlZffDM","node":{"__typename":"Tag","id":"tag:series-big-ip-ssl-orchestrator","text":"series-big-ip-ssl-orchestrator","time":"2022-02-03T16:03:31.193-08:00","lastActivityTime":null,"messagesCount":null,"followersCount":null}},{"__typename":"TagEdge","cursor":"MjUuM3wyLjF8b3wxMHxfTlZffDQ","node":{"__typename":"Tag","id":"tag:series-orchestrated-infrastructure-security","text":"series-orchestrated-infrastructure-security","time":"2022-03-31T14:26:14.411-07:00","lastActivityTime":null,"messagesCount":null,"followersCount":null}}]},"timeToRead":5,"rawTeaser":"","introduction":"","currentRevision":{"__ref":"Revision:revision:303455_11"},"latestVersion":{"__typename":"FriendlyVersion","major":"4","minor":"0"},"metrics":{"__typename":"MessageMetrics","views":2058},"visibilityScope":"PUBLIC","canonicalUrl":null,"seoTitle":"Verified Design SSL Orchestrator with McAfee Web Gateway","seoDescription":"This article is part of a series on implementing Orchestrated Infrastructure Security. It includes High Availability and the protection of critical assets using McAfee Web Gateway. ","placeholder":false,"originalMessageForPlaceholder":null,"contributors":{"__typename":"UserConnection","edges":[]},"nonCoAuthorContributors":{"__typename":"UserConnection","edges":[]},"coAuthors":{"__typename":"UserConnection","edges":[]},"tkbMessagePolicies":{"__typename":"TkbMessagePolicies","canDoAuthoringActionsOnTkb":{"__typename":"PolicyResult","failureReason":{"__typename":"FailureReason","message":"error.lithium.policies.tkb.policy_can_do_authoring_action.accessDenied","key":"error.lithium.policies.tkb.policy_can_do_authoring_action.accessDenied","args":[]}}},"archivalData":null,"replies":{"__typename":"MessageConnection","edges":[],"pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null}},"customFields":[],"revisions({\"constraints\":{\"isPublished\":{\"eq\":true}},\"first\":1})":{"__typename":"RevisionConnection","totalCount":4}},"Conversation:conversation:303455":{"__typename":"Conversation","id":"conversation:303455","solved":false,"topic":{"__ref":"TkbTopicMessage:message:303455"},"lastPostingActivityTime":"2023-05-17T14:16:13.540-07:00","lastPostTime":"2022-11-15T05:00:00.038-08:00","unreadReplyCount":0,"isSubscribed":false},"ModerationData:moderation_data:303455":{"__typename":"ModerationData","id":"moderation_data:303455","status":"APPROVED","rejectReason":null,"isReportedAbuse":false,"rejectUser":null,"rejectTime":null,"rejectActorType":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA2NDZpQjg3MjJCRkVDOUEyNUREQQ?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA2NDZpQjg3MjJCRkVDOUEyNUREQQ?revision=11","title":"DC-Cover-Stock_0002_alexey-ruban-73o_FzZ5x-w-unsplash.jpg","associationType":"COVER","width":1000,"height":1000,"altText":""},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA0MDVpRkJCMUI4NUUxMTY4NTFFNw?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA0MDVpRkJCMUI4NUUxMTY4NTFFNw?revision=11","title":"Screen Shot 2022-11-01 at 1.24.42 PM.png","associationType":"BODY","width":832,"height":421,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA0MDZpMTc1QjIwQzY4RUUxMjY3Mg?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA0MDZpMTc1QjIwQzY4RUUxMjY3Mg?revision=11","title":"Screen Shot 2022-11-01 at 1.27.50 PM.png","associationType":"BODY","width":214,"height":54,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA0MDdpQkY0QTA1RUM5MTlBOTI3RA?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA0MDdpQkY0QTA1RUM5MTlBOTI3RA?revision=11","title":"Screen Shot 2022-11-01 at 1.30.19 PM.png","associationType":"BODY","width":899,"height":606,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA0MDhpMTk4RDk0QjlBMTdEMzY2RQ?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA0MDhpMTk4RDk0QjlBMTdEMzY2RQ?revision=11","title":"Screen Shot 2022-11-01 at 1.37.48 PM.png","associationType":"BODY","width":510,"height":178,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA0MDlpREE1MDU4MDA3MEFGODZGQQ?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA0MDlpREE1MDU4MDA3MEFGODZGQQ?revision=11","title":"Screen Shot 2022-11-01 at 1.27.50 PM.png","associationType":"BODY","width":214,"height":54,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA0MTBpOTFERTFFRkE4NDJFODg3Ng?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA0MTBpOTFERTFFRkE4NDJFODg3Ng?revision=11","title":"Screen Shot 2022-11-01 at 1.51.14 PM.png","associationType":"BODY","width":490,"height":325,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA0MTFpRUM4MEY4ODgzODBGRDcxRQ?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjA0MTFpRUM4MEY4ODgzODBGRDcxRQ?revision=11","title":"Screen Shot 2022-11-01 at 1.27.50 PM.png","associationType":"BODY","width":214,"height":54,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMDNpMjQ4OTZCRkZDNTUwQjI3Mg?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMDNpMjQ4OTZCRkZDNTUwQjI3Mg?revision=11","title":"Screen Shot 2021-01-15 at 10.59.33 AM.png","associationType":"BODY","width":543,"height":448,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMDRpM0IxNUNFRDFGNTlEQUIzOQ?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMDRpM0IxNUNFRDFGNTlEQUIzOQ?revision=11","title":"Screen Shot 2021-01-15 at 10.59.54 AM.png","associationType":"BODY","width":489,"height":260,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMDVpQUY1MEI2OEQ1MDYxNzE0NQ?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMDVpQUY1MEI2OEQ1MDYxNzE0NQ?revision=11","title":"Screen Shot 2021-01-15 at 11.00.43 AM.png","associationType":"BODY","width":452,"height":190,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMDZpMzBCOEM0N0E1MENDQzQ2OA?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMDZpMzBCOEM0N0E1MENDQzQ2OA?revision=11","title":"Screen Shot 2022-10-20 at 1.00.24 PM.png","associationType":"BODY","width":656,"height":205,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMDhpMDY5REY3Mjc0RkNERDA3RA?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMDhpMDY5REY3Mjc0RkNERDA3RA?revision=11","title":"Screen Shot 2021-01-15 at 11.15.11 AM.png","associationType":"BODY","width":367,"height":79,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMDdpQzNDRkM2OUE4RjJGOUE0OA?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMDdpQzNDRkM2OUE4RjJGOUE0OA?revision=11","title":"Screen Shot 2021-01-15 at 11.01.32 AM.png","associationType":"BODY","width":615,"height":288,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMDlpQjYyQjJFNkI2REE5QzQ4Rg?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMDlpQjYyQjJFNkI2REE5QzQ4Rg?revision=11","title":"Screen Shot 2021-01-15 at 11.01.50 AM.png","associationType":"BODY","width":547,"height":180,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTBpMDk5RUIwMDg4MEI3NjFERg?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTBpMDk5RUIwMDg4MEI3NjFERg?revision=11","title":"Screen Shot 2021-01-15 at 11.02.02 AM.png","associationType":"BODY","width":680,"height":252,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTFpMTIzODUyQ0YzQUMzMjJDMA?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTFpMTIzODUyQ0YzQUMzMjJDMA?revision=11","title":"Screen Shot 2021-01-15 at 11.02.23 AM.png","associationType":"BODY","width":679,"height":523,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTJpREQ3MUI4M0FFRkM3MjA3RA?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTJpREQ3MUI4M0FFRkM3MjA3RA?revision=11","title":"Screen Shot 2021-01-15 at 11.02.38 AM.png","associationType":"BODY","width":717,"height":577,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTNpMDUyNkMwNTM3QkU1NUNDMw?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTNpMDUyNkMwNTM3QkU1NUNDMw?revision=11","title":"Screen Shot 2021-01-15 at 11.56.33 AM.png","associationType":"BODY","width":1321,"height":137,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTRpNUU3MTY4RDhFMDVGNThDRA?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTRpNUU3MTY4RDhFMDVGNThDRA?revision=11","title":"Screen Shot 2021-01-15 at 11.03.09 AM.png","associationType":"BODY","width":529,"height":454,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTVpQzExQUM0NTEzQjNDMkI4NA?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTVpQzExQUM0NTEzQjNDMkI4NA?revision=11","title":"Screen Shot 2022-10-27 at 12.35.24 PM.png","associationType":"BODY","width":749,"height":146,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTdpQTYzQTdDMDgzRTg0MzMwNg?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTdpQTYzQTdDMDgzRTg0MzMwNg?revision=11","title":"Screen Shot 2021-01-15 at 11.05.40 AM.png","associationType":"BODY","width":390,"height":157,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMThpMURERTRCQ0E0MjY1NkYyMg?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMThpMURERTRCQ0E0MjY1NkYyMg?revision=11","title":"Screen Shot 2021-01-15 at 11.06.03 AM.png","associationType":"BODY","width":565,"height":212,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTZpODVGN0Q5NEI3OTMyRDAzMA?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMTZpODVGN0Q5NEI3OTMyRDAzMA?revision=11","title":"Screen Shot 2022-10-27 at 12.39.27 PM.png","associationType":"BODY","width":583,"height":295,"altText":null},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMjBpNkIwOTNBMDUyQkYzMDdFMg?revision=11\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bS0zMDM0NTUtMjAzMjBpNkIwOTNBMDUyQkYzMDdFMg?revision=11","title":"Screen Shot 2022-10-27 at 1.35.43 PM.png","associationType":"BODY","width":1408,"height":168,"altText":null},"Revision:revision:303455_11":{"__typename":"Revision","id":"revision:303455_11","lastEditTime":"2023-05-17T13:25:30.534-07:00"},"CachedAsset:theme:customTheme1-1746693049182":{"__typename":"CachedAsset","id":"theme:customTheme1-1746693049182","value":{"id":"customTheme1","animation":{"fast":"150ms","normal":"250ms","slow":"500ms","slowest":"750ms","function":"cubic-bezier(0.07, 0.91, 0.51, 1)","__typename":"AnimationThemeSettings"},"avatar":{"borderRadius":"50%","collections":["custom"],"__typename":"AvatarThemeSettings"},"basics":{"browserIcon":{"imageAssetName":"JimmyPackets-512-1702592938213.png","imageLastModified":"1702592945815","__typename":"ThemeAsset"},"customerLogo":{"imageAssetName":"f5_logo_fix-1704824537976.svg","imageLastModified":"1704824540697","__typename":"ThemeAsset"},"maximumWidthOfPageContent":"1600px","oneColumnNarrowWidth":"800px","gridGutterWidthMd":"30px","gridGutterWidthXs":"10px","pageWidthStyle":"WIDTH_OF_PAGE_CONTENT","__typename":"BasicsThemeSettings"},"buttons":{"borderRadiusSm":"5px","borderRadius":"5px","borderRadiusLg":"5px","paddingY":"5px","paddingYLg":"7px","paddingYHero":"var(--lia-bs-btn-padding-y-lg)","paddingX":"12px","paddingXLg":"14px","paddingXHero":"42px","fontStyle":"NORMAL","fontWeight":"400","textTransform":"NONE","disabledOpacity":0.5,"primaryTextColor":"var(--lia-bs-white)","primaryTextHoverColor":"var(--lia-bs-white)","primaryTextActiveColor":"var(--lia-bs-white)","primaryBgColor":"var(--lia-bs-primary)","primaryBgHoverColor":"hsl(var(--lia-bs-primary-h), var(--lia-bs-primary-s), calc(var(--lia-bs-primary-l) * 0.85))","primaryBgActiveColor":"hsl(var(--lia-bs-primary-h), var(--lia-bs-primary-s), calc(var(--lia-bs-primary-l) * 0.7))","primaryBorder":"1px solid transparent","primaryBorderHover":"1px solid transparent","primaryBorderActive":"1px solid transparent","primaryBorderFocus":"1px solid var(--lia-bs-white)","primaryBoxShadowFocus":"0 0 0 1px var(--lia-bs-primary), 0 0 0 4px hsla(var(--lia-bs-primary-h), var(--lia-bs-primary-s), var(--lia-bs-primary-l), 0.2)","secondaryTextColor":"var(--lia-bs-gray-900)","secondaryTextHoverColor":"hsl(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), calc(var(--lia-bs-gray-900-l) * 0.95))","secondaryTextActiveColor":"hsl(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), calc(var(--lia-bs-gray-900-l) * 0.9))","secondaryBgColor":"var(--lia-bs-gray-400)","secondaryBgHoverColor":"hsl(var(--lia-bs-gray-400-h), var(--lia-bs-gray-400-s), calc(var(--lia-bs-gray-400-l) * 0.96))","secondaryBgActiveColor":"hsl(var(--lia-bs-gray-400-h), var(--lia-bs-gray-400-s), calc(var(--lia-bs-gray-400-l) * 0.92))","secondaryBorder":"1px solid transparent","secondaryBorderHover":"1px solid transparent","secondaryBorderActive":"1px solid transparent","secondaryBorderFocus":"1px solid transparent","secondaryBoxShadowFocus":"0 0 0 1px var(--lia-bs-primary), 0 0 0 4px hsla(var(--lia-bs-primary-h), var(--lia-bs-primary-s), var(--lia-bs-primary-l), 0.2)","tertiaryTextColor":"var(--lia-bs-gray-900)","tertiaryTextHoverColor":"hsl(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), calc(var(--lia-bs-gray-900-l) * 0.95))","tertiaryTextActiveColor":"hsl(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), calc(var(--lia-bs-gray-900-l) * 0.9))","tertiaryBgColor":"transparent","tertiaryBgHoverColor":"transparent","tertiaryBgActiveColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.04)","tertiaryBorder":"1px solid transparent","tertiaryBorderHover":"1px solid hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.08)","tertiaryBorderActive":"1px solid transparent","tertiaryBorderFocus":"1px solid transparent","tertiaryBoxShadowFocus":"0 0 0 1px var(--lia-bs-primary), 0 0 0 4px hsla(var(--lia-bs-primary-h), var(--lia-bs-primary-s), var(--lia-bs-primary-l), 0.2)","destructiveTextColor":"var(--lia-bs-danger)","destructiveTextHoverColor":"hsl(var(--lia-bs-danger-h), var(--lia-bs-danger-s), calc(var(--lia-bs-danger-l) * 0.95))","destructiveTextActiveColor":"hsl(var(--lia-bs-danger-h), var(--lia-bs-danger-s), calc(var(--lia-bs-danger-l) * 0.9))","destructiveBgColor":"var(--lia-bs-gray-300)","destructiveBgHoverColor":"hsl(var(--lia-bs-gray-300-h), var(--lia-bs-gray-300-s), calc(var(--lia-bs-gray-300-l) * 0.96))","destructiveBgActiveColor":"hsl(var(--lia-bs-gray-300-h), var(--lia-bs-gray-300-s), calc(var(--lia-bs-gray-300-l) * 0.92))","destructiveBorder":"1px solid transparent","destructiveBorderHover":"1px solid transparent","destructiveBorderActive":"1px solid transparent","destructiveBorderFocus":"1px solid transparent","destructiveBoxShadowFocus":"0 0 0 1px var(--lia-bs-primary), 0 0 0 4px hsla(var(--lia-bs-primary-h), var(--lia-bs-primary-s), var(--lia-bs-primary-l), 0.2)","__typename":"ButtonsThemeSettings"},"border":{"color":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.08)","mainContent":"NONE","sideContent":"NONE","radiusSm":"3px","radius":"5px","radiusLg":"9px","radius50":"100vw","__typename":"BorderThemeSettings"},"boxShadow":{"xs":"0 0 0 1px hsla(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), var(--lia-bs-gray-900-l), 0.08), 0 3px 0 -1px hsla(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), var(--lia-bs-gray-900-l), 0.08)","sm":"0 2px 4px hsla(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), var(--lia-bs-gray-900-l), 0.06)","md":"0 5px 15px hsla(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), var(--lia-bs-gray-900-l), 0.15)","lg":"0 10px 30px hsla(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), var(--lia-bs-gray-900-l), 0.15)","__typename":"BoxShadowThemeSettings"},"cards":{"bgColor":"var(--lia-panel-bg-color)","borderRadius":"var(--lia-panel-border-radius)","boxShadow":"var(--lia-box-shadow-xs)","__typename":"CardsThemeSettings"},"chip":{"maxWidth":"300px","height":"30px","__typename":"ChipThemeSettings"},"coreTypes":{"defaultMessageLinkColor":"var(--lia-bs-primary)","defaultMessageLinkDecoration":"none","defaultMessageLinkFontStyle":"NORMAL","defaultMessageLinkFontWeight":"400","defaultMessageFontStyle":"NORMAL","defaultMessageFontWeight":"400","defaultMessageFontFamily":"var(--lia-bs-font-family-base)","forumColor":"#0C5C8D","forumFontFamily":"var(--lia-bs-font-family-base)","forumFontWeight":"var(--lia-default-message-font-weight)","forumLineHeight":"var(--lia-bs-line-height-base)","forumFontStyle":"var(--lia-default-message-font-style)","forumMessageLinkColor":"var(--lia-default-message-link-color)","forumMessageLinkDecoration":"var(--lia-default-message-link-decoration)","forumMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","forumMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","forumSolvedColor":"#62C026","blogColor":"#730015","blogFontFamily":"var(--lia-bs-font-family-base)","blogFontWeight":"var(--lia-default-message-font-weight)","blogLineHeight":"1.75","blogFontStyle":"var(--lia-default-message-font-style)","blogMessageLinkColor":"var(--lia-default-message-link-color)","blogMessageLinkDecoration":"var(--lia-default-message-link-decoration)","blogMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","blogMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","tkbColor":"#C20025","tkbFontFamily":"var(--lia-bs-font-family-base)","tkbFontWeight":"var(--lia-default-message-font-weight)","tkbLineHeight":"1.75","tkbFontStyle":"var(--lia-default-message-font-style)","tkbMessageLinkColor":"var(--lia-default-message-link-color)","tkbMessageLinkDecoration":"var(--lia-default-message-link-decoration)","tkbMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","tkbMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","qandaColor":"#4099E2","qandaFontFamily":"var(--lia-bs-font-family-base)","qandaFontWeight":"var(--lia-default-message-font-weight)","qandaLineHeight":"var(--lia-bs-line-height-base)","qandaFontStyle":"var(--lia-default-message-link-font-style)","qandaMessageLinkColor":"var(--lia-default-message-link-color)","qandaMessageLinkDecoration":"var(--lia-default-message-link-decoration)","qandaMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","qandaMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","qandaSolvedColor":"#3FA023","ideaColor":"#F3704B","ideaFontFamily":"var(--lia-bs-font-family-base)","ideaFontWeight":"var(--lia-default-message-font-weight)","ideaLineHeight":"var(--lia-bs-line-height-base)","ideaFontStyle":"var(--lia-default-message-font-style)","ideaMessageLinkColor":"var(--lia-default-message-link-color)","ideaMessageLinkDecoration":"var(--lia-default-message-link-decoration)","ideaMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","ideaMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","contestColor":"#FCC845","contestFontFamily":"var(--lia-bs-font-family-base)","contestFontWeight":"var(--lia-default-message-font-weight)","contestLineHeight":"var(--lia-bs-line-height-base)","contestFontStyle":"var(--lia-default-message-link-font-style)","contestMessageLinkColor":"var(--lia-default-message-link-color)","contestMessageLinkDecoration":"var(--lia-default-message-link-decoration)","contestMessageLinkFontStyle":"ITALIC","contestMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","occasionColor":"#EE4B5B","occasionFontFamily":"var(--lia-bs-font-family-base)","occasionFontWeight":"var(--lia-default-message-font-weight)","occasionLineHeight":"var(--lia-bs-line-height-base)","occasionFontStyle":"var(--lia-default-message-font-style)","occasionMessageLinkColor":"var(--lia-default-message-link-color)","occasionMessageLinkDecoration":"var(--lia-default-message-link-decoration)","occasionMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","occasionMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","grouphubColor":"#491B62","categoryColor":"#949494","communityColor":"#FFFFFF","productColor":"#949494","__typename":"CoreTypesThemeSettings"},"colors":{"black":"#000000","white":"#FFFFFF","gray100":"#F7F7F7","gray200":"#F7F7F7","gray300":"#E8E8E8","gray400":"#D9D9D9","gray500":"#CCCCCC","gray600":"#949494","gray700":"#707070","gray800":"#545454","gray900":"#333333","dark":"#545454","light":"#F7F7F7","primary":"#0C5C8D","secondary":"#333333","bodyText":"#222222","bodyBg":"#F5F5F5","info":"#1D9CD3","success":"#62C026","warning":"#FFD651","danger":"#C20025","alertSystem":"#FF6600","textMuted":"#707070","highlight":"#FFFCAD","outline":"var(--lia-bs-primary)","custom":["#C20025","#081B85","#009639","#B3C6D7","#7CC0EB","#F29A36"],"__typename":"ColorsThemeSettings"},"divider":{"size":"3px","marginLeft":"4px","marginRight":"4px","borderRadius":"50%","bgColor":"var(--lia-bs-gray-600)","bgColorActive":"var(--lia-bs-gray-600)","__typename":"DividerThemeSettings"},"dropdown":{"fontSize":"var(--lia-bs-font-size-sm)","borderColor":"var(--lia-bs-border-color)","borderRadius":"var(--lia-bs-border-radius-sm)","dividerBg":"var(--lia-bs-gray-300)","itemPaddingY":"5px","itemPaddingX":"20px","headerColor":"var(--lia-bs-gray-700)","__typename":"DropdownThemeSettings"},"email":{"link":{"color":"#0069D4","hoverColor":"#0061c2","decoration":"none","hoverDecoration":"underline","__typename":"EmailLinkSettings"},"border":{"color":"#e4e4e4","__typename":"EmailBorderSettings"},"buttons":{"borderRadiusLg":"5px","paddingXLg":"16px","paddingYLg":"7px","fontWeight":"700","primaryTextColor":"#ffffff","primaryTextHoverColor":"#ffffff","primaryBgColor":"#0069D4","primaryBgHoverColor":"#005cb8","primaryBorder":"1px solid transparent","primaryBorderHover":"1px solid transparent","__typename":"EmailButtonsSettings"},"panel":{"borderRadius":"5px","borderColor":"#e4e4e4","__typename":"EmailPanelSettings"},"__typename":"EmailThemeSettings"},"emoji":{"skinToneDefault":"#ffcd43","skinToneLight":"#fae3c5","skinToneMediumLight":"#e2cfa5","skinToneMedium":"#daa478","skinToneMediumDark":"#a78058","skinToneDark":"#5e4d43","__typename":"EmojiThemeSettings"},"heading":{"color":"var(--lia-bs-body-color)","fontFamily":"Inter","fontStyle":"NORMAL","fontWeight":"600","h1FontSize":"30px","h2FontSize":"25px","h3FontSize":"20px","h4FontSize":"18px","h5FontSize":"16px","h6FontSize":"16px","lineHeight":"1.2","subHeaderFontSize":"11px","subHeaderFontWeight":"500","h1LetterSpacing":"normal","h2LetterSpacing":"normal","h3LetterSpacing":"normal","h4LetterSpacing":"normal","h5LetterSpacing":"normal","h6LetterSpacing":"normal","subHeaderLetterSpacing":"2px","h1FontWeight":"var(--lia-bs-headings-font-weight)","h2FontWeight":"var(--lia-bs-headings-font-weight)","h3FontWeight":"var(--lia-bs-headings-font-weight)","h4FontWeight":"var(--lia-bs-headings-font-weight)","h5FontWeight":"var(--lia-bs-headings-font-weight)","h6FontWeight":"var(--lia-bs-headings-font-weight)","__typename":"HeadingThemeSettings"},"icons":{"size10":"10px","size12":"12px","size14":"14px","size16":"16px","size20":"20px","size24":"24px","size30":"30px","size40":"40px","size50":"50px","size60":"60px","size80":"80px","size120":"120px","size160":"160px","__typename":"IconsThemeSettings"},"imagePreview":{"bgColor":"var(--lia-bs-gray-900)","titleColor":"var(--lia-bs-white)","controlColor":"var(--lia-bs-white)","controlBgColor":"var(--lia-bs-gray-800)","__typename":"ImagePreviewThemeSettings"},"input":{"borderColor":"var(--lia-bs-gray-600)","disabledColor":"var(--lia-bs-gray-600)","focusBorderColor":"var(--lia-bs-primary)","labelMarginBottom":"10px","btnFontSize":"var(--lia-bs-font-size-sm)","focusBoxShadow":"0 0 0 3px hsla(var(--lia-bs-primary-h), var(--lia-bs-primary-s), var(--lia-bs-primary-l), 0.2)","checkLabelMarginBottom":"2px","checkboxBorderRadius":"3px","borderRadiusSm":"var(--lia-bs-border-radius-sm)","borderRadius":"var(--lia-bs-border-radius)","borderRadiusLg":"var(--lia-bs-border-radius-lg)","formTextMarginTop":"4px","textAreaBorderRadius":"var(--lia-bs-border-radius)","activeFillColor":"var(--lia-bs-primary)","__typename":"InputThemeSettings"},"loading":{"dotDarkColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.2)","dotLightColor":"hsla(var(--lia-bs-white-h), var(--lia-bs-white-s), var(--lia-bs-white-l), 0.5)","barDarkColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.06)","barLightColor":"hsla(var(--lia-bs-white-h), var(--lia-bs-white-s), var(--lia-bs-white-l), 0.4)","__typename":"LoadingThemeSettings"},"link":{"color":"var(--lia-bs-primary)","hoverColor":"hsl(var(--lia-bs-primary-h), var(--lia-bs-primary-s), calc(var(--lia-bs-primary-l) - 10%))","decoration":"none","hoverDecoration":"underline","__typename":"LinkThemeSettings"},"listGroup":{"itemPaddingY":"15px","itemPaddingX":"15px","borderColor":"var(--lia-bs-gray-300)","__typename":"ListGroupThemeSettings"},"modal":{"contentTextColor":"var(--lia-bs-body-color)","contentBg":"var(--lia-bs-white)","backgroundBg":"var(--lia-bs-black)","smSize":"440px","mdSize":"760px","lgSize":"1080px","backdropOpacity":0.3,"contentBoxShadowXs":"var(--lia-bs-box-shadow-sm)","contentBoxShadow":"var(--lia-bs-box-shadow)","headerFontWeight":"700","__typename":"ModalThemeSettings"},"navbar":{"position":"FIXED","background":{"attachment":null,"clip":null,"color":"var(--lia-bs-white)","imageAssetName":null,"imageLastModified":"0","origin":null,"position":"CENTER_CENTER","repeat":"NO_REPEAT","size":"COVER","__typename":"BackgroundProps"},"backgroundOpacity":0.8,"paddingTop":"15px","paddingBottom":"15px","borderBottom":"1px solid var(--lia-bs-border-color)","boxShadow":"var(--lia-bs-box-shadow-sm)","brandMarginRight":"30px","brandMarginRightSm":"10px","brandLogoHeight":"30px","linkGap":"10px","linkJustifyContent":"flex-start","linkPaddingY":"5px","linkPaddingX":"10px","linkDropdownPaddingY":"9px","linkDropdownPaddingX":"var(--lia-nav-link-px)","linkColor":"var(--lia-bs-body-color)","linkHoverColor":"var(--lia-bs-primary)","linkFontSize":"var(--lia-bs-font-size-sm)","linkFontStyle":"NORMAL","linkFontWeight":"400","linkTextTransform":"NONE","linkLetterSpacing":"normal","linkBorderRadius":"var(--lia-bs-border-radius-sm)","linkBgColor":"transparent","linkBgHoverColor":"transparent","linkBorder":"none","linkBorderHover":"none","linkBoxShadow":"none","linkBoxShadowHover":"none","linkTextBorderBottom":"none","linkTextBorderBottomHover":"none","dropdownPaddingTop":"10px","dropdownPaddingBottom":"15px","dropdownPaddingX":"10px","dropdownMenuOffset":"2px","dropdownDividerMarginTop":"10px","dropdownDividerMarginBottom":"10px","dropdownBorderColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.08)","controllerBgHoverColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.1)","controllerIconColor":"var(--lia-bs-body-color)","controllerIconHoverColor":"var(--lia-bs-body-color)","controllerTextColor":"var(--lia-nav-controller-icon-color)","controllerTextHoverColor":"var(--lia-nav-controller-icon-hover-color)","controllerHighlightColor":"hsla(30, 100%, 50%)","controllerHighlightTextColor":"var(--lia-yiq-light)","controllerBorderRadius":"var(--lia-border-radius-50)","hamburgerColor":"var(--lia-nav-controller-icon-color)","hamburgerHoverColor":"var(--lia-nav-controller-icon-color)","hamburgerBgColor":"transparent","hamburgerBgHoverColor":"transparent","hamburgerBorder":"none","hamburgerBorderHover":"none","collapseMenuMarginLeft":"20px","collapseMenuDividerBg":"var(--lia-nav-link-color)","collapseMenuDividerOpacity":0.16,"__typename":"NavbarThemeSettings"},"pager":{"textColor":"var(--lia-bs-link-color)","textFontWeight":"var(--lia-font-weight-md)","textFontSize":"var(--lia-bs-font-size-sm)","__typename":"PagerThemeSettings"},"panel":{"bgColor":"var(--lia-bs-white)","borderRadius":"var(--lia-bs-border-radius)","borderColor":"var(--lia-bs-border-color)","boxShadow":"none","__typename":"PanelThemeSettings"},"popover":{"arrowHeight":"8px","arrowWidth":"16px","maxWidth":"300px","minWidth":"100px","headerBg":"var(--lia-bs-white)","borderColor":"var(--lia-bs-border-color)","borderRadius":"var(--lia-bs-border-radius)","boxShadow":"0 0.5rem 1rem hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.15)","__typename":"PopoverThemeSettings"},"prism":{"color":"#000000","bgColor":"#f5f2f0","fontFamily":"var(--font-family-monospace)","fontSize":"var(--lia-bs-font-size-base)","fontWeightBold":"var(--lia-bs-font-weight-bold)","fontStyleItalic":"italic","tabSize":2,"highlightColor":"#b3d4fc","commentColor":"#62707e","punctuationColor":"#6f6f6f","namespaceOpacity":"0.7","propColor":"#990055","selectorColor":"#517a00","operatorColor":"#906736","operatorBgColor":"hsla(0, 0%, 100%, 0.5)","keywordColor":"#0076a9","functionColor":"#d3284b","variableColor":"#c14700","__typename":"PrismThemeSettings"},"rte":{"bgColor":"var(--lia-bs-white)","borderRadius":"var(--lia-panel-border-radius)","boxShadow":" var(--lia-panel-box-shadow)","customColor1":"#bfedd2","customColor2":"#fbeeb8","customColor3":"#f8cac6","customColor4":"#eccafa","customColor5":"#c2e0f4","customColor6":"#2dc26b","customColor7":"#f1c40f","customColor8":"#e03e2d","customColor9":"#b96ad9","customColor10":"#3598db","customColor11":"#169179","customColor12":"#e67e23","customColor13":"#ba372a","customColor14":"#843fa1","customColor15":"#236fa1","customColor16":"#ecf0f1","customColor17":"#ced4d9","customColor18":"#95a5a6","customColor19":"#7e8c8d","customColor20":"#34495e","customColor21":"#000000","customColor22":"#ffffff","defaultMessageHeaderMarginTop":"14px","defaultMessageHeaderMarginBottom":"10px","defaultMessageItemMarginTop":"0","defaultMessageItemMarginBottom":"10px","diffAddedColor":"hsla(170, 53%, 51%, 0.4)","diffChangedColor":"hsla(43, 97%, 63%, 0.4)","diffNoneColor":"hsla(0, 0%, 80%, 0.4)","diffRemovedColor":"hsla(9, 74%, 47%, 0.4)","specialMessageHeaderMarginTop":"14px","specialMessageHeaderMarginBottom":"10px","specialMessageItemMarginTop":"0","specialMessageItemMarginBottom":"10px","__typename":"RteThemeSettings"},"tags":{"bgColor":"var(--lia-bs-gray-200)","bgHoverColor":"var(--lia-bs-gray-400)","borderRadius":"var(--lia-bs-border-radius-sm)","color":"var(--lia-bs-body-color)","hoverColor":"var(--lia-bs-body-color)","fontWeight":"var(--lia-font-weight-md)","fontSize":"var(--lia-font-size-xxs)","textTransform":"UPPERCASE","letterSpacing":"0.5px","__typename":"TagsThemeSettings"},"toasts":{"borderRadius":"var(--lia-bs-border-radius)","paddingX":"12px","__typename":"ToastsThemeSettings"},"typography":{"fontFamilyBase":"Atkinson Hyperlegible","fontStyleBase":"NORMAL","fontWeightBase":"400","fontWeightLight":"300","fontWeightNormal":"400","fontWeightMd":"500","fontWeightBold":"700","letterSpacingSm":"normal","letterSpacingXs":"normal","lineHeightBase":"1.3","fontSizeBase":"15px","fontSizeXxs":"11px","fontSizeXs":"12px","fontSizeSm":"13px","fontSizeLg":"20px","fontSizeXl":"24px","smallFontSize":"14px","customFonts":[],"__typename":"TypographyThemeSettings"},"unstyledListItem":{"marginBottomSm":"5px","marginBottomMd":"10px","marginBottomLg":"15px","marginBottomXl":"20px","marginBottomXxl":"25px","__typename":"UnstyledListItemThemeSettings"},"yiq":{"light":"#ffffff","dark":"#000000","__typename":"YiqThemeSettings"},"colorLightness":{"primaryDark":0.36,"primaryLight":0.74,"primaryLighter":0.89,"primaryLightest":0.95,"infoDark":0.39,"infoLight":0.72,"infoLighter":0.85,"infoLightest":0.93,"successDark":0.24,"successLight":0.62,"successLighter":0.8,"successLightest":0.91,"warningDark":0.39,"warningLight":0.68,"warningLighter":0.84,"warningLightest":0.93,"dangerDark":0.41,"dangerLight":0.72,"dangerLighter":0.89,"dangerLightest":0.95,"__typename":"ColorLightnessThemeSettings"},"localOverride":false,"__typename":"Theme"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/common/Loading/LoadingDot-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/common/Loading/LoadingDot-1744046271000","value":{"title":"Loading..."},"localOverride":false},"CachedAsset:quilt:f5.prod:pages/kbs/TkbMessagePage:board:TechnicalArticles-1746693046204":{"__typename":"CachedAsset","id":"quilt:f5.prod:pages/kbs/TkbMessagePage:board:TechnicalArticles-1746693046204","value":{"id":"TkbMessagePage","container":{"id":"Common","headerProps":{"backgroundImageProps":null,"backgroundColor":null,"addComponents":null,"removeComponents":["community.widget.bannerWidget"],"componentOrder":null,"__typename":"QuiltContainerSectionProps"},"headerComponentProps":{"community.widget.breadcrumbWidget":{"disableLastCrumbForDesktop":false}},"footerProps":null,"footerComponentProps":null,"items":[{"id":"message-list","layout":"MAIN_SIDE","bgColor":"transparent","showTitle":true,"showDescription":true,"textPosition":"CENTER","textColor":"var(--lia-bs-body-color)","sectionEditLevel":null,"bgImage":null,"disableSpacing":null,"edgeToEdgeDisplay":null,"fullHeight":null,"showBorder":null,"__typename":"MainSideQuiltSection","columnMap":{"main":[{"id":"tkbs.widget.tkbArticleWidget","className":"lia-tkb-container","props":{"contributorListType":"panel","showHelpfulness":false,"showTimestamp":true,"showGuideNavigationSection":true,"showVersion":true,"lazyLoad":false,"editLevel":"CONFIGURE"},"__typename":"QuiltComponent"}],"side":[{"id":"featuredWidgets.widget.featuredContentWidget","className":null,"props":{"instanceId":"featuredWidgets.widget.featuredContentWidget-1702666556326","layoutProps":{"layout":"card","layoutOptions":{"useRepliesCount":false,"useAuthorRank":false,"useTimeToRead":true,"useKudosCount":false,"useViewCount":true,"usePreviewMedia":true,"useBody":false,"useCenteredCardContent":false,"useTags":true,"useTimestamp":false,"useBoardLink":true,"useAuthorLink":false,"useSolvedBadge":true}},"titleSrOnly":false,"showPager":true,"pageSize":3,"lazyLoad":true},"__typename":"QuiltComponent"},{"id":"messages.widget.relatedContentWidget","className":null,"props":{"hideIfEmpty":true,"enablePagination":true,"useTitle":true,"listVariant":{"type":"listGroup"},"pageSize":3,"style":"list","pagerVariant":{"type":"loadMore"},"viewVariant":{"type":"inline","props":{"useRepliesCount":true,"useMedia":true,"useAuthorRank":false,"useNode":true,"useTimeToRead":true,"useSpoilerFreeBody":true,"useKudosCount":true,"useNodeLink":true,"useViewCount":true,"usePreviewMedia":false,"useBody":false,"timeStampType":"postTime","useTags":true,"clampSubjectLines":2,"useBoardIcon":false,"useMessageTimeLink":true,"clampBodyLines":3,"useTextBody":true,"useSolvedBadge":true,"useAvatar":true,"useAuthorLogin":true,"useUnreadCount":true}},"lazyLoad":true,"panelType":"divider"},"__typename":"QuiltComponent"}],"__typename":"MainSideSectionColumns"}}],"__typename":"QuiltContainer"},"__typename":"Quilt","localOverride":false},"localOverride":false},"CachedAsset:text:en_US-components/common/EmailVerification-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/common/EmailVerification-1744046271000","value":{"email.verification.title":"Email Verification Required","email.verification.message.update.email":"To participate in the community, you must first verify your email address. The verification email was sent to {email}. To change your email, visit My Settings.","email.verification.message.resend.email":"To participate in the community, you must first verify your email address. The verification email was sent to {email}. Resend email."},"localOverride":false},"CachedAsset:text:en_US-pages/kbs/TkbMessagePage-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-pages/kbs/TkbMessagePage-1744046271000","value":{"title":"{contextMessageSubject} | {communityTitle}","errorMissing":"This article cannot be found","name":"TKB Message Page","section.message-list.title":"","archivedMessageTitle":"This Content Has Been Archived","section.erPqcf.title":"","section.erPqcf.description":"","section.message-list.description":""},"localOverride":false},"CachedAsset:text:en_US-components/common/ActionFeedback-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/common/ActionFeedback-1744046271000","value":{"joinedGroupHub.title":"Welcome","joinedGroupHub.message":"You are now a member of this group and are subscribed to updates.","groupHubInviteNotFound.title":"Invitation Not Found","groupHubInviteNotFound.message":"Sorry, we could not find your invitation to the group. The owner may have canceled the invite.","groupHubNotFound.title":"Group Not Found","groupHubNotFound.message":"The grouphub you tried to join does not exist. It may have been deleted.","existingGroupHubMember.title":"Already Joined","existingGroupHubMember.message":"You are already a member of this group.","accountLocked.title":"Account Locked","accountLocked.message":"Your account has been locked due to multiple failed attempts. Try again in {lockoutTime} minutes.","editedGroupHub.title":"Changes Saved","editedGroupHub.message":"Your group has been updated.","leftGroupHub.title":"Goodbye","leftGroupHub.message":"You are no longer a member of this group and will not receive future updates.","deletedGroupHub.title":"Deleted","deletedGroupHub.message":"The group has been deleted.","groupHubCreated.title":"Group Created","groupHubCreated.message":"{groupHubName} is ready to use","accountClosed.title":"Account Closed","accountClosed.message":"The account has been closed and you will now be redirected to the homepage","resetTokenExpired.title":"Reset Password Link has Expired","resetTokenExpired.message":"Try resetting your password again","invalidUrl.title":"Invalid URL","invalidUrl.message":"The URL you're using is not recognized. Verify your URL and try again.","accountClosedForUser.title":"Account Closed","accountClosedForUser.message":"{userName}'s account is closed","inviteTokenInvalid.title":"Invitation Invalid","inviteTokenInvalid.message":"Your invitation to the community has been canceled or expired.","inviteTokenError.title":"Invitation Verification Failed","inviteTokenError.message":"The url you are utilizing is not recognized. Verify your URL and try again","pageNotFound.title":"Access Denied","pageNotFound.message":"You do not have access to this area of the community or it doesn't exist","eventAttending.title":"Responded as Attending","eventAttending.message":"You'll be notified when there's new activity and reminded as the event approaches","eventInterested.title":"Responded as Interested","eventInterested.message":"You'll be notified when there's new activity and reminded as the event approaches","eventNotFound.title":"Event Not Found","eventNotFound.message":"The event you tried to respond to does not exist.","redirectToRelatedPage.title":"Showing Related Content","redirectToRelatedPageForBaseUsers.title":"Showing Related Content","redirectToRelatedPageForBaseUsers.message":"The content you are trying to access is archived","redirectToRelatedPage.message":"The content you are trying to access is archived","relatedUrl.archivalLink.flyoutMessage":"The content you are trying to access is archived View Archived Content"},"localOverride":false},"CachedAsset:quiltWrapper:f5.prod:Common:1746691379349":{"__typename":"CachedAsset","id":"quiltWrapper:f5.prod:Common:1746691379349","value":{"id":"Common","header":{"backgroundImageProps":{"assetName":"header.jpg","backgroundSize":"COVER","backgroundRepeat":"NO_REPEAT","backgroundPosition":"LEFT_CENTER","lastModified":"1702932449000","__typename":"BackgroundImageProps"},"backgroundColor":"transparent","items":[{"id":"custom.widget.GainsightShared","props":{"widgetVisibility":"signedInOnly","useTitle":true,"useBackground":false,"title":"","lazyLoad":false},"__typename":"QuiltComponent"},{"id":"custom.widget.Beta_MetaNav","props":{"widgetVisibility":"signedInOrAnonymous","useTitle":true,"useBackground":false,"title":"","lazyLoad":false},"__typename":"QuiltComponent"},{"id":"community.widget.navbarWidget","props":{"showUserName":false,"showRegisterLink":true,"style":{"boxShadow":"var(--lia-bs-box-shadow-sm)","linkFontWeight":"700","controllerHighlightColor":"hsla(30, 100%, 50%)","dropdownDividerMarginBottom":"10px","hamburgerBorderHover":"none","linkFontSize":"15px","linkBoxShadowHover":"none","backgroundOpacity":0.4,"controllerBorderRadius":"var(--lia-border-radius-50)","hamburgerBgColor":"transparent","linkTextBorderBottom":"none","hamburgerColor":"var(--lia-nav-controller-icon-color)","brandLogoHeight":"48px","linkLetterSpacing":"normal","linkBgHoverColor":"transparent","collapseMenuDividerOpacity":0.16,"paddingBottom":"10px","dropdownPaddingBottom":"15px","dropdownMenuOffset":"2px","hamburgerBgHoverColor":"transparent","borderBottom":"0","hamburgerBorder":"none","dropdownPaddingX":"10px","brandMarginRightSm":"10px","linkBoxShadow":"none","linkJustifyContent":"center","linkColor":"var(--lia-bs-primary)","collapseMenuDividerBg":"var(--lia-nav-link-color)","dropdownPaddingTop":"10px","controllerHighlightTextColor":"var(--lia-yiq-dark)","background":{"imageAssetName":"","color":"var(--lia-bs-white)","size":"COVER","repeat":"NO_REPEAT","position":"CENTER_CENTER","imageLastModified":""},"linkBorderRadius":"var(--lia-bs-border-radius-sm)","linkHoverColor":"var(--lia-bs-primary)","position":"FIXED","linkBorder":"none","linkTextBorderBottomHover":"2px solid #0C5C8D","brandMarginRight":"30px","hamburgerHoverColor":"var(--lia-nav-controller-icon-color)","linkBorderHover":"none","collapseMenuMarginLeft":"20px","linkFontStyle":"NORMAL","linkPaddingX":"10px","paddingTop":"10px","linkPaddingY":"5px","linkTextTransform":"NONE","dropdownBorderColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.08)","controllerBgHoverColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.1)","linkDropdownPaddingX":"var(--lia-nav-link-px)","linkBgColor":"transparent","linkDropdownPaddingY":"9px","controllerIconColor":"#0C5C8D","dropdownDividerMarginTop":"10px","linkGap":"10px","controllerIconHoverColor":"#0C5C8D"},"links":{"sideLinks":[],"mainLinks":[{"children":[{"linkType":"INTERNAL","id":"migrated-link-1","params":{"boardId":"TechnicalForum","categoryId":"Forums"},"routeName":"ForumBoardPage"},{"linkType":"INTERNAL","id":"migrated-link-2","params":{"boardId":"WaterCooler","categoryId":"Forums"},"routeName":"ForumBoardPage"}],"linkType":"INTERNAL","id":"migrated-link-0","params":{"categoryId":"Forums"},"routeName":"CategoryPage"},{"children":[{"linkType":"INTERNAL","id":"migrated-link-4","params":{"boardId":"codeshare","categoryId":"CrowdSRC"},"routeName":"TkbBoardPage"},{"linkType":"INTERNAL","id":"migrated-link-5","params":{"boardId":"communityarticles","categoryId":"CrowdSRC"},"routeName":"TkbBoardPage"}],"linkType":"INTERNAL","id":"migrated-link-3","params":{"categoryId":"CrowdSRC"},"routeName":"CategoryPage"},{"children":[{"linkType":"INTERNAL","id":"migrated-link-7","params":{"boardId":"TechnicalArticles","categoryId":"Articles"},"routeName":"TkbBoardPage"},{"linkType":"INTERNAL","id":"article-series","params":{"boardId":"article-series","categoryId":"Articles"},"routeName":"TkbBoardPage"},{"linkType":"INTERNAL","id":"security-insights","params":{"boardId":"security-insights","categoryId":"Articles"},"routeName":"TkbBoardPage"},{"linkType":"INTERNAL","id":"migrated-link-8","params":{"boardId":"DevCentralNews","categoryId":"Articles"},"routeName":"TkbBoardPage"}],"linkType":"INTERNAL","id":"migrated-link-6","params":{"categoryId":"Articles"},"routeName":"CategoryPage"},{"children":[{"linkType":"INTERNAL","id":"migrated-link-10","params":{"categoryId":"CommunityGroups"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"migrated-link-11","params":{"categoryId":"F5-Groups"},"routeName":"CategoryPage"}],"linkType":"INTERNAL","id":"migrated-link-9","params":{"categoryId":"GroupsCategory"},"routeName":"CategoryPage"},{"children":[],"linkType":"INTERNAL","id":"migrated-link-12","params":{"boardId":"Events","categoryId":"top"},"routeName":"EventBoardPage"},{"children":[],"linkType":"INTERNAL","id":"migrated-link-13","params":{"boardId":"Suggestions","categoryId":"top"},"routeName":"IdeaBoardPage"},{"children":[],"linkType":"EXTERNAL","id":"Common-external-link","url":"https://community.f5.com/c/how-do-i","target":"SELF"}]},"className":"QuiltComponent_lia-component-edit-mode__lQ9Z6","showSearchIcon":false},"__typename":"QuiltComponent"},{"id":"community.widget.bannerWidget","props":{"backgroundColor":"transparent","visualEffects":{"showBottomBorder":false},"backgroundImageProps":{"backgroundSize":"COVER","backgroundPosition":"CENTER_CENTER","backgroundRepeat":"NO_REPEAT"},"fontColor":"#222222"},"__typename":"QuiltComponent"},{"id":"community.widget.breadcrumbWidget","props":{"backgroundColor":"var(--lia-bs-primary)","linkHighlightColor":"#FFFFFF","visualEffects":{"showBottomBorder":false},"backgroundOpacity":60,"linkTextColor":"#FFFFFF"},"__typename":"QuiltComponent"}],"__typename":"QuiltWrapperSection"},"footer":{"backgroundImageProps":{"assetName":null,"backgroundSize":"COVER","backgroundRepeat":"NO_REPEAT","backgroundPosition":"CENTER_CENTER","lastModified":null,"__typename":"BackgroundImageProps"},"backgroundColor":"var(--lia-bs-body-color)","items":[{"id":"custom.widget.Beta_Footer","props":{"widgetVisibility":"signedInOrAnonymous","useTitle":true,"useBackground":false,"title":"","lazyLoad":false},"__typename":"QuiltComponent"},{"id":"custom.widget.Tag_Manager_Helper","props":{"widgetVisibility":"signedInOrAnonymous","useTitle":true,"useBackground":false,"title":"","lazyLoad":false},"__typename":"QuiltComponent"},{"id":"custom.widget.Consent_Blackbar","props":{"widgetVisibility":"signedInOrAnonymous","useTitle":true,"useBackground":false,"title":"","lazyLoad":false},"__typename":"QuiltComponent"}],"__typename":"QuiltWrapperSection"},"__typename":"QuiltWrapper","localOverride":false},"localOverride":false},"CachedAsset:component:custom.widget.GainsightShared-en-us-1746693083847":{"__typename":"CachedAsset","id":"component:custom.widget.GainsightShared-en-us-1746693083847","value":{"component":{"id":"custom.widget.GainsightShared","template":{"id":"GainsightShared","markupLanguage":"HTML","style":null,"texts":{},"defaults":{"config":{"applicablePages":[],"description":"Shared functions for Gainsight integration","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"components":[{"id":"custom.widget.GainsightShared","form":null,"config":null,"props":[],"__typename":"Component"}],"grouping":"TEXTHTML","__typename":"ComponentTemplate"},"properties":{"config":{"applicablePages":[],"description":"Shared functions for Gainsight integration","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"form":null,"__typename":"Component","localOverride":false},"globalCss":null,"form":null},"localOverride":false},"CachedAsset:component:custom.widget.Beta_MetaNav-en-us-1746693083847":{"__typename":"CachedAsset","id":"component:custom.widget.Beta_MetaNav-en-us-1746693083847","value":{"component":{"id":"custom.widget.Beta_MetaNav","template":{"id":"Beta_MetaNav","markupLanguage":"HANDLEBARS","style":null,"texts":{},"defaults":{"config":{"applicablePages":[],"description":"MetaNav menu at the top of every page.","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"components":[{"id":"custom.widget.Beta_MetaNav","form":null,"config":null,"props":[],"__typename":"Component"}],"grouping":"CUSTOM","__typename":"ComponentTemplate"},"properties":{"config":{"applicablePages":[],"description":"MetaNav menu at the top of every page.","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"form":null,"__typename":"Component","localOverride":false},"globalCss":null,"form":null},"localOverride":false},"CachedAsset:component:custom.widget.Beta_Footer-en-us-1746693083847":{"__typename":"CachedAsset","id":"component:custom.widget.Beta_Footer-en-us-1746693083847","value":{"component":{"id":"custom.widget.Beta_Footer","template":{"id":"Beta_Footer","markupLanguage":"HANDLEBARS","style":null,"texts":{},"defaults":{"config":{"applicablePages":[],"description":"DevCentral´s custom footer.","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"components":[{"id":"custom.widget.Beta_Footer","form":null,"config":null,"props":[],"__typename":"Component"}],"grouping":"CUSTOM","__typename":"ComponentTemplate"},"properties":{"config":{"applicablePages":[],"description":"DevCentral´s custom footer.","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"form":null,"__typename":"Component","localOverride":false},"globalCss":null,"form":null},"localOverride":false},"CachedAsset:component:custom.widget.Tag_Manager_Helper-en-us-1746693083847":{"__typename":"CachedAsset","id":"component:custom.widget.Tag_Manager_Helper-en-us-1746693083847","value":{"component":{"id":"custom.widget.Tag_Manager_Helper","template":{"id":"Tag_Manager_Helper","markupLanguage":"HANDLEBARS","style":null,"texts":{},"defaults":{"config":{"applicablePages":[],"description":"Helper widget to inject Tag Manager scripts into head element","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"components":[{"id":"custom.widget.Tag_Manager_Helper","form":null,"config":null,"props":[],"__typename":"Component"}],"grouping":"CUSTOM","__typename":"ComponentTemplate"},"properties":{"config":{"applicablePages":[],"description":"Helper widget to inject Tag Manager scripts into head element","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"form":null,"__typename":"Component","localOverride":false},"globalCss":null,"form":null},"localOverride":false},"CachedAsset:component:custom.widget.Consent_Blackbar-en-us-1746693083847":{"__typename":"CachedAsset","id":"component:custom.widget.Consent_Blackbar-en-us-1746693083847","value":{"component":{"id":"custom.widget.Consent_Blackbar","template":{"id":"Consent_Blackbar","markupLanguage":"HTML","style":null,"texts":{},"defaults":{"config":{"applicablePages":[],"description":"","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"components":[{"id":"custom.widget.Consent_Blackbar","form":null,"config":null,"props":[],"__typename":"Component"}],"grouping":"TEXTHTML","__typename":"ComponentTemplate"},"properties":{"config":{"applicablePages":[],"description":"","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"form":null,"__typename":"Component","localOverride":false},"globalCss":null,"form":null},"localOverride":false},"CachedAsset:text:en_US-components/community/Breadcrumb-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/community/Breadcrumb-1744046271000","value":{"navLabel":"Breadcrumbs","dropdown":"Additional parent page navigation"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageBanner-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageBanner-1744046271000","value":{"messageMarkedAsSpam":"This post has been marked as spam","messageMarkedAsSpam@board:TKB":"This article has been marked as spam","messageMarkedAsSpam@board:BLOG":"This post has been marked as spam","messageMarkedAsSpam@board:FORUM":"This discussion has been marked as spam","messageMarkedAsSpam@board:OCCASION":"This event has been marked as spam","messageMarkedAsSpam@board:IDEA":"This idea has been marked as spam","manageSpam":"Manage Spam","messageMarkedAsAbuse":"This post has been marked as abuse","messageMarkedAsAbuse@board:TKB":"This article has been marked as abuse","messageMarkedAsAbuse@board:BLOG":"This post has been marked as abuse","messageMarkedAsAbuse@board:FORUM":"This discussion has been marked as abuse","messageMarkedAsAbuse@board:OCCASION":"This event has been marked as abuse","messageMarkedAsAbuse@board:IDEA":"This idea has been marked as abuse","preModCommentAuthorText":"This comment will be published as soon as it is approved","preModCommentModeratorText":"This comment is awaiting moderation","messageMarkedAsOther":"This post has been rejected due to other reasons","messageMarkedAsOther@board:TKB":"This article has been rejected due to other reasons","messageMarkedAsOther@board:BLOG":"This post has been rejected due to other reasons","messageMarkedAsOther@board:FORUM":"This discussion has been rejected due to other reasons","messageMarkedAsOther@board:OCCASION":"This event has been rejected due to other reasons","messageMarkedAsOther@board:IDEA":"This idea has been rejected due to other reasons","messageArchived":"This post was archived on {date}","relatedUrl":"View Related Content","relatedContentText":"Showing related content","archivedContentLink":"View Archived Content"},"localOverride":false},"CachedAsset:text:en_US-components/tkbs/TkbArticleWidget-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/tkbs/TkbArticleWidget-1744046271000","value":{},"localOverride":false},"Category:category:Forums":{"__typename":"Category","id":"category:Forums","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Forum:board:TechnicalForum":{"__typename":"Forum","id":"board:TechnicalForum","forumPolicies":{"__typename":"ForumPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"boardPolicies":{"__typename":"BoardPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Forum:board:WaterCooler":{"__typename":"Forum","id":"board:WaterCooler","forumPolicies":{"__typename":"ForumPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"boardPolicies":{"__typename":"BoardPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Tkb:board:DevCentralNews":{"__typename":"Tkb","id":"board:DevCentralNews","tkbPolicies":{"__typename":"TkbPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"boardPolicies":{"__typename":"BoardPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:GroupsCategory":{"__typename":"Category","id":"category:GroupsCategory","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:F5-Groups":{"__typename":"Category","id":"category:F5-Groups","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:CommunityGroups":{"__typename":"Category","id":"category:CommunityGroups","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Occasion:board:Events":{"__typename":"Occasion","id":"board:Events","boardPolicies":{"__typename":"BoardPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"occasionPolicies":{"__typename":"OccasionPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Idea:board:Suggestions":{"__typename":"Idea","id":"board:Suggestions","boardPolicies":{"__typename":"BoardPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"ideaPolicies":{"__typename":"IdeaPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:CrowdSRC":{"__typename":"Category","id":"category:CrowdSRC","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Tkb:board:codeshare":{"__typename":"Tkb","id":"board:codeshare","tkbPolicies":{"__typename":"TkbPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"boardPolicies":{"__typename":"BoardPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Tkb:board:communityarticles":{"__typename":"Tkb","id":"board:communityarticles","tkbPolicies":{"__typename":"TkbPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"boardPolicies":{"__typename":"BoardPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Tkb:board:security-insights":{"__typename":"Tkb","id":"board:security-insights","tkbPolicies":{"__typename":"TkbPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"boardPolicies":{"__typename":"BoardPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Tkb:board:article-series":{"__typename":"Tkb","id":"board:article-series","tkbPolicies":{"__typename":"TkbPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"boardPolicies":{"__typename":"BoardPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"QueryVariables:TopicReplyList:message:303455:11":{"__typename":"QueryVariables","id":"TopicReplyList:message:303455:11","value":{"id":"message:303455","first":10,"sorts":{"postTime":{"direction":"ASC"}},"repliesFirst":3,"repliesFirstDepthThree":1,"repliesSorts":{"postTime":{"direction":"ASC"}},"useAvatar":true,"useAuthorLogin":true,"useAuthorRank":true,"useBody":true,"useKudosCount":true,"useTimeToRead":false,"useMedia":false,"useReadOnlyIcon":false,"useRepliesCount":true,"useSearchSnippet":false,"useAcceptedSolutionButton":false,"useSolvedBadge":false,"useAttachments":false,"attachmentsFirst":5,"useTags":true,"useNodeAncestors":false,"useUserHoverCard":false,"useNodeHoverCard":false,"useModerationStatus":true,"usePreviewSubjectModal":false,"useMessageStatus":true}},"ROOT_MUTATION":{"__typename":"Mutation"},"CachedAsset:text:en_US-components/community/Navbar-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/community/Navbar-1744046271000","value":{"community":"Community Home","inbox":"Inbox","manageContent":"Manage Content","tos":"Terms of Service","forgotPassword":"Forgot Password","themeEditor":"Theme Editor","edit":"Edit Navigation Bar","skipContent":"Skip to content","migrated-link-9":"Groups","migrated-link-7":"Technical Articles","migrated-link-8":"DevCentral News","migrated-link-1":"Technical Forum","migrated-link-10":"Community Groups","migrated-link-2":"Water Cooler","migrated-link-11":"F5 Groups","Common-external-link":"How Do I...?","migrated-link-0":"Forums","article-series":"Article Series","migrated-link-5":"Community Articles","migrated-link-6":"Articles","security-insights":"Security Insights","migrated-link-3":"CrowdSRC","migrated-link-4":"CodeShare","migrated-link-12":"Events","migrated-link-13":"Suggestions"},"localOverride":false},"CachedAsset:text:en_US-components/community/NavbarHamburgerDropdown-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/community/NavbarHamburgerDropdown-1744046271000","value":{"hamburgerLabel":"Side Menu"},"localOverride":false},"CachedAsset:text:en_US-components/community/BrandLogo-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/community/BrandLogo-1744046271000","value":{"logoAlt":"Khoros","themeLogoAlt":"Brand Logo"},"localOverride":false},"CachedAsset:text:en_US-components/community/NavbarTextLinks-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/community/NavbarTextLinks-1744046271000","value":{"more":"More"},"localOverride":false},"CachedAsset:text:en_US-components/authentication/AuthenticationLink-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/authentication/AuthenticationLink-1744046271000","value":{"title.login":"Sign In","title.registration":"Register","title.forgotPassword":"Forgot Password","title.multiAuthLogin":"Sign In"},"localOverride":false},"CachedAsset:text:en_US-components/nodes/NodeLink-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/nodes/NodeLink-1744046271000","value":{"place":"Place {name}"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageView/MessageViewStandard-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageView/MessageViewStandard-1744046271000","value":{"anonymous":"Anonymous","author":"{messageAuthorLogin}","authorBy":"{messageAuthorLogin}","board":"{messageBoardTitle}","replyToUser":" to {parentAuthor}","showMoreReplies":"Show More","replyText":"Reply","repliesText":"Replies","markedAsSolved":"Marked as Solution","movedMessagePlaceholder.BLOG":"{count, plural, =0 {This comment has been} other {These comments have been} }","movedMessagePlaceholder.TKB":"{count, plural, =0 {This comment has been} other {These comments have been} }","movedMessagePlaceholder.FORUM":"{count, plural, =0 {This reply has been} other {These replies have been} }","movedMessagePlaceholder.IDEA":"{count, plural, =0 {This comment has been} other {These comments have been} }","movedMessagePlaceholder.OCCASION":"{count, plural, =0 {This comment has been} other {These comments have been} }","movedMessagePlaceholderUrlText":"moved.","messageStatus":"Status: ","statusChanged":"Status changed: {previousStatus} to {currentStatus}","statusAdded":"Status added: {status}","statusRemoved":"Status removed: {status}","labelExpand":"expand replies","labelCollapse":"collapse replies","unhelpfulReason.reason1":"Content is outdated","unhelpfulReason.reason2":"Article is missing information","unhelpfulReason.reason3":"Content is for a different Product","unhelpfulReason.reason4":"Doesn't match what I was searching for"},"localOverride":false},"CachedAsset:text:en_US-components/messages/ThreadedReplyList-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/ThreadedReplyList-1744046271000","value":{"title":"{count, plural, one{# Reply} other{# Replies}}","title@board:BLOG":"{count, plural, one{# Comment} other{# Comments}}","title@board:TKB":"{count, plural, one{# Comment} other{# Comments}}","title@board:IDEA":"{count, plural, one{# Comment} other{# Comments}}","title@board:OCCASION":"{count, plural, one{# Comment} other{# Comments}}","noRepliesTitle":"No Replies","noRepliesTitle@board:BLOG":"No Comments","noRepliesTitle@board:TKB":"No Comments","noRepliesTitle@board:IDEA":"No Comments","noRepliesTitle@board:OCCASION":"No Comments","noRepliesDescription":"Be the first to reply","noRepliesDescription@board:BLOG":"Be the first to comment","noRepliesDescription@board:TKB":"Be the first to comment","noRepliesDescription@board:IDEA":"Be the first to comment","noRepliesDescription@board:OCCASION":"Be the first to comment","messageReadOnlyAlert:BLOG":"Comments have been turned off for this post","messageReadOnlyAlert:TKB":"Comments have been turned off for this article","messageReadOnlyAlert:IDEA":"Comments have been turned off for this idea","messageReadOnlyAlert:FORUM":"Replies have been turned off for this discussion","messageReadOnlyAlert:OCCASION":"Comments have been turned off for this event"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageReplyCallToAction-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageReplyCallToAction-1744046271000","value":{"leaveReply":"Leave a reply...","leaveReply@board:BLOG@message:root":"Leave a comment...","leaveReply@board:TKB@message:root":"Leave a comment...","leaveReply@board:IDEA@message:root":"Leave a comment...","leaveReply@board:OCCASION@message:root":"Leave a comment...","repliesTurnedOff.FORUM":"Replies are turned off for this topic","repliesTurnedOff.BLOG":"Comments are turned off for this topic","repliesTurnedOff.TKB":"Comments are turned off for this topic","repliesTurnedOff.IDEA":"Comments are turned off for this topic","repliesTurnedOff.OCCASION":"Comments are turned off for this topic","infoText":"Stop poking me!"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/common/QueryHandler-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/common/QueryHandler-1744046271000","value":{"title":"Query Handler"},"localOverride":false},"CachedAsset:text:en_US-components/community/NavbarDropdownToggle-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/community/NavbarDropdownToggle-1744046271000","value":{"ariaLabelClosed":"Press the down arrow to open the menu"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageSubject-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageSubject-1744046271000","value":{"noSubject":"(no subject)"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageBody-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageBody-1744046271000","value":{"showMessageBody":"Show More","mentionsErrorTitle":"{mentionsType, select, board {Board} user {User} message {Message} other {}} No Longer Available","mentionsErrorMessage":"The {mentionsType} you are trying to view has been removed from the community.","videoProcessing":"Video is being processed. Please try again in a few minutes.","bannerTitle":"Video provider requires cookies to play the video. Accept to continue or {url} it directly on the provider's site.","buttonTitle":"Accept","urlText":"watch"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageCustomFields-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageCustomFields-1744046271000","value":{"CustomField.default.label":"Value of {name}"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageRevision-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageRevision-1744046271000","value":{"lastUpdatedDatePublished":"{publishCount, plural, one{Published} other{Updated}} {date}","lastUpdatedDateDraft":"Created {date}","version":"Version {major}.{minor}"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageReplyButton-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageReplyButton-1744046271000","value":{"repliesCount":"{count}","title":"Reply","title@board:BLOG@message:root":"Comment","title@board:TKB@message:root":"Comment","title@board:IDEA@message:root":"Comment","title@board:OCCASION@message:root":"Comment"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageAuthorBio-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageAuthorBio-1744046271000","value":{"sendMessage":"Send Message","actionMessage":"Follow this blog board to get notified when there's new activity","coAuthor":"CO-PUBLISHER","contributor":"CONTRIBUTOR","userProfile":"View Profile","iconlink":"Go to {name} {type}"},"localOverride":false},"CachedAsset:text:en_US-components/guides/GuideBottomNavigation-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/guides/GuideBottomNavigation-1744046271000","value":{"nav.label":"Previous/Next Page","nav.previous":"Previous","nav.next":"Next"},"localOverride":false},"CachedAsset:text:en_US-components/tags/TagView/TagViewChip-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/tags/TagView/TagViewChip-1744046271000","value":{"tagLabelName":"Tag name {tagName}"},"localOverride":false},"CachedAsset:text:en_US-components/users/UserLink-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/users/UserLink-1744046271000","value":{"authorName":"View Profile: {author}","anonymous":"Anonymous"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/users/UserRank-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/users/UserRank-1744046271000","value":{"rankName":"{rankName}","userRank":"Author rank {rankName}"},"localOverride":false},"CachedAsset:text:en_US-components/users/UserRegistrationDate-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/users/UserRegistrationDate-1744046271000","value":{"noPrefix":"{date}","withPrefix":"Joined {date}"},"localOverride":false},"CachedAsset:text:en_US-components/customComponent/CustomComponent-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-components/customComponent/CustomComponent-1744046271000","value":{"errorMessage":"Error rendering component id: {customComponentId}","bannerTitle":"Video provider requires cookies to play the video. Accept to continue or {url} it directly on the provider's site.","buttonTitle":"Accept","urlText":"watch"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/users/UserAvatar-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/users/UserAvatar-1744046271000","value":{"altText":"{login}'s avatar","altTextGeneric":"User's avatar"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/ranks/UserRankLabel-1744046271000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/ranks/UserRankLabel-1744046271000","value":{"altTitle":"Icon for {rankName} rank"},"localOverride":false}}}},"page":"/kbs/TkbMessagePage/TkbMessagePage","query":{"boardId":"technicalarticles","messageSubject":"verified-design-ssl-orchestrator-with-mcafee-web-gateway-part-1","messageId":"303455"},"buildId":"-gVUpXaWnPcjlrLJZ92B7","runtimeConfig":{"buildInformationVisible":false,"logLevelApp":"info","logLevelMetrics":"info","openTelemetryClientEnabled":false,"openTelemetryConfigName":"f5","openTelemetryServiceVersion":"25.3.0","openTelemetryUniverse":"prod","openTelemetryCollector":"http://localhost:4318","openTelemetryRouteChangeAllowedTime":"5000","apolloDevToolsEnabled":false,"inboxMuteWipFeatureEnabled":false},"isFallback":false,"isExperimentalCompile":false,"dynamicIds":["./components/customComponent/CustomComponent/CustomComponent.tsx","./components/community/Navbar/NavbarWidget.tsx","./components/community/Breadcrumb/BreadcrumbWidget.tsx","./components/tkbs/TkbArticleWidget/TkbArticleWidget.tsx","./components/messages/MessageView/MessageViewStandard/MessageViewStandard.tsx","./components/messages/ThreadedReplyList/ThreadedReplyList.tsx","./components/customComponent/CustomComponentContent/TemplateContent.tsx","../shared/client/components/common/List/UnwrappedList/UnwrappedList.tsx","./components/tags/TagView/TagView.tsx","./components/tags/TagView/TagViewChip/TagViewChip.tsx","./components/customComponent/CustomComponentContent/HtmlContent.tsx","./components/customComponent/CustomComponentContent/CustomComponentScripts.tsx"],"appGip":true,"scriptLoader":[]}
