Turn off client auth if uri equals

Just brainstorming here.... you will have to use a less secure profile until they come in then change the profile and force a SSL::renegotiate if they are not using /register. Something like...

when HTTP_REQUEST {
  if {!([HTTP::uri] eq "/register")} {
    SSL::profile ssl_2way
    SSL::renegotiate
  }
}

But this will make normal connections take longer to establish as a result because its a two step process for them instead of one.

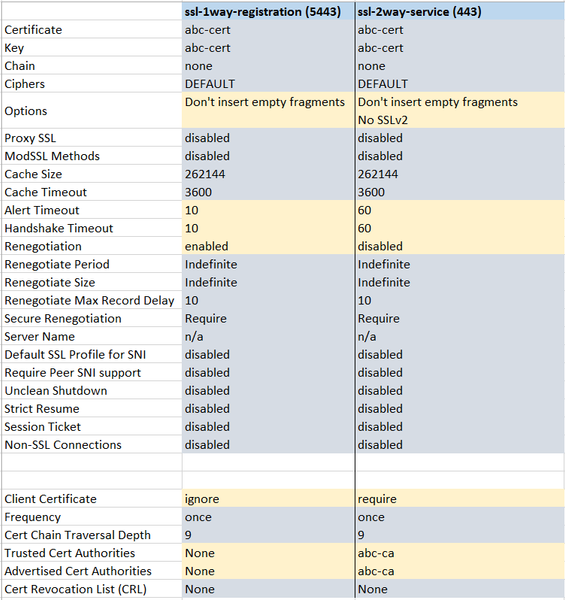

Does anyone have any suggestions? Is setting the 2-way ssl profile to "ignore" going to work? Currently it does not appear to work.

The problem here is you want to make layer 7 decisions on something that has happened in the past. The SSL connection has already been negotiated. My recommendation is when you make your decision, redirect them to virtual servers which have the SSL setup the way you want it.

when HTTP_REQUEST {
  if {not ([HTTP::uri] eq "/register")} {
    HTTP::redirect "https://[HTTP::host]:4443/"
  }
}

Then on port 4443 setup a virtual server with 2way SSL to the same backend pool.

This sort of thing becomes a bit easier with APM, but here's an iRule that comes close to the same functionality:

when CLIENTSSL_CLIENTCERT {
    if { [SSL::cert count] < 1 } {
         if the client did not present a certificate - fail
        reject
    } else {
         do something with the cert here
    }
    HTTP::release
}
when HTTP_REQUEST {
     non-registration URI space requested and F5AUTH cookie does not exist - prompt for client certificate
    if { not ( [HTTP::uri] equals "/favicon.ico" ) and not ( [HTTP::uri] starts_with "/register" ) and not ( [HTTP::cookie exists F5AUTH] ) } {
         invalidate SSL and renegotiate
        HTTP::collect
        SSL::session invalidate
        SSL::authenticate always
        SSL::authenticate depth 9
        SSL::cert mode require
        SSL::renegotiate
    } elseif { [HTTP::cookie exists F5AUTH] } {
         F5AUTH cookie exists - send HTTP header data
        if { [table lookup -subtable CERTDATA [HTTP::cookie value F5AUTH]] ne "" } {
            HTTP::header replace X-CLIENT-CERT [table lookup -subtable CERTDATA [HTTP::cookie value F5AUTH]]
        }
    }
}
when HTTP_REQUEST_SEND {
    clientside {
        if { ( [SSL::cert count] > 0 ) and not ( [HTTP::cookie exists F5AUTH] ) } {
             generate a GUID
            set uniqueid "_[string range [AES::key 256] 34 end]"

             add cert to local session table
            table add -subtable CERTDATA $uniqueid [X509::subject [SSL::cert 0]]
        }
    }
}
when HTTP_RESPONSE {
     if the uniqueid variable is set - send the F5AUTH cookie to client
    if { [info exists uniqueid] } {
        HTTP::header insert "Set-Cookie" "F5AUTH=$uniqueid; path=/; secure; HTTPOnly"
        unset uniqueid
    }
}

Configure your client SSL profile to ignore client certificates. The above iRule will trigger an SSL renegotiation for any URL that isn't in the /register namespace, and if the F5AUTH cookie does not exist. Once the client has presented a certificate, the F5AUTH cookie is written to the client so that the routine is never triggered again. The iRule also creates a session table entry, based on the unique ID of the F5AUTH cookie, so that you can store certificate data for later requests.

Try this (minor update):

when CLIENTSSL_CLIENTCERT {
    if { [SSL::cert count] < 1 } {
         if the client did not present a certificate - fail
        reject
    } else {
         do something with the cert here
    }
    HTTP::release
}
when CLIENT_ACCEPTED {
    set default_pool [LB::server pool]
}
when HTTP_REQUEST {
     non-registration URI space requested and F5AUTH cookie does not exist - prompt for client certificate
    if { not ( [HTTP::uri] equals "/favicon.ico" ) and not ( [HTTP::uri] starts_with "/register" ) and not ( [HTTP::cookie exists F5AUTH] ) } {
         invalidate SSL and renegotiate
        HTTP::collect
        SSL::session invalidate
        SSL::authenticate always
        SSL::authenticate depth 9
        SSL::cert mode require
        SSL::renegotiate
    } elseif { [HTTP::cookie exists F5AUTH] } {
         F5AUTH cookie exists - send HTTP header data
        if { [table lookup -subtable CERTDATA [HTTP::cookie value F5AUTH]] ne "" } {
            HTTP::header replace X-CLIENT-CERT [table lookup -subtable CERTDATA [HTTP::cookie value F5AUTH]]
        }
    }

    if { [HTTP::uri] starts_with "/register" } {
        pool local-pool-2
    } else {
        pool $default_pool
    }
}
when HTTP_REQUEST_SEND {
    clientside {
        if { ( [SSL::cert count] > 0 ) and not ( [HTTP::cookie exists F5AUTH] ) } {
             generate a GUID
            set uniqueid "_[string range [AES::key 256] 34 end]"

             add cert to local session table
            table add -subtable CERTDATA $uniqueid [X509::subject [SSL::cert 0]]
        }
    }
}
when HTTP_RESPONSE {
     if the uniqueid variable is set - send the F5AUTH cookie to client
    if { [info exists uniqueid] } {
        HTTP::header insert "Set-Cookie" "F5AUTH=$uniqueid; path=/; secure; HTTPOnly"
        unset uniqueid
    }
}

Three things:

1. The HTTP::header insert SSLClientCertSubject string appears to be the biggest issue. Since you're generating the SSL renegotiation in this condition, there's no certificate data yet.



2. The header scrub/insert stuff shouldn't be killing the connection where they are, but they're not going to do what you'd expect since that condition is causing an SSL renegotiation (which exits the event). At what point are you trying to insert a header?



3. If you look at the if { [HTTP::uri] starts_with "/register" } section, you still have "pool local-pool-2" assigned, which works in my environment, but not likely in yours.



I just need the client cert subject inserted into the header before the request reaches the servers. Our app uses that cert subject to identify the customer. I have removed all of my scrub/insert commands and the resets have gone away, but now the LTM (servers) are sending " Level: Fatal, Description: Insufficient Security)". After this happens there is a bunch of "ACK, Ignored Unkown Record, ACK, Ignored Unknown Record" back and forth talk. I'm still not seeing the client present its cert.

No worries about the local-pool-2, I covered that.

Okay, I've made some improvements. I was getting random faults using the table command in HTTP_REQUEST_SEND. Also notice that I've added the registration pool definition at the top as a global variable, and that you can insert multiple certificate values (if you need to).

when RULE_INIT {
     user-defined: registation pool
    set static::REGPOOL "local-pool-2"
}
when CLIENTSSL_CLIENTCERT {
    if { [SSL::cert count] < 1 } {
         if the client did not present a certificate - fail
        reject
    } else {
         set a temporary cert variable here
        set clientcertdata [X509::subject [SSL::cert 0]]

         multiple cert values could be inserted as a list of lists: [list [list name value] [list name value]]
         example:
        set clientcertdata [list [list "CertSubject" [X509::subject [SSL::cert 0]]] [list "CertIssuer" [X509::issuer [SSL::cert 0]]]]
    }
    HTTP::release
}
when CLIENT_ACCEPTED {
    set default_pool [LB::server pool]
}
when HTTP_REQUEST {
     non-registration URI space requested and F5AUTH cookie does not exist - prompt for client certificate
    if { not ( [HTTP::uri] equals "/favicon.ico" ) and not ( [HTTP::uri] starts_with "/private" ) and not ( [HTTP::cookie exists F5AUTH] ) } {
         invalidate SSL and renegotiate
        HTTP::collect
        SSL::session invalidate
        SSL::authenticate always
        SSL::authenticate depth 9
        SSL::cert mode require
        SSL::renegotiate
    } elseif { [HTTP::cookie exists F5AUTH] } {
         F5AUTH cookie exists - send HTTP header data
        if { [table lookup -subtable CERTDATA [HTTP::cookie value F5AUTH]] ne "" } {
             insert cert subject
            HTTP::header replace SSLClientCertSubject [table lookup -subtable CERTDATA [HTTP::cookie value F5AUTH]]

             if choosing to use a list of cert data:
            foreach x [table lookup -subtable CERTDATA [HTTP::cookie value F5AUTH]] {
               HTTP::header replace [lindex $x 0] [lindex $x 1]
            }
        }
    }

    if { [HTTP::uri] starts_with "/private" } {
        pool $static::REGPOOL
    } else {
        pool $default_pool
    }
}
when HTTP_REQUEST_SEND {
    clientside {
        if { ( [info exists clientcertdata] ) and not ( [HTTP::cookie exists F5AUTH] ) } {
             send first header
            HTTP::header replace SSLClientCertSubject $clientcertdata

             if choosing to use a list of cert data:
            foreach x $clientcertdata {
               HTTP::header replace [lindex $x 0] [lindex $x 1]
            }
        }
    }
}
when HTTP_RESPONSE {
     if the uniqueid variable is set - send the F5AUTH cookie to client
    if { [info exists clientcertdata] } {
         generate a GUID
        set uniqueid "_[string range [AES::key 256] 34 end]"

         insert the table entry
        table add -subtable CERTDATA $uniqueid $clientcertdata 3600

         send the cookie
        HTTP::header insert "Set-Cookie" "F5AUTH=$uniqueid; path=/; secure; HTTPOnly"

         unset the clientcertdata variable
        unset clientcertdata
    }
}

That's a tough one. This entire model relies on the ability to initiate (and process) an SSL renegotiation. One alternative may simply be to use two separate VIPs, one for regular traffic and one for registration traffic, and switch between them based on the URI.

After some serious devcentral digging I was finally able to piece together a working iRule. The key was to set the cert mode to request (not require) within the client ssl profile, and then use the [SSL::verify_result] command in the iRule. Below is the iRule so far, please let me know if you see any potential flaws or security holes or maybe some tweaks to make it more efficient.

when CLIENTSSL_CLIENTCERT {
    if {[SSL::cert count] < 1}{set cert_count 0}
    if {[SSL::cert count] > 0}{set cert_count 1}
    set ssl_status_code [SSL::verify_result]
    set ssl_status_desc [X509::verify_cert_error_string [SSL::verify_result]]
    log local0. "$ssl_status_code $ssl_status_desc"
}
when HTTP_REQUEST {
     Reject requests to the service if a cert was not presented
    if {[HTTP::uri] contains "/service"}{
            if {$cert_count == 0}{reject}
             Permit requests to the service if a cert was presented and the cert was verified against the CA assigned to the clientssl profile
             A status code of "0" (0 X509_V_OK) means the cert was verified successfully as defined here: http://www.openssl.org/docs/apps/verify.htmlDIAGNOSTICS
            if {($cert_count == 1) and ($ssl_status_code == 0)}{
                scrub existing headers
               HTTP::header remove chain
               HTTP::header remove client
               HTTP::header remove testCert
               HTTP::header remove ClientCert-Subject
               HTTP::header remove SSLClientCertSubject
               HTTP::header remove SSLClientCertThumbprint
                insert cert subject
               HTTP::header insert SSLClientCertSubject [X509::subject [SSL::cert 0]]
             }
        Forward registration requests to the registration pool
        Reject all other scenarios
     } elseif {[HTTP::uri] contains "/register"}{pool register-pl}
       else {reject}
}
