Statistics for Virutual Servers

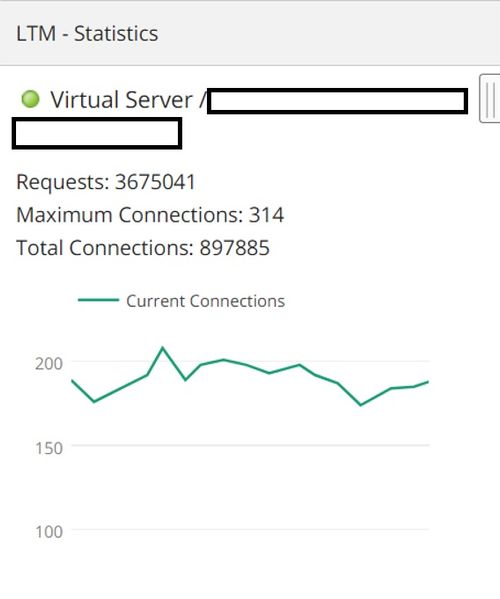

I not clear on the output of the statistics for virtual servers. Mainly on what the F5 LTM considers "Requests" and "Connections". I included a picture of one my my VS statistics. The amount seems high for one VS but i don't know if this is a running total from the time the VS was created or per second or per minute. Need more understanding. Platform is a i7800 with two vCMP.



Jonathan,

application delivery
BIG-IP
devops
LTM
  • jaikumar_f5's avatar
    jaikumar_f5
    Icon for Noctilucent rankNoctilucent
    Feb 15, 2021

    Yes that data is from the time hardware was booted up.

    You can clear the stats & monitor for a time frame as you feel required.

    • Jonathancert's avatar
      Jonathancert
      Icon for Nimbostratus rankNimbostratus
      Feb 16, 2021

      Thank you for the clarification. So, to get a real time statistic i should use the stats from the pool members? I'm only at GUI level but want to learn CLI. Have not found the right command for just getting the statistics. I've been using the "all-properties" for the specific VS, Any advice?



      Jonathan,

  • crodriguez's avatar
    crodriguez
    Ret. Employee
    Feb 18, 2021

    You can view virtual server and pool statistics from the command line using the show command, rather than list. For example, to show traffic statistics for a virtual server named http_vs:

    (tmos)# show /ltm virtual http_vs

    To show traffic statistics for all members in the pool named http_pool:

    (tmos)# show /ltm pool http_pool members

    You can reset statistics for a particular pool, pool member, or virtual server using the reset-stats command. For example, to reset statistics for a virtual server http_vs:

    (tmos)# reset-stats /ltm virtual http_vs

    Hope this helps!
