SSL handshake failure using serverssl (F5 and Citrix Netscaler)
Hello F5 Experts,
I am getting fatal ssl handshake failure(40) right after the server hello message from the Citrix Netscaler which sits and the vendor location. I can see in wireshark that the TLS protocol & ciphers between the F5 and Netscaler are matching so not sure what else it could be. The serverssl profile is failing and the party on the other side has Citrix netscaler. We have F5 LTM at our end.Also, the citrix netscaler presents a wildcard cert to us as part of SSL termination. Could that be a problem for the F5?
Below are few logs from the ssldump output:
New TCP connection 7: 10.104.41.138(56218) <-> 10.104.40.136(443)
7 1 1529673027.5089 (0.0001) C>SV3.1(121) Handshake
ClientHello
Version 3.3
random[32]=
46 f9 98 03 10 6c 14 84 4f 11 4e 81 f0 a0 92 dd
15 07 84 70 8c c4 94 c4 4d 2c ee 76 df d3 34 32
cipher suites
Unknown value 0xc02f
Unknown value 0xc030
Unknown value 0x9c
Unknown value 0x9d
Unknown value 0xc027
Unknown value 0xc028
Unknown value 0xc013
Unknown value 0xc014
TLS_RSA_WITH_AES_128_CBC_SHA256
TLS_RSA_WITH_AES_256_CBC_SHA256
TLS_RSA_WITH_AES_128_CBC_SHA
TLS_RSA_WITH_AES_256_CBC_SHA
Unknown value 0xc012
TLS_RSA_WITH_3DES_EDE_CBC_SHA
Unknown value 0xff
compression methods
NULL
3 2 1529673027.5333 (0.0299) S>CV3.3(74) Handshake
ServerHello
Version 3.3
random[32]=
5b 2c f5 46 8d 5d 9a 7e 02 10 6e 1c 90 3f d6 02
cb 4c be 17 cb 7c 0c 1f 55 c8 77 fc bd 85 21 88
session_id[32]=
73 0d 48 68 8d da 73 e5 77 07 3a dc 47 a2 51 40
88 32 a2 3e d6 5c 3a 6b 4e dc c8 2c 28 d2 3c 27
cipherSuite TLS_RSA_WITH_AES_256_CBC_SHA
compressionMethod NULL
3 3 1529673027.5333 (0.0000) C>SV3.3(2) Alert
level fatal
value handshake_failure
2 1529673027.5333 (0.0306) S>C TCP RST
3 1529673027.5334 (0.0000) C>S TCP RST
Please advise. Any help with this would be really appreciated.
Thank you!
can you change Secure Negotiation to Request and test
- AneshCirrostratus
can you change Secure Negotiation to Request and test
- AneshCirrostratus
Can you provide the VIP Configuration?
- natheCirrocumulus
Are you using the default serverssl profile, do you have a monitor to the pool member and is it working? Have you seen https://support.f5.com/csp/article/K15292 and have you checked the logs for more detailed information?
N
- Chase_AbbottEmployee
SSL profile config may also help. Wildcard should be fine. If you're on a version prior to 11.4, the length of the wildcard cert chain could present a problem if it exceeds 32k.

https://support.f5.com/csp/article/K17050

There could be another requirement on either side that is not being met. HSTS or master secret extensions could also play factors.

https://support.f5.com/csp/article/K34019109

The cert should be negotiated at the time of failure as seen in: https://devcentral.f5.com/s/feed/0D51T00006i7gXVSAY

The cert exchange should happen next and contain it's own cert and possibly an intermediary CA. They should be using a standard trusted root CA but if they're not, you'll want to have their cert chain in our system to validate.

https://devcentral.f5.com/s/feed/0D51T00006i7WonSAE

But if you can, provide your SSL profile config and the Netscalars and as Anesh stated, your VIP config. That will help determine where the handshake failure may reside.

If you can provide the contents of their cert (cert NOT key) and chain, that would be easy to identify if it's a one-off or weird multi-chain cert.

- Jer_O__175899Nimbostratus
Is this for monitor traffic or real traffic on a pool that is up?
- AjitAltostratus
Hello All,
@Anesh - I will provide the configuration by tomorrow however I would like to tell you that there is nothing extraordinary in the configuration. Client & server ssl profiles have been applied to the VIP.
@Nathan - Nope, I have not applied the default ssl profile. Monitor has been applied & it is working correctly. I have reviewed the logs at warning level & hence it does not show me anything specific to the failure reason.
@Abbott - I will provide the SSL config tomorrow. The F5 is running on 11.6.2 so the first link is not releavent for my scenario.
Second link again not for my case reason being proxy SSL is disabled & my version of code is lower.
Third link has some useful information but my serverssl profile is configured correctly with the cert,key & chain parameters. However in the wireshark capture or SSL dump above I receive the fatal error right after the Server Hello & the destination server presents its certificate post the fatal error. The certificate is from a trusted root CA(Comodo).
I really appreciate the inputs provided by you all. Please continue to provide your thoughts. I will also continue to deep dive into this issue.
Regards,
Ajit
- AjitAltostratus
Hello Anesh / Chase,
Below is the serverssl profile config:
ltm profile server-ssl abc_443_NP_SLG_https_profile_server-ssl { alert-timeout 10 app-service none authenticate once authenticate-depth 9 authenticate-name none ca-file Comodo_xyz.crt cache-size 262144 cache-timeout 3600 cert abc.crt chain Entrust-EV-256-Bundle-AVX.crt ciphers !SSLv2:!SSLv3:!DTLSv1:!EXP:!MD5:!ADH:!NULL:!LOW:!RC4:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-RSA-AES256-GCM-SHA384:AES128-GCM-SHA256:AES256-GCM-SHA384:ECDHE-RSA-AES128-SHA256:ECDHE-RSA-AES256-SHA384:ECDHE-RSA-AES128-CBC-SHA:ECDHE-RSA-AES256-CBC-SHA:AES128-SHA256:AES256-SHA256:AES128-SHA:AES256-SHA:ECDHE-RSA-DES-CBC3-SHA:DES-CBC3-SHA:+TLSv1_1:+TLSv1 crl-file none defaults-from serverssl description none expire-cert-response-control drop generic-alert enabled handshake-timeout 10 key abc.key mod-ssl-methods disabled mode enabled options { dont-insert-empty-fragments } partition Common passphrase "****" peer-cert-mode require proxy-ssl disabled proxy-ssl-passthrough disabled renegotiate-period indefinite renegotiate-size indefinite renegotiation enabled retain-certificate true secure-renegotiation require![Image Text](/Portals/0/Users/164/20/128420/SSLFailure.PNG?ver=2018-06-25-001012-333)-strict server-name none session-mirroring disabled session-ticket disabled sni-default false sni-require false ssl-forward-proxy disabled ssl-forward-proxy-bypass disabled ssl-sign-hash any strict-resume disabled unclean-shutdown enabled untrusted-cert-response-control drop }

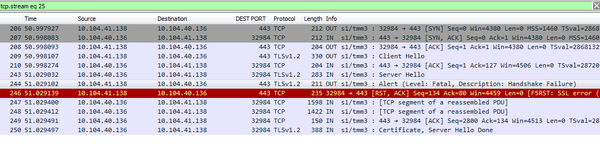

Also, I am attaching a wireshark screenshot of the capture where the SSL handshake fails.
- natheCirrocumulus
I see you have a Comodo certificate in the serverssl, does that mean the netscaler is expected the bigip to send a certificate? This is similar to client authentication and you would only have a cert/key here if the other end needed the bigip to send a certificate to authenticate itself against the backend. Normally this is not required.
For a test have you tried the default serverssl profile?
- AjitAltostratus
@Anesh - I will surely test the connectivity with secure negotiation set to request tomorrow.
@Nathan - I have enabled server auth in my serverssl which means that the netscaler will present a cert to me & I will validate that cert with the comodo intermediate & root bundle.
Also, client auth is enabled at the netscaler end & hence i am present the abc certs to the netscaler.
Regards,
Ajit
- AneshCirrostratus
Did you test the change?
