Forum Discussion
Sabir_Alvi
Altocumulus
AltocumulusiRule to deny not working as expected (http 403 response not working)
So, we have been using iRules for many years to manage whitelisting of application access based on incoming source IP and strings in URL. When the request doesn't match, an HTTP 403 response is sent ...
spalande
Nacreous
NacreousThis should work and give standard browser error for 403. But if it's not working in your case, you can try sending a content to the client in the iRule. Also, please replace matchclass with class match syntax as matchlass has been deprecated
when HTTP_REQUEST {
if { ([class match [string tolower [HTTP::uri]] contains "XYZ_Strings"]) and !([class match [IP::remote_addr] equals "ABC_IPs"]) } {
HTTP::respond 403 content "You don't have authorization to view this page. Access Denied" noserver Content-Type text/html Connection Close Cache-Control no-cache
}
}You can also send custom html page from ifile stored on BIGIP
Sabir_AlviHi Sanjay, thanks for the reply. I tried it, did not work, same response as before even with using content in the syntax.
- spalande
Did you change syntax to class match? Please change it to class match.
Also, would suggest to enable logging in iRule and check for the http trace in developer tools in browser or using fiddler/http watch. Which response code and content do you see there?
- Sabir_Alvi

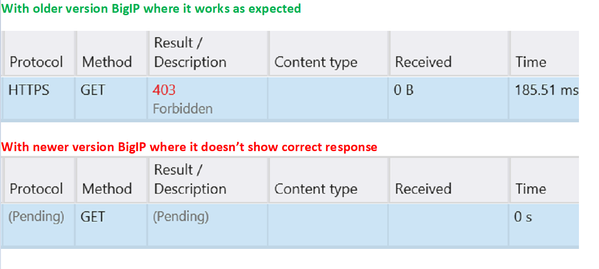

Yes, I have changed syntax to use class match. Please see the trace captured in the browser developer tool below.
- spalande
Can you modify iRule to below and test again?
when HTTP_REQUEST { if { ([class match [string tolower [HTTP::uri]] contains "XYZ_Strings"]) and !([class match [IP::remote_addr] equals "ABC_IPs"]) } { HTTP::respond 403 content "You don't have authorization to view this page. Access Denied" noserver Content-Type text/html Connection Close Cache-Control no-cache return } }also, do you have any other iRule on the VIP that's conflicting here?
If this still doesn't work for you, you might want to log a case with F5 support. Meanwhile, you can enable some logging in iRule, capture the tcpdump and ssldump to analyse it.
