I have done multiple migrations from iSeries to r Series. Let me know if you need any help in similar regards for your projects.

its same like Host /parent or physical hardware and have vCMP child/Guest

The main difference here is that Host /parent or physical hardware runs on an entirely new OS called VELOS or F5OS, not the TMOS, but on vCMP child/Guest  you still have TMOS OS.

In old i Series Host /parent or physical hardware runs on TMOS as well as the vCMP child/Guest  also have TMOS OS.

So when you migrate you have to re-write the parent config from TMSH to r series OS i.e. on F5OS or VELOS OS syntax which is very very much different than TMOS,

Child Images can be migrated with less difficulty as in iSeries also they use TMOS and in r Series child also runs on TMOS.

HTH

🙏

 

Hi Former_newbie,



You can use JOURNEYS tool - BIG-IP upgrade and migration utility.



https://community.f5.com/t5/technical-articles/welcome-to-the-f5-big-ip-migration-assistant-now-the-f5-journeys/ta-p/279673

https://github.com/f5devcentral/f5-journeys



Using Journeys Tool to Migration Apps to F5 BIG-IP

https://www.youtube.com/watch?v=k08swhJCHQo

https://www.youtube.com/watch?v=_Yk-Wuc19nE

HTH

🙏



hi Former_Newbie,

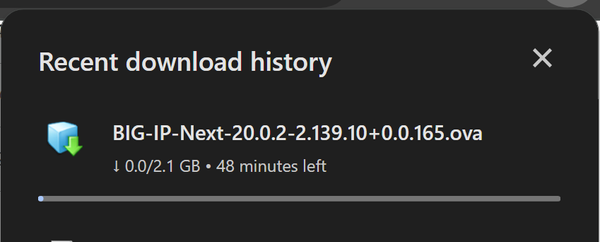

Just got to notice this as I was making a test VM for some testing and  thought to share with you today if this can still help for what you were looking before:

Go to the following Link

https://my.f5.com/manage/s/trials

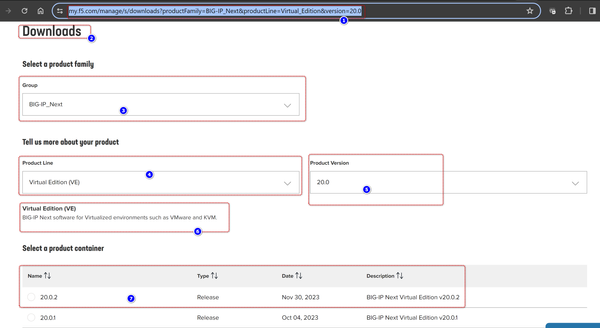

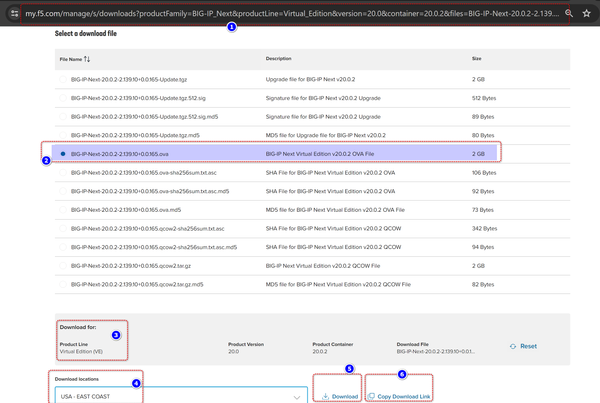

https://my.f5.com/manage/s/downloads?productFamily=BIG-IP_Next&productLine=Virtual_Edition&version=20.0

BIG-IP Next







Try BIG-IP Next for 30 days. BIG-IP Next allows you to exceed the needs of your distributed application portfolio with a centrally managed solution giving you the observability, performance, and security that your applications need. Includes the ability to run software for:

• F5 BIG-IP Next Central Manager
• F5 BIG-IP Next (All shipped modules)
  • VE
  • rSeries / VELOS

    HTH

    🙏

     









At the host level the configuration has to be converted manually.

I follow the r Series command reference guides.

Only Tenant configuration can be converted using Journey Tool.
