Forum Discussion
Michaelyang
Cirrostratus
CirrostratusWhy use mgmt port to monitor ?
Hello, I use BIG-IP VE. I found that F5 uses the mgmt port for monitoring actions when the pool members are on the same subnet as mgmt. But I'm going by the F5 file that the TMM route will take ...
Michaelyang ,

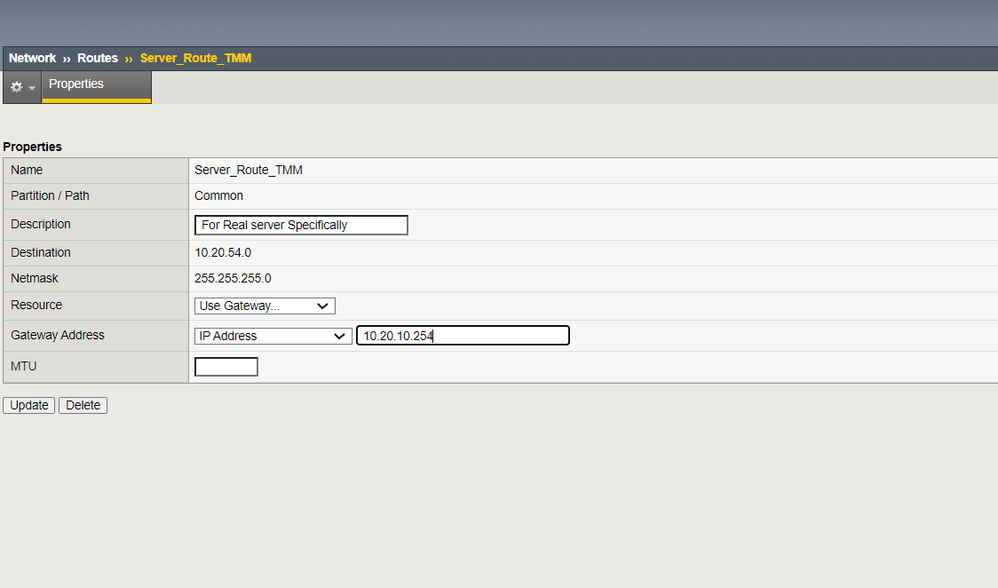

I know you are following F5 Articles , add specific route in F5 it self such as below :> add this Route as a Specific , not as a default route on F5.
> Also Make sure with the Connectivity between traffic subnet "10.20.10.0" and Management subnet "10.20.54.0"
> you are adding default Route and at the same time F5 see real server directly connected with it through managment vlan , So F5 prefer Management Network over TMM.
> Add this Specific Route and Put this Command
#ip route get 10.20.54.2
you should see this real server ip by self address from "10.20.10.0" TMM subnet.
Regards
ClarenceBland
Nimbostratus
NimbostratusA console port can be used in conjunction with a console server, whereas a management port can be used for remote management and setup of a networking device.
