TCP Closing session with wrong SEQ and ACK

Hi ,



While troubleshooting an issue with a connexion towards our LTM , I did a packet capture and I was intrigued by the way our LTM is closing it's TCP sessions.



The client sends a FIN,ACK , the LTM responds with a ACK then a FIN,ACK and finally the client sends a ACK and the session is closed and everyone is happy... except Wireshark !



The LTM seems not to be using the wrong SEQ and ACK numbers in its FIN,ACK and Wireshark flags both packets as TCP out of order ( since the numbers don't match up )

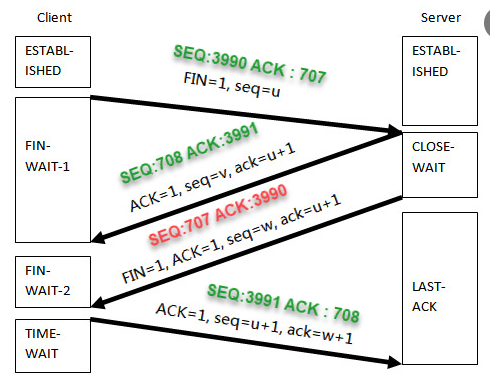

Here is an example :







We are running : BIG-IP 12.1.5.3 Build 0.16.5 Engineering Hotfix



Anyone have an Idea why are we seeing this odd behavior ?



Thanks ,

No RepliesBe the first to reply
