SOLVED: sending IsCompliant, IsKnown and IsManaged via SAML (SSO)

Background
We have an EntraID (Azure/Microsoft365) SAML based VPN using the APM module and were keen to provide a different device pool to domain devices, rather than personal devices (BYOD).  We noted that, in the EntraID logs, it included elements such as whether the device IsCompliant, IsKnown and/or IsManaged:

Wrong step first
We followed part of the exceptionally good video from Matthieu Dierick (https://www.youtube.com/watch?v=DBA84d4VJU8) in which he explains how to configure InTune to make the IsCompliant assertion and push a certificate onto the device to identify it..  and then the BIG-IP Edge client will send that certificate back to be used via an API call against InTune (even if EntraID isn't used for your APM authentication).  To get the API bit to function we needed to follow the guidance in https://my.f5.com/manage/s/article/K00943512 But we aren't that far down the route with InTune and, without pushing that certificate, we got the error "Device ID was not found in session variables" (as explained in https://my.f5.com/manage/s/article/K93969130 )

To get working: Azure steps
It seems exporting these variables isn't natively available through the GUI although there were some pointers available from Azure AD - SAML - Intune - ismanaged attribute - Microsoft Q&A

In short, Navigate to:

• https://portal.azure.com/
• Microsoft EntraID
• Under Manage > App registrations
• (this will default to "owned application") choose "all applications" tab
• Filter by the name of your SAML configuration
• Manage > Manifest
• Take a copy of the manifest incase you want to revert (note that it won't let you save it unless it can parse the input)
• Find the section "optional claims" and inject the following after any groups you pass back:

    "optionalClaims": {
        "accessToken": [],
        "idToken": [],
        "saml2Token": [
            {
                "additionalProperties": [
                    "on_premise_security_identifier"
                ],
                "essential": false,
                "name": "groups",
                "source": null
            },
            {
                "additionalProperties": [
                ],
                "essential": true,
                "name": "is_device_managed",
                "source": null
            },
            {
                "additionalProperties": [
                ],
                "essential": true,
                "name": "is_device_compliant",
                "source": null
            },
            {
                "additionalProperties": [
                ],
                "essential": true,
                "name": "is_device_known",
                "source": null
            }
        ]
    },

To get working: APM steps

In the visual policy editor you can now assign variables to those claims of the form:

session.logon.last.isknown = mcget {session.saml.last.attr.name.http://schemas.microsoft.com/201 4/02/devicecontext/claims/isknown}
session.logon.last.iscompliant = mcget {session.saml.last.attr.name.http://schemas.microsoft.com/201 4/09/devicecontext/claims/iscompliant}
session.logon.last.ismanaged = mcget {session.saml.last.attr.name.http://schemas.microsoft.com/201 2/01/devicecontext/claims/ismanaged}

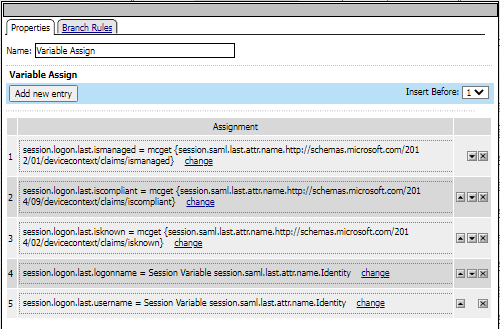

So you can end up with a variable assignment box that looks like:

(just be careful with copy/paste that it doesn't introduce spaces in the session variables)

Then you can do a new general purpose > empty box with a branch rule evaluating:

expr {[mcget {session.logon.last.ismanaged}] == "true"}

Optionally you can record the output of these variables by adding a logging box with the entry:

username=%{session.logon.last.username}, ismanaged=%{session.logon.last.ismanaged}, iscompliant=%{session.logon.last.iscompliant}, isknown=%{session.logon.last.isknown}
