CumulonimbusSNMP Monitoring/OIDs for rSeries
I'm currently configuring the required OIDs for monitoring our new rSeries, but I'm wondering if the provided MIBs contain all information?

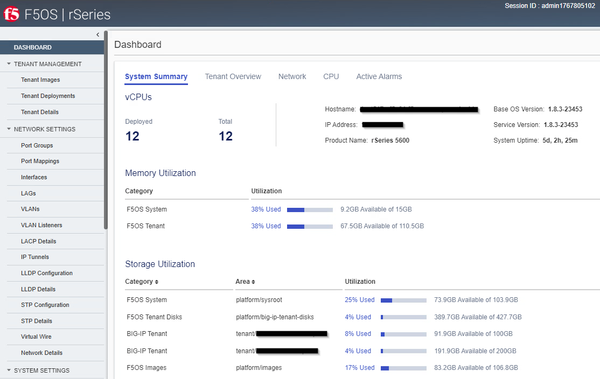

I'm searching especially the values from the GUIs dashboard for Memory Utilization and Storage Utilization like in the following screenshot:
Also the mentioned "Base OS Version" and "Service Version" details seems to be not part of the MIB. I only found it under the OID .1.3.6.1.2.1.1.1.0 -> SNMPv2-MIB::sysDescr.0 = STRING: F5 rSeries-r5600 : Linux 3.10.0-1160.119.1.f5.1.el7_8.x86_64 : Appliance services version 1.8.3-23453.
Where does the GUI render these information from? Is it possible to poll these details via SNMP as well?
Any more details would be very helpful!
Thank you!
Regards,
Stefan :)
2 Replies
- Nikoolayy1
MVP
F5OS rSeries Has opentelemetry exporters from 1.7 and up isn't that a better option for monitoring ?
https://techdocs.f5.com/en-us/f5os-a-1-7-0/relnote-f5os-a-1-7-0/title-new-in.html
- Stefan_Klotz
Thank you for this information, I'll have a deeper look into that.
How can I poll/display these monitoring values on F5OS CLI directly? Just to double check which information are available in comparison to SNMP?
My customer is using checkmk as monitoring solution and from what I found so far, it supports OpenTelemetry first with version 2.4, but we are running 2.3.
I'll double check with the responsible team.
But besides this, where does the F5OS WebGUI retrieves these monitoring values from? Is this somehow compatible with SNMP?
Thank you!
Regards,
Stefan :)
