Redirect iRule for http TimeStamp service

Hi fellows, I have spent couple of days struggling to redirect Time-Stamp service to different port. Basically it's a normal http connection based service.

I Wrote an iRule:

when HTTP_REQUEST
{
if {([HTTP::path] contains "tsa") and ([HTTP::host] contains "8080") }{
HTTP::redirect "http://10.132.24.96:8040[HTTP::uri]"
}
}

It works in a browser but not as a TimeStamp service...

Funny thing is that when I'm accesing it with addres http://10.132.24.96:8040[HTTP::uri] it works fine, but not when I use http://10.132.24.96:8080[HTTP::uri] - the redirected one is not working and I've no idea why...

I Hope I can count on Your advise on this topic. Up-front thanks to anyone who can help.

application delivery
iRules
security
  • Pawel_G_306732's avatar
    Pawel_G_306732
    Jan 19, 2017

    Ok, so I've changed redirect to HTTP::respond 307 Location as redirect can't pass POST.



    Everything works fine now :)



    Thanks for advice on -L switch in curl @Jad.



  • Vijay_E's avatar
    Vijay_E
    Icon for Cirrus rankCirrus
    Jan 18, 2017

    Your iRule looks good. Maybe you can make it a bit more specific by matching on ":8080" instead of just "8080".



    1.Check to see if there are any errors in the logs.



    2.Can you run a curl command to see what kind of redirect or response you are getting ? This will help identify the issue.



  • Vijay_E's avatar
    Vijay_E
    Icon for Cirrus rankCirrus
    Jan 18, 2017

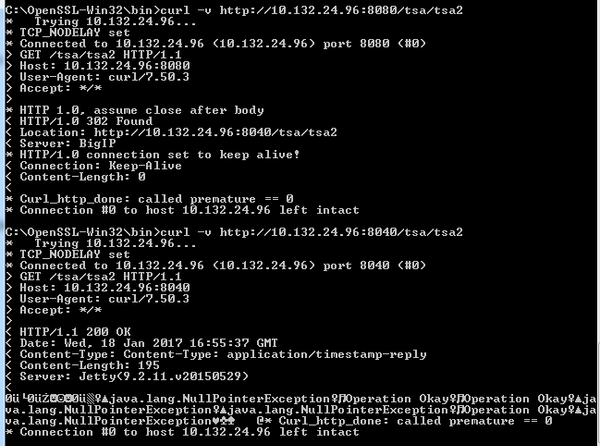

    Based on the CURL output (Location Header), the redirect seems to be working.



  • Stanislas_Piro2's avatar
    Stanislas_Piro2
    Icon for Cumulonimbus rankCumulonimbus
    Jan 18, 2017

    Hi,

    if you want to check port, you can use this irule :

    when HTTP_REQUEST {
    if {([HTTP::path] contains "tsa") and ([TCP::local_port] equals "8080") }{
        HTTP::redirect "http://10.132.24.96:8040[HTTP::uri]"
    }
}
  • Pawel_G_306732's avatar
    Pawel_G_306732
    Icon for Altostratus rankAltostratus
    Jan 19, 2017

    Ok, so I've changed redirect to HTTP::respond 307 Location as redirect can't pass POST.



    Everything works fine now :)



    Thanks for advice on -L switch in curl @Jad.
