AltostratusiRule for non http services
Hello All, Can we configure an iRule for non http services? I have a VIP configured on port 491 with 3 Pool which I am trying to manage using irule but traffic is not hitting irule. when HTTP_REQ...
Joseph_Martin
Employee
EmployeeOne thing to note about the pcap, this MAY still actually be HTTP traffic. However, because this is running on a non-standard port for HTTP, Wireshark will not automatically decode it as such. In Wireshark you can right click on one of the packets in question and select "Decode As.." and select HTTP. If that doesn't work, then I would try decoding as SSL/TLS.
Let us know the results of that.
- Joseph_Martin
Actually, a quick review of the Proficy Webspace Server documentation (https://www.ge.com/digital/documentation/webspace/oxy_ex-1/topics/t_ifix_web_space_modifying_the_host_port.html ) suggests that this is indeed web traffic (since this same server/application is accessible via a browser client) and almost defintely SSL traffic.
If that is indeed the case, you can likely still use an iRule with the HTTP events/commands but you will need install the Webspace server SSL certificate and key on the BIGIP so you can decrypt there.
ndubey2Hello Joseph_Martin, Thanks for the response !
I am unable to decode any of the packet either in http or SSL/TLS. It is not giving me option to decode.
Thanks,
- Joseph_Martin

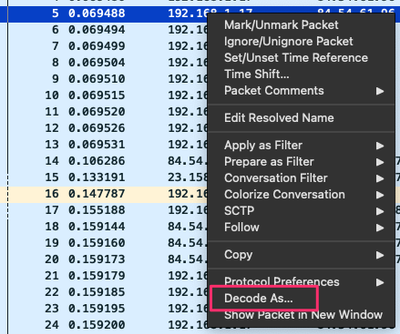

So when you right-click on a packet you don't have the "Decode As..." option like this?
