i-rule to allow specific urls only

I have to configure a VS to allow only two urls & block everything else. for example https://mycompany.com/abc/* & https://mycompany.com/xyz/* should be allowed & everything else should be blocked. Can someone help me witha possible i-rule or a method to achieve the same? TIA

application delivery
iRules
LTM
    • Ashu_Aggarwal's avatar
      Ashu_Aggarwal
      Icon for Cirrus rankCirrus
      Apr 03, 2020

      Thanks fot your response. I tried this but it blocked the whole site. Also which version of bigip are you running on? I have 13.1.7 & i don't see same screen after policy creation.

      • Simon_Blakely's avatar
        Simon_Blakely
        Icon for Employee rankEmployee
        Apr 05, 2020

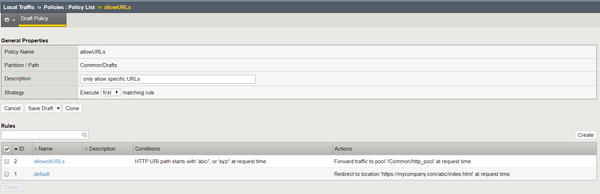

        That policy is missing a leading "/" for the URI paths, because I switched from "contains" to "starts_with" - sorry. Also, make it a case-insensitive check (using the options button)

        HTTP URI path starts with "/abc/", or "/xyz/" at request time

        It's worth persisting with Local Traffic Policies until you get them working - they really are the best solution to start with.

  • Samir's avatar
    Samir
    Icon for MVP rankMVP
    Apr 03, 2020

    @Janet, Your Irule is correct but small modification needed to fulfill actual request.

    when HTTP_REQUEST {
   if { !(([string tolower [HTTP::uri]] starts_with "/abc") or ([string tolower [HTTP::uri]] starts_with "/pqr")) } {
     drop
   }
 }
      • Samir's avatar
        Samir
        Icon for MVP rankMVP
        Apr 04, 2020

         , Thank you so much for feedback. We write the iRule based on your question/assumption. As i believe, you are passing wildcard parameter in "/abe/*" . which may not return proper result. It's is a devcentral tips and modify according to business needs.



        Try switch condition or F5 Policy..



  • Ashu_Aggarwal's avatar
    Ashu_Aggarwal
    Icon for Cirrus rankCirrus
    Apr 03, 2020

    Thanks, but my request is to allow the two uris & dropped everything else. & in dropped request user get http:403 request forbidden.

    • jaikumar_f5's avatar
      jaikumar_f5
      Icon for Noctilucent rankNoctilucent
      Apr 06, 2020

       , try putting logging to see if you are capturing the right URI's.

      You can follow Samir's IRule and since you wanted 403, replace drop with respond 403.

      when HTTP_REQUEST {
   if { !(([string tolower [HTTP::uri]] starts_with "/abc") or ([string tolower [HTTP::uri]] starts_with "/pqr")) } {
     HTTP::respond 403 content "<html><body>Access Denied</body></html>"
   } else {
   log local0. "client=[IP::client_addr] accessing - [HTTP::uri] which is allowed"
   }
}

      If you want to test before implementing, to make sure you are putting right actions, put logging first. Something like below,

      when HTTP_REQUEST {
   if { !(([string tolower [HTTP::uri]] starts_with "/abc") or ([string tolower [HTTP::uri]] starts_with "/pqr")) } {
     log local0. "client=[IP::client_addr] accessing - [HTTP::uri] which is to be blocked with a 403"
   } else {
   log local0. "client=[IP::client_addr] accessing - [HTTP::uri] which is allowed"
   }
}
