HTTP/3 in the frontend and HTTP/2 in the backend

Hi,

I'm lost. I have two virtual servers, one listening for HTTP/2 and one listening to HTTP/3. With the HTTP/2 one the requests to the backend pool members happen over HTTP/2 but with the HTTP/3 profile it falls back to HTTP/1.1

Does anyone have any idea how I could solve this problem?



application delivery

3 Replies

  • shsingh's avatar
    shsingh
    Icon for Employee rankEmployee
    May 10, 2022

    Hi kobedan

    Are you on v15? As there is no support for serverside H/3 and QUIC: https://support.f5.com/csp/article/K60235402

    --snippet from the article--

    In this experimental implementation of HTTP/3 and QUIC, the BIG-IP system offers the following features and requirements:

    • To enable proxy support for HTTP/3, you must configure the virtual server with HTTP/3 and QUIC profiles as well as enable the HTTP MRF Router setting.
    • You must use HTTP/3 and QUIC together. Using QUIC without HTTP/3 is not supported.
    • Using QUIC and HTTP/3 on the server side is not supported in this implementation.
    • On the Configuration utility, you must set the Protocol option to UDP. The QUIC and HTTP/3 profile options will then be available for selection.
    • QUIC works only with TLSv1.3. The BIG-IP system provides the default clientssl-quic profile that you should use as a parent profile to customize your own Client SSL profile.
    • kobedan's avatar
      kobedan
      Icon for Nimbostratus rankNimbostratus
      May 11, 2022

      Hi shsingh

      I'm using version 16.

      My problem is not that I can't use HTTP/3 on the server side, i know that that won't work. But the problem is that when using HTTP/3 client side the server side isn't using HTTP/2. I know that HTTP/2 on the server side works because when using HTTP/2 on the client side I have HTTP/2 on the server side working with the same HTTP/2 profile.

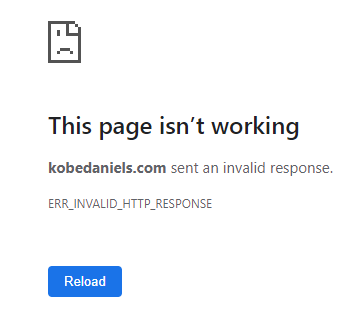

      When forcing HTTP/2 always on by switching activation mode from ALPN to always I get this error in my Chrome browser:

      And this error on Firefox:







  • shsingh's avatar
    shsingh
    Icon for Employee rankEmployee
    May 11, 2022

    Hey kobedan

    Thanks for the explanation and screenshot.

    My guess is that H/3 on clientside will mean drop to H/1 on serverside... in a similar way to in "gateway mode" H/2 on clientside does H/1 on serverside.

    What you're expecting is to have serverside drop to H/2 instead of H/1

    The solution article does not explain the expected behaviour in that scenario. Give me a day to see what I can test and report back. I would also encourage a support case on this to understand the expected behaviour. DM me your support case so I can also track it internally.
