Help needed for irule to deny wildcard uri with exceptions

Hi folks,



Need your advise on creating an irule for the below requirement



need to block the following uri cloud.du.ae/cloud/* with an exception if SAML appears in the URI



like lets say cloud.du.ae/cloud/abc/saml should be allowed but all other URI's with /cloud should be blocked



Thanks in advance.

application delivery
iRules
security
  • Simon_Blakely's avatar
    Simon_Blakely
    Icon for Employee rankEmployee
    May 03, 2020

    Use a Local Traffic Policy with a First Match strategy.



    K15085:  Overview of the Local Traffic Policies feature (11.4.0 - 12.0.0)

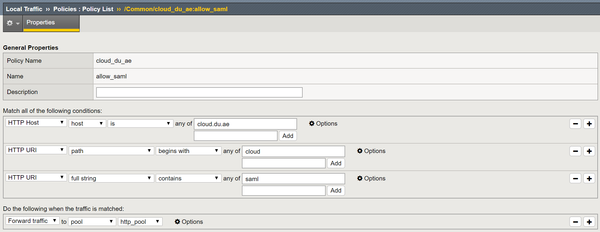

    Create a rule with conditions

    hostname is cloud.du.ae

    HTTP URI begins with cloud

    HTTP URI contains saml



    that forwards traffic to the pool

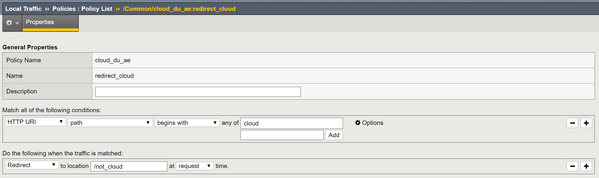

    Create a second rule to redirect requests starting with cloud to somewhere else (or drop the request)

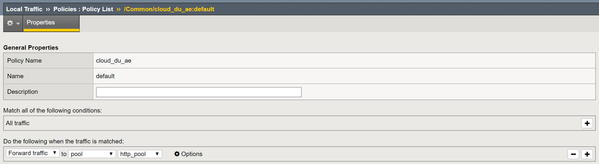

    Finally add a final default rule that forwards all requests to the pool.

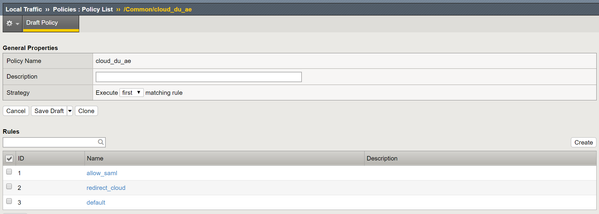

    Order your rules so that they match in correct order:



    • D99's avatar
      D99
      Icon for Cirrus rankCirrus
      May 05, 2020

      Works perfectly. Thanks a lot Simon :)
