Help deleting header name that contains curly braces
Hi
Just a quick question. I was asked to use the F5 to remove a header name as follows {esbsoapheader}userName
The header value was just fine. But I was asked to remove {esbsoapheader} from header name {esbsoapheader}userName
I tried HTTP::header remove "{esbsoapheader}userName" but it did not work. I got an error as follows

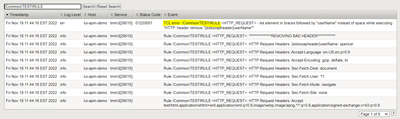

TCL error: /Common/ilxpi_demo/ilxir_demo <HTTP_REQUEST> - list element in braces followed by "userName" instead of space while executing "HTTP::header remove "{esbsoapheader}userName""
I'm guessing the header name has invalid characters, ie "{}" Has anyone encountered something similar? Is this header name ilegal/malformed? Is there a way I can remove this?
Hi Spencer_Aranda , Could you please specify if this header added at request or response time , also can you give a simulated sample to this header. I will follow up your request. Regards

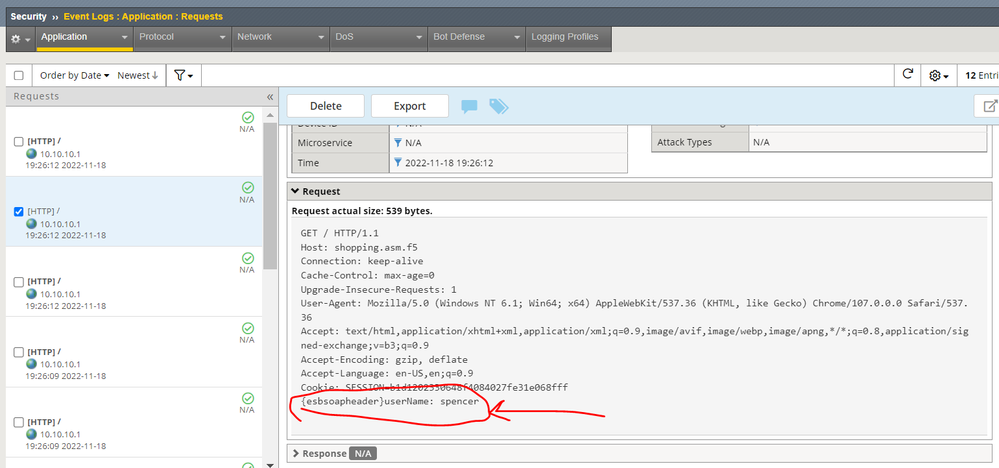

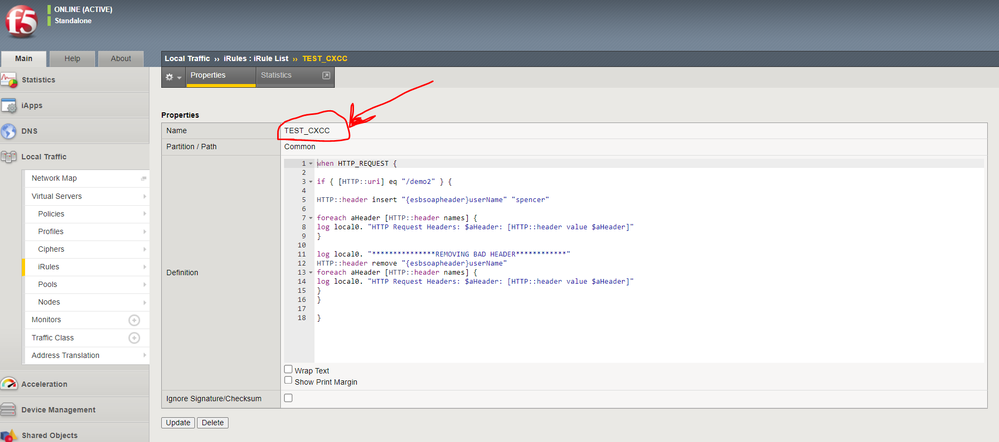

Thanks for your reply. Here is the example. I'm using this to test. In the real scenario, the header name "{esbsoaheader}userName" was already found in the HTTP headers, but in this test scenario and I'm adding it and then trying to remove it. I'm not sure how it worked for you.

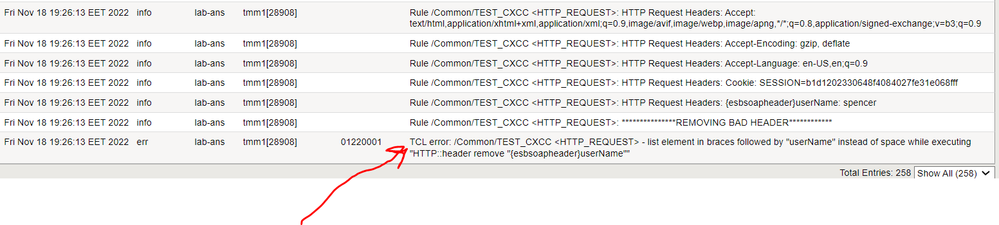

TCL error: /Common/ilxpi_demo/ilxir_demo <HTTP_REQUEST> - list element in braces followed by "userName" instead of space while executing "HTTP::header remove "{esbsoapheader}userName""
Spencer_Aranda , I have Copied it from your reply and tested the full script on my lab :
it runs well on my lab without errors , What is your software version I am on v15.1.0.4 what about yours , to see what are the differences with each release ?
Hello, I'd love to help you out but this is turning out to be tricky.
It's not possible to edit header name directly via iRule, so my code retrieves {esbsoapheader}userName value and inputs it into a new userName header. Then I'm attempting to delete {esbsoapheader}userName -- but this fails. I see iRule execution crashes and cllient connection is reset.
I've tried escaping curly braces with "\" as well, or passing it via a variable, but it doesn't seem to work.
Will it be enough to just insert userName? Is it a problem if {esbsoapheader}userName exists in request?
Thank you for taking the time to look into this CA_Valli
What you just showed to me is the fix that I gave the people that first asked me to remove {esbsoapheader} from header name.
I ended up just inserting a new header name just with userName and did not remove the bad header name. However, this is not quite what they were looking for so that is why I came to the F5 forum to look for answers.
CA_Valli Do you know why it is not possible to remove "{esbsoapheader}userName"? Is it because the header name is using characters that are not legal to use in a header name? If so, do you have some resource that I can read to confirm?
it does not work with me , I meant the iRule script is correct and accepted , I thought you have a problem with that. No I have performed your script on my test lab and I saw the TCL error:
Let me see how can I remove it , if I found a workaround , definitely I will share it with you
Paste this and run it. It worked out for me. Now any of you can explain why this works?? Is this a bug with F5? At least it seems to me. If it is, how can I let them know so they can fix it.
Nice work, Spencer_Aranda! The reason you need this is to escape the special characters. Both "\" and "{ }" are special characters in Tcl, so the "\\{" pattern is to escape both so you can actual match as the string as intended.
Hey Spencer_Aranda - what a great conversation you kicked off here!
JRahm pointed out the special character thing, but to report a bug in the future, please contact F5 Support and give them the details so they can create a report. 🙂
Amazing thing in iRules, you can submit to the original factory that this is a bug to be optimized or that iRules has a strange bug with "{" or "}" in the HTTP header
It may also be a disadvantage of the TCL language. Lists can be represented by "" or {}, which can sometimes be ambiguous, unlike Python lists, which can only be represented by []
Some manufacturers' load balancing scripts use lua language instead of tcl
I found that as long as the name field in the HTTP header contains { or }, HTTP:: header remove will report an error,
It seems that HTTP:: header remove name, name value refers to the value in HTTP:: header names storage format, rather than the value of variable string that we usually understand
log local0. "names is: [HTTP::header names]" the log result is:
names is: Host User-Agent Accept {{esbsoapheader}userName} Connection {{esbsoapheader}userName}
HTTP header name {esbsoapheader}userName the storage format in [HTTP::header names] is {{esbsoapheader}userName}
so, we need to use this format HTTP::header remove {{{esbsoapheader}userName}} or
HTTP::header remove "{{esbsoapheader}userName}"
use HTTP::header remove {{esbsoapheader}userName} will raise error!
if we HTTP::header insert "\{esbsoapheaderuserName" "f5-gtm"
the [HTTP::header names] running result is:
names is: Host User-Agent Accept \{esbsoapheaderuserName Connection
we need to this format to remove:
HTTP::header remove {\{esbsoapheaderuserName}
It seems that in the list of tcl, the element storage that contains { or } needs to carry {}
(bin) 49 % set a {Host User-Agent Accept {esbsoapheader}userName Connection} Host User-Agent Accept {esbsoapheader}userName Connection (bin) 50 % lindex $a 3 list element in braces followed by "userName" instead of space (bin) 51 % string length $a 57
(bin) 53 % set a "Host User-Agent Accept {esbsoapheader}userName Connection" Host User-Agent Accept {esbsoapheader}userName Connection
(bin) 55 % lindex $a 1 list element in braces followed by "userName" instead of space (bin) 56 %
(bin) 57 % set a {Host User-Agent Accept {{esbsoapheader}userName} Connection} Host User-Agent Accept {{esbsoapheader}userName} Connection
