HA pair in VMware v7 update 3 - Should "power on connect" be enabled, or disabled for vlans/network?

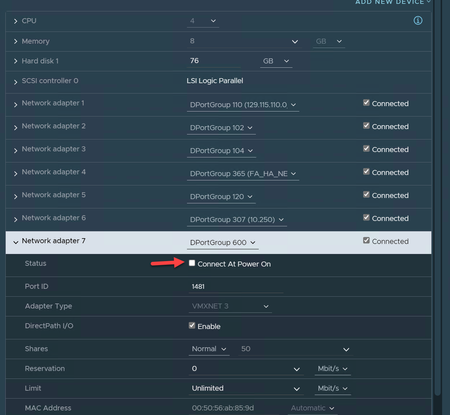

Late last year we migrated the vcmp guests off of our 7200 chassis into VMware. Up until now, "Connect at power On" has been diabled for the vlans/networks. The question is whether that should be ena...
application delivery
connect at power on
ha
vmware
  • Mike757's avatar
    Mike757
    Feb 28, 2023

    Hi, Fallout1984

    I would begin by making sure that on both machines of the cluster all the network interfaces that *should* be up are indeed up.

    If that's the case, you have part of your answer: interfaces that are currently down may safely be configured on VMware with "Connect At Power On" disabled.

    If you notice some interface that should be up, but is not, it would follow the opposite logic: "Connect At Power On" should be enabled for those.

    You can determine the relation between the VM network interface and the F5 interface by checking the MAC address on F5 with "ifconfig", and comparing to the MAC you see on VMware.

    /Mike

Mike757's avatar
Mike757
Icon for MVP rankMVP
Feb 28, 2023

Hi, Fallout1984

I would begin by making sure that on both machines of the cluster all the network interfaces that *should* be up are indeed up.

If that's the case, you have part of your answer: interfaces that are currently down may safely be configured on VMware with "Connect At Power On" disabled.

If you notice some interface that should be up, but is not, it would follow the opposite logic: "Connect At Power On" should be enabled for those.

You can determine the relation between the VM network interface and the F5 interface by checking the MAC address on F5 with "ifconfig", and comparing to the MAC you see on VMware.

/Mike

  • Fallout1984's avatar
    Fallout1984
    Icon for Cirrocumulus rankCirrocumulus
    Mar 01, 2023

    Thanks! Here's what I got back from F5 Support, to add to this...

    Should both HA pairs have their network adapter be checked for “Connect at power On” so they can connect at power on?

    - According to our VMware ESXi: F5 BIG-IP Virtual Edition Setup, all needed network adapters should be configured for “Connect at power On”, as showed in the images included in the setup Guide.

    You can consult the entire setup guide here: https://clouddocs.f5.com/cloud/public/v1/vmware/vmware_setup.html
