F5 Sub-Interfacing

Hi,



I have new F5 appliance and setting up its network interfaces. Since F5 1.0 will be having many sub-interfaces like 1.1, 1.2, 1.3, 1.4 etc so that I can assign vlans and configure ip addressing.



I can see online 1.0, 2.0, 3.0 network interfaces but not sure how I can setup them as sub interfaces.



I want 1.1, 1.2, 1.3, 1.4 etc sub-interfaces



Is there any steps or guide to do this

BIG-IP
LTM
security

4 Replies

  • Bruce_Morris's avatar
    Bruce_Morris
    Icon for Nimbostratus rankNimbostratus
    Jul 01, 2019

    Hi Korai,

    you do this by creating "vlans" under Network -> VLANs.

    Rgs,

    Bruce

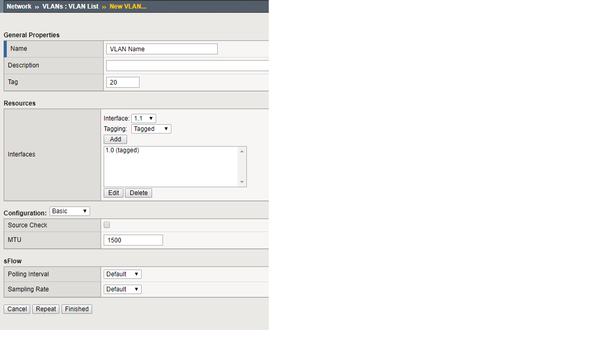

    EG:

  • Korai's avatar
    Korai
    Icon for Nimbostratus rankNimbostratus
    Jul 01, 2019

    Yes thanks but how you selected 1.1 interface as when I see options I can see only 1.0, 2.0, 3.0 etc

  • Korai's avatar
    Korai
    Icon for Nimbostratus rankNimbostratus
    Jul 01, 2019

    But is there any specific config to get 1.1, 1.2, 1.3 sub-interfaces.



    I can see main interfaces but want sub-interfaces so that assign vlans and setup IPs
