Different Logon Pages depending on REQUEST uri in Access Policy

I have no experience with APM and TCL. I just try to build simple policy using Visual Policy Editor for training. The goal is to get HTTP::uri (from the REQUEST) and analize it: if uri contains the word "softtoken" then go to one Logon Page, if not - use another Logon Page. I use some example of iRule to get the uri (found at F5 site). Since I just learning and I'm not so sure what happens, I add message box in every branch after iRule Event item.


Below The iRule that I use:


The Policy is here:


NOTHING works as I expected.:) Firstly, I do not get no one of Message Box screens that I customized. I always get default Message Box ("Please click the link below to continue"), so I cannot determine what branch was choosed. Then I get standard default Logon page, not one of mine. When I press on "Preview" at Customization:General than I can find my Message Boxes and Logon Pages configured as I wanted. But APM does not call them when authentication process executed.


Any help and explanation will be appretiated


3 Replies

  • First of all, I always find it useful to log debug logging to the /var/log/ltm file. For example I would put a line like this in each irule event:

    log local0. "DEBUG: HTTP_REQUEST"

    This helps to see if your irule is actually doing something.

    Second, I think you don't need to trigger an iRule event from the access policy. You could use an 'Empty Action' and use the following condition:

    expr { [HTTP::uri] contains "softtoken" }
    • ZANOOB's avatar
      Icon for Cirrus rankCirrus

      Hello Neils,

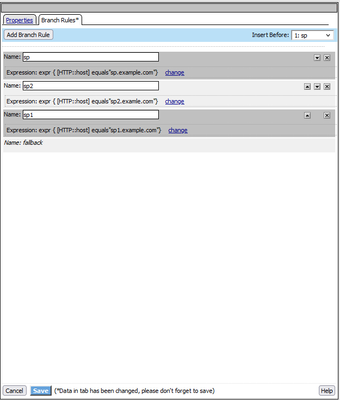

      I am trying to use the Empty Action with the condition as mentioned below

      expr { [HTTP::host] equals""} and 2 other urls , somehow that does not work.

      Is that the correct experssion to match urls?

      I have three urls pointing to same virtual server, hence creating a visual ediot to specify the urls to match to foward it to a specifc SMAL authtication.


  • The apm logs shows that Following rule 'fallback' from item 'Start' to item 'URL Selection'
    Rule evaluation failed with error: invalid command name "HTTP::host"
    Rule evaluation failed with error: invalid command name "HTTP::host"
    Rule evaluation failed with error: invalid command name "HTTP::host"
    Following rule 'fallback' from item 'URL Selection' to ending 'Deny'

    Looks like HTTP::host is invalied to use in tcl expression.
