CirrostratusAPM IP Subnet Match - single IP list
Hello, I am trying to figure out the best way to reference a single list of IP's in a few different access policies. Having this would allow me to just maintain one subnet match list and when upd...

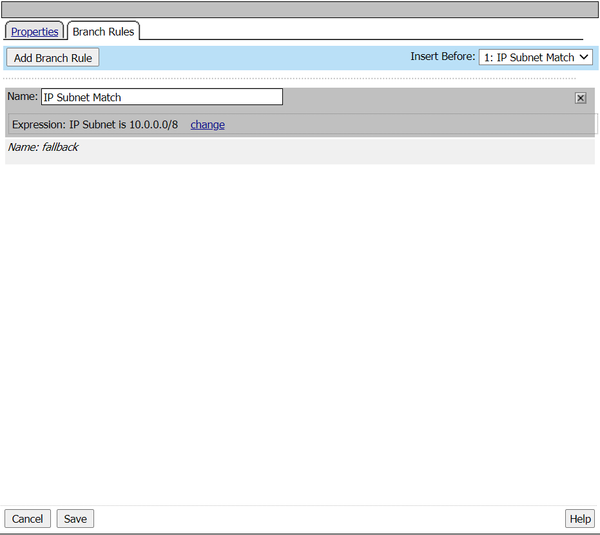

You can create a macro. In macro, select the server side security and IP subnet match for user's range. Call that macro in VPE.
For other option of iRule, you can use something like below
when ACCESS_POLICY_AGENT_EVENT { if { ([ACCESS::policy agent_id] eq "match") and (class match [IP::client_addr] equals kerberos_apm_subnet_match])}{ ACCESS::session data set session.custom.ip 0 } else { ACCESS::session data set session.custom.ip 1 } }event ID should be "match" and expression should be "expr { [mcget {session.custom.ip}] == 0 }" to match the user subnet
spalande
Nacreous
NacreousYou can create a macro. In macro, select the server side security and IP subnet match for user's range. Call that macro in VPE.
For other option of iRule, you can use something like below
when ACCESS_POLICY_AGENT_EVENT {
if { ([ACCESS::policy agent_id] eq "match") and (class match [IP::client_addr] equals kerberos_apm_subnet_match])}{
ACCESS::session data set session.custom.ip 0
} else {
ACCESS::session data set session.custom.ip 1
}
}
event ID should be "match" and expression should be "expr { [mcget {session.custom.ip}] == 0 }" to match the user subnet
Nolan_JensenSanjayP,
Wow thank you very much the iRule and iRule event is working on my first quick pass at testing. I am going to do more testing and will mark this as answer once I am able to do so.
Thank you again for your help I greatly appreciate it!
Note: for anyone else who comes across this there is a minor code error in above iRule so here is the working one.
when ACCESS_POLICY_AGENT_EVENT { if { ([ACCESS::policy agent_id] eq "match") and [class match [IP::client_addr] equals kerberos_apm_subnet_match] } { ACCESS::session data set session.custom.ip 0 } else { ACCESS::session data set session.custom.ip 1 } }
