Apache Reverse Proxy migration to F5.

Hello all. I would really appreciate some help with this. I am trying to migrate an Apache config to a F5 LTM LB. I understand rewrites, but this one has me baffled. I have tried a few different scenarios and I cannot get it to work as expected. its not as simple as I thought, so I was hoping that someone else has run into this, and can at least guide me in the right direction. Do I need to have a separate request and response in the rewrite, or should I be looking to do this through an iRule? Or both?





Thanks in advance.



application delivery
iRules
LTM

2 Replies

  • IanB's avatar
    IanB
    Icon for Employee rankEmployee
    Feb 10, 2016

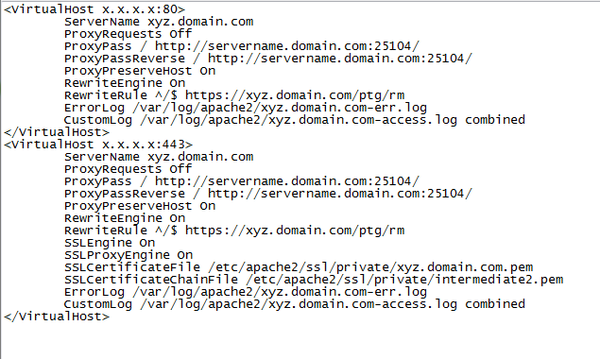

    I'm not quite sure what your question is - are you asking for help understanding what your current RewriteRule does (it seems to rewrite "/" to "/ptg/rm"), or are you asking how to implement the same rule in an iRule (or ltm policy), or is the question something else ?

    If you were to use a policy, it would be something like this:

    ltm policy rewriteurls {
    requires { http }
    rules {
        rewrite_root {
            actions {
                0 {
                    http-uri
                    replace
                    path /ptg/rm
                }
            }
            conditions {
                0 {
                    http-uri
                    path
                    values { / }
                }
            }
            ordinal 1
        }
    }
    strategy first-match
}

    Does that help ?

  • BKA_201457's avatar
    BKA_201457
    Icon for Nimbostratus rankNimbostratus
    Feb 10, 2016

    I know how to rewrite "/" to "/ptg/rm". I think I am over-thinking it. Thanks for the response. Made me realize that I was looking at it wrong. It just isnt working. Its working through the current reverse proxy configuration, but I cannot get it to work through the F5. I have plenty of others working through the F5, but this one seems different. I'll figure it out. Thanks again.
