About monitor

Hello, Is there a way to set the monitoring method to TCP when the pool member's service port is 0? Any help is appreciate.
application delivery
  • G-Rob's avatar
    G-Rob
    Jan 10, 2023

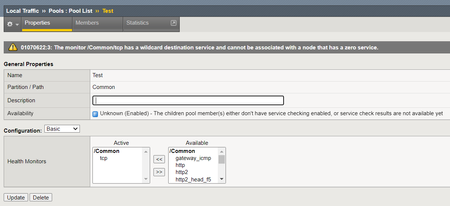

    If you encounter this error, you can resolve it by taking either or both of the following actions:

    • Define a service port for the monitor.
    • Define a service port for each object to which the monitor will be applied.

    Source: https://support.f5.com/csp/article/K8084

xuwen's avatar
xuwen
Icon for Cumulonimbus rankCumulonimbus
Jan 10, 2023

service port 0 is represent any service, pool member tcp and udp monitor can not use service port 0(gateway_icmp can use service port 0), if pool member service port has a lot, recommand you to use gateway_icmp monitor, too many ports detected will also degrade the performance of the device:

For example, we have an i2600 with 2000+ VS and 2000+ pools, result its CPU and memory being at more than 80-90% usage of the working state(affect sometimes we can not login in GUI Web because restjaved service is restart)
