5 Years Later: OpenAJAX Who?
Five years ago the OpenAjax Alliance was founded with the intention of providing interoperability between what was quickly becoming a morass of AJAX-based libraries and APIs. Where is it today, and why has it failed to achieve more prominence? I stumbled recently over a nearly five year old article I wrote in 2006 for Network Computing on the OpenAjax initiative. Remember, AJAX and Web 2.0 were just coming of age then, and mentions of Web 2.0 or AJAX were much like that of “cloud” today. You couldn’t turn around without hearing someone promoting their solution by associating with Web 2.0 or AJAX. After reading the opening paragraph I remembered clearly writing the article and being skeptical, even then, of what impact such an alliance would have on the industry. Being a developer by trade I’m well aware of how impactful “standards” and “specifications” really are in the real world, but the problem – interoperability across a growing field of JavaScript libraries – seemed at the time real and imminent, so there was a need for someone to address it before it completely got out of hand. With the OpenAjax Alliance comes the possibility for a unified language, as well as a set of APIs, on which developers could easily implement dynamic Web applications. A unified toolkit would offer consistency in a market that has myriad Ajax-based technologies in play, providing the enterprise with a broader pool of developers able to offer long term support for applications and a stable base on which to build applications. As is the case with many fledgling technologies, one toolkit will become the standard—whether through a standards body or by de facto adoption—and Dojo is one of the favored entrants in the race to become that standard. -- AJAX-based Dojo Toolkit , Network Computing, Oct 2006 The goal was simple: interoperability. The way in which the alliance went about achieving that goal, however, may have something to do with its lackluster performance lo these past five years and its descent into obscurity. 5 YEAR ACCOMPLISHMENTS of the OPENAJAX ALLIANCE The OpenAjax Alliance members have not been idle. They have published several very complete and well-defined specifications including one “industry standard”: OpenAjax Metadata. OpenAjax Hub The OpenAjax Hub is a set of standard JavaScript functionality defined by the OpenAjax Alliance that addresses key interoperability and security issues that arise when multiple Ajax libraries and/or components are used within the same web page. (OpenAjax Hub 2.0 Specification) OpenAjax Metadata OpenAjax Metadata represents a set of industry-standard metadata defined by the OpenAjax Alliance that enhances interoperability across Ajax toolkits and Ajax products (OpenAjax Metadata 1.0 Specification) OpenAjax Metadata defines Ajax industry standards for an XML format that describes the JavaScript APIs and widgets found within Ajax toolkits. (OpenAjax Alliance Recent News) It is interesting to see the calling out of XML as the format of choice on the OpenAjax Metadata (OAM) specification given the recent rise to ascendancy of JSON as the preferred format for developers for APIs. Granted, when the alliance was formed XML was all the rage and it was believed it would be the dominant format for quite some time given the popularity of similar technological models such as SOA, but still – the reliance on XML while the plurality of developers race to JSON may provide some insight on why OpenAjax has received very little notice since its inception. Ignoring the XML factor (which undoubtedly is a fairly impactful one) there is still the matter of how the alliance chose to address run-time interoperability with OpenAjax Hub (OAH) – a hub. A publish-subscribe hub, to be more precise, in which OAH mediates for various toolkits on the same page. Don summed it up nicely during a discussion on the topic: it’s page-level integration. This is a very different approach to the problem than it first appeared the alliance would take. The article on the alliance and its intended purpose five years ago clearly indicate where I thought this was going – and where it should go: an industry standard model and/or set of APIs to which other toolkit developers would design and write such that the interface (the method calls) would be unified across all toolkits while the implementation would remain whatever the toolkit designers desired. I was clearly under the influence of SOA and its decouple everything premise. Come to think of it, I still am, because interoperability assumes such a model – always has, likely always will. Even in the network, at the IP layer, we have standardized interfaces with vendor implementation being decoupled and completely different at the code base. An Ethernet header is always in a specified format, and it is that standardized interface that makes the Net go over, under, around and through the various routers and switches and components that make up the Internets with alacrity. Routing problems today are caused by human error in configuration or failure – never incompatibility in form or function. Neither specification has really taken that direction. OAM – as previously noted – standardizes on XML and is primarily used to describe APIs and components - it isn’t an API or model itself. The Alliance wiki describes the specification: “The primary target consumers of OpenAjax Metadata 1.0 are software products, particularly Web page developer tools targeting Ajax developers.” Very few software products have implemented support for OAM. IBM, a key player in the Alliance, leverages the OpenAjax Hub for secure mashup development and also implements OAM in several of its products, including Rational Application Developer (RAD) and IBM Mashup Center. Eclipse also includes support for OAM, as does Adobe Dreamweaver CS4. The IDE working group has developed an open source set of tools based on OAM, but what appears to be missing is adoption of OAM by producers of favored toolkits such as jQuery, Prototype and MooTools. Doing so would certainly make development of AJAX-based applications within development environments much simpler and more consistent, but it does not appear to gaining widespread support or mindshare despite IBM’s efforts. The focus of the OpenAjax interoperability efforts appears to be on a hub / integration method of interoperability, one that is certainly not in line with reality. While certainly developers may at times combine JavaScript libraries to build the rich, interactive interfaces demanded by consumers of a Web 2.0 application, this is the exception and not the rule and the pub/sub basis of OpenAjax which implements a secondary event-driven framework seems overkill. Conflicts between libraries, performance issues with load-times dragged down by the inclusion of multiple files and simplicity tend to drive developers to a single library when possible (which is most of the time). It appears, simply, that the OpenAJAX Alliance – driven perhaps by active members for whom solutions providing integration and hub-based interoperability is typical (IBM, BEA (now Oracle), Microsoft and other enterprise heavyweights – has chosen a target in another field; one on which developers today are just not playing. It appears OpenAjax tried to bring an enterprise application integration (EAI) solution to a problem that didn’t – and likely won’t ever – exist. So it’s no surprise to discover that references to and activity from OpenAjax are nearly zero since 2009. Given the statistics showing the rise of JQuery – both as a percentage of site usage and developer usage – to the top of the JavaScript library heap, it appears that at least the prediction that “one toolkit will become the standard—whether through a standards body or by de facto adoption” was accurate. Of course, since that’s always the way it works in technology, it was kind of a sure bet, wasn’t it? WHY INFRASTRUCTURE SERVICE PROVIDERS and VENDORS CARE ABOUT DEVELOPER STANDARDS You might notice in the list of members of the OpenAJAX alliance several infrastructure vendors. Folks who produce application delivery controllers, switches and routers and security-focused solutions. This is not uncommon nor should it seem odd to the casual observer. All data flows, ultimately, through the network and thus, every component that might need to act in some way upon that data needs to be aware of and knowledgeable regarding the methods used by developers to perform such data exchanges. In the age of hyper-scalability and über security, it behooves infrastructure vendors – and increasingly cloud computing providers that offer infrastructure services – to be very aware of the methods and toolkits being used by developers to build applications. Applying security policies to JSON-encoded data, for example, requires very different techniques and skills than would be the case for XML-formatted data. AJAX-based applications, a.k.a. Web 2.0, requires different scalability patterns to achieve maximum performance and utilization of resources than is the case for traditional form-based, HTML applications. The type of content as well as the usage patterns for applications can dramatically impact the application delivery policies necessary to achieve operational and business objectives for that application. As developers standardize through selection and implementation of toolkits, vendors and providers can then begin to focus solutions specifically for those choices. Templates and policies geared toward optimizing and accelerating JQuery, for example, is possible and probable. Being able to provide pre-developed and tested security profiles specifically for JQuery, for example, reduces the time to deploy such applications in a production environment by eliminating the test and tweak cycle that occurs when applications are tossed over the wall to operations by developers. For example, the jQuery.ajax() documentation states: By default, Ajax requests are sent using the GET HTTP method. If the POST method is required, the method can be specified by setting a value for the type option. This option affects how the contents of the data option are sent to the server. POST data will always be transmitted to the server using UTF-8 charset, per the W3C XMLHTTPRequest standard. The data option can contain either a query string of the form key1=value1&key2=value2 , or a map of the form {key1: 'value1', key2: 'value2'} . If the latter form is used, the data is converted into a query string using jQuery.param() before it is sent. This processing can be circumvented by setting processData to false . The processing might be undesirable if you wish to send an XML object to the server; in this case, change the contentType option from application/x-www-form-urlencoded to a more appropriate MIME type. Web application firewalls that may be configured to detect exploitation of such data – attempts at SQL injection, for example – must be able to parse this data in order to make a determination regarding the legitimacy of the input. Similarly, application delivery controllers and load balancing services configured to perform application layer switching based on data values or submission URI will also need to be able to parse and act upon that data. That requires an understanding of how jQuery formats its data and what to expect, such that it can be parsed, interpreted and processed. By understanding jQuery – and other developer toolkits and standards used to exchange data – infrastructure service providers and vendors can more readily provide security and delivery policies tailored to those formats natively, which greatly reduces the impact of intermediate processing on performance while ensuring the secure, healthy delivery of applications. API Jabberwocky: You Say Tomay-to and I Say Potah-to OpenAjax Metadata 1.0 and the Adobe Dreamweaver Widget Browser OpenAjax Alliance AJAX-based Dojo Toolkit The Stealthy Ascendancy of JSON JSON Continues its Winning Streak Over XML JSON versus XML: Your Choice Matters More Than You Think I am in your HTTP headers, attacking your application The Web 2.0 API: From collaborating to compromised IT as a Service: A Stateless Infrastructure Architecture Model JSON Activity Streams and the Other Consumerization of IT
Issues modifying XML content with stream profile & iRule

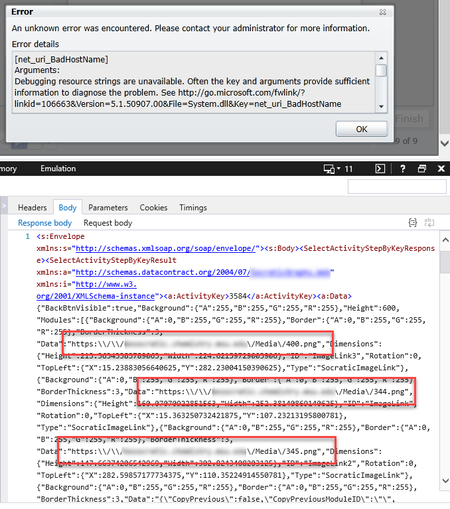

I've taken an iRule from another DevCentral post and modified it to fit my application. when HTTP_REQUEST { Disable the stream filter for all requests STREAM::disable LTM does not uncompress response content, so if the server has compression enabled and it cannot be disabled on the server, we can prevent the server from sending a compressed response by removing the compression offerings from the client HTTP::header remove "Accept-Encoding" } when HTTP_RESPONSE { Check if response type is text if {[HTTP::header value Content-Type] contains "text/xml"}{ Replace http:// with https:// STREAM::expression {@http:\\/\\/applicationdomain@https:\\/\\/applicationdomain@} Enable the stream filter for this response only STREAM::enable } } The stream profile is successfully replacing the HTTP: with HTTPS:, but is also including the additional backslash and a Silverlight (smh) error pops up When I remove the second backslash in the iRule, the HTTP: is no longer replaced with HTTPS:, and I'm back to square one. Any ideas on what I might be doing wrong? Thanks in advance!XML Threat Prevention
Where should security live? The divide between operations and application developers is pretty wide, especially when it comes to defining who should be ultimately responsible for application security. Mike Fratto and I have often had lively discussions (read: arguments) about whether security is the responsibility of the developer or the network and security administrators. It's wholly inappropriate to recreate any of these discussions here, as they often devolve to including the words your mother said not to use in public. 'Nuff said. The truth is that when XML enters the picture then the responsibility for securing that traffic has to be borne by both the network/security administrators and the developers. While there is certainly good reason to expect that developers are doing simply security checks for buffer overflows, length restrictions on incoming data, and strong typing, the fact is that there are some attacks in XML that make it completely impractical to check for in the code. Let's take a couple of attack types as examples. XML Entity Expansion This attack is a million laughs, or at least a million or more bytes of memory. Applications need to parse XML in order to manipulate it, so the first thing that happens when XML hits an application is that it is parsed - before the developer even has a chance to check it. In an application server this is generally done before the arguments to the specific operation being invoked are marshaled - meaning it is the application server, not the developer that is responsible for handling this type of attack. These messages can be used to force recursive entity expansion or other repeated processing that exhausts server resources. The most common example of this type of attack is the "billion laughs" attack, which is widely available. The CPU is monopolized while the entities are being expanded, and each entity takes up X amount of memory - eventually consuming all available resources and effectively preventing legitimate traffic from being processed. It's essentially a DoS (Denial of Service) attack. ... ]> &ha128; It is accepted that almost all traditional DoS attacks (ping of death, teardrop, etc...) should be handled by a perimeter security device - a firewall oran application delivery controller - so why should a DoS attack that is perpetrated through XML be any different? It shouldn't. This isn't a developer problem, it's a parser problem and for the most part developers have little or no control over the behavior of the parser used by the application server. The application admin, however, can configure most modern parsers to prevent this type of attack, but that's assuming that their parser is modern and can be configured to handle it. Of course then you have to wonder what happens if that arbitrary limit inhibits processing of valid traffic? Yeah, it's a serious problem. SQL Injection SQL Injection is one of the most commonly perpetrated attacks via web-based applications. It consists basically of inserting SQL code into string-based fields which the attacks thinks (or knows) will be passed to a database as part of an SQL query. This type of attack can easily be accomplished via XML as well simply by inserting the appropriate SQL code into a string element. Aha! The developer can stop this one, you're thinking. After all, the developer has the string and builds the SQL that will be executed, so he can just check for it before he builds the string and sends it off for execution. While this is certainly true, there are myriad combinations of SQL commands that might induce the database to return more data than it should, or to return sensitive data not authorized to the user. This extensive list of commands and combinations of commands would need to be searched for in each and every parameter used to create an SQL query and on every call to the database. That's a lot of extra code and a lot of extra processing - which is going to slow down the application and impede performance. And when a new attack is discovered, each and every function and application needs to be updated, tested, and re-deployed. I'm fairly certain developers have better ways to spend their time than updating parameter checking in every function in every application they have in production. And we won't even talk about third-party applications and the dangers inherent in that scenario. One of the goals of SOA is engendering reuse, and this is one of the best examples of taking advantage of reuse in order to ensure consistent behavior between applications and to reduce the lengthy development cycle required to update, test, and redeploy whenever a new attack is discovered. By placing the onus for keeping this kind of attack from reaching the server on an edge device such as an application firewall like F5's application firewall, updates to address new attacks are immediately applied to all applications and there is no need to recode and redeploy applications. Although there are some aspects of security that are certainly best left to the developer, there are other aspects of security that are better deployed in the network. It's the most effective plan in terms of effort, cost, and consistent behavior where applications are concerned. Imbibing: Mountain Dew Technorati tags: security, application security, application firewall, XML, developers, networking, application delivery
Deploy BIG-IP Edge Client (iOS) with configuration string
Greetings all, I'm very new to F5 (only responsible for deploying Edge Client with MDM) and need some basic assistance. Are there any more examples available for Configuration XML strings used to deploy the Edge Client via MDM and VPP to iOS devices with connection settings already established? Specifically we are utilizing JAMF as our MDM. Apps can be given configuration settings in their deployment. I was attempting to use the below string but I'm getting an error - 'Incorrect Format'. Help is appreciated. Thanks! We are using user name and password for authentication, and it is an SSL appliance. IPv4 UserDefinedName The Name of our connection VPN AuthName $USERNAME RemoteAddress our F5 Address OnDemandMatchAppEnabled VPNSubType [com.f5.F5-Edge-Client.vpnplugin](//com.f5.F5-Edge-Client.vpnplugin) VPNType VPNXML and WSDLs
Hello All, Is there a way for the BigIP to exposed the WSDLs when a client request them instead of the backend server. I have set a Security Policy, a XML profile and installed the WSDLs needed. I had a former infrastructure with IBM Datapower from where this was possible, I wonder if this is possible with the ASM module Customer request is like this GET /foobar-webservices/test?wsdl HTTP/1.1 Host: foo.bar:443 Connection: close Thank you.
Can I allow Buffer Overflow attack signatures in just an XML request?
The website has an upload page where people can submit receipts. The request looks like this: 4AAQSkD6RXhpZgAuocAAcAAAgMAAAAPgAAAAAc6gAAAAgAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA..... We have determined that the "A"s represent the white space in the image and since it is a receipt, a large area of it is white, but this is throwing the Generic buffer overflow attempt 1 attack signature due to the large sequence of "A"s. The question is if there is a way to just turn off this signature for this URI. Since the overflow false positive is in the XML I do not know of a way to do this, and we do not what to have to turn off buffer overflow signatures for the whole site. We only have one policy for the whole site and are unable to use the LTM side to split up the traffic to different policies. Thank you.
ASM JSON/XML payload detection & Automatically detect advanced protocols
Hello team, I have a question regarding the learning suggestions, I want to know if it is possible for the ASM to suggest the association of an XML profile to a specific URL. In other words, is there a way to configure the ASM so that when XML traffic passes through it then a learning suggestion rises saying "you have to associate an XML for this URL" In this article : https://support.f5.com/kb/en-us/products/big-ip_asm/manuals/product/asm-getting-started-12-1-0/3.html The Policy Builder builds the security policy as follows: Examines application content and creates XML or JSON profiles as needed (if the policy includes JSON/XML payload detection) ...etc we can read explicitly that it is possible IF we enable the "JSON/XML payload detection" then the answer to my question is "Yes" . The problem is that I can't find this "JSON/XML payload detection" option in the GUI. Could you please help on this ? Many thanks, KarimPerl Ltm Config To Xml/Excel (version 3.1)
Problem this snippet solves: This code is an improvement of "Perl Ltm Config To Xml (version 2)" published on previous DevCentral (https://devcentral.f5.com/s/articles/perl-ltm-config-to-xml-version-2-1009) queries the components of a virtual servers configuration and prints it out in an XML format. Is recursive through partitions and prints the following data: VS_name VS_IP: IP and port RD (route domain) VS_state: status (ex. green) and state (ex. enabled) Profiles: name, type, context. If SSL profile aditional info: certificate, chain, key, cipher list Persistence iRules: order and name Pool_name LB-method: method, minimum active members Member: name, IP, port, ratio, priority, status and state Monitors: name, interval, timeout. If HTTP/HTTPS monitors additional info: Send and Receive strings SNAT_name SNAT_members Has a new option "-s" or "-simplified" which outputs multiple values like the profile list or pool members into a unique XML field. Purpose of simplified mode is to be able to have one Virtual Server per row on Excel, with lists showing on a single cell. This code has been tested on BIG-IP version 12.1 and 14.1. How to use this snippet: Default mode: ./LTM-to-XML.pl bigip uid pwd > result.xml Example for simplified mode and removal of partition information: ./LTM-to-XML.pl -s 127.0.0.1 uid pwd | sed "s/\/.*app\///g" | sed "s/\/Common\///g" > result.xml The XML can be dragged and dropped on MS Excel and opened as an XML table. Code : (see ZIP file) Tested this on version: 12.1, 14.1
XML content based routing help
I'm trying to get some XML content based routing working, but having some difficulty. Hoping someone might help me out here. Here's my xml profile: profile xml { defaults from xml xpath queries "//FirmID" } I have an irule that has an HTTP_REQUEST block (for other URI-based routing), and then this: when XML_CONTENT_BASED_ROUTING { log local0. "XML: $XML_values(0)" switch $XML_values(0) { "199968" { log local0. "send to 10.222.248.20" node 10.222.248.20 443 } "199905" { log local0. "send to 10.206.23.172" node 10.206.23.172 443 } default { log local0. "default send to 10.222.248.21" node 10.222.248.21 443 } } } Sample XML: 199968redactedredacted872A4C348D18178525641CCD9B570954 None of my log statement in the XML_CONTENT_BASED_ROUTING ever trigger. The XML statistics show documents being inspected, but zero matches. What am I missing? Profile and irule in the comments in better formatting - can't get it to work in this post. No idea how to allow the XML code to be posted.
