Forum Discussion
Diago1111
Altocumulus
Altocumulusurl redirect

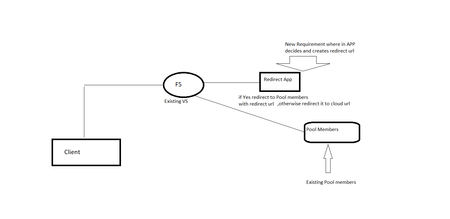

Hi there, We have a requirement in which we alredy have existing virtual server with pool members associated with it used to server http/https requests to some uri. Those Pool members are hosted in...
Diago1111 I have come up with the following iRule which should do what you want. I have swapped "xyz" with "example.com" so in your scenario the redirect app pool server would send a redirect back to the client of "redirect.example.com" instead of "xyz-redirect" so that it appears as a full FQDN rather than a partial name. You can replace "example.com" with whatever you would like and the same goes for the URI path that you would like to match. Please keep in mind that this iRule assumes that the default pool associated to your virtual server would be the iflow server pool but if it isn't you would need to add an else action to send all other traffic to your iflow server pool.
when HTTP_REQUEST priority 500 { if { ([HTTP::host] == "example.com") && ([string tolower [HTTP::uri]] contains "/iflow/cx.exe/link") } { pool POOL_redirect_app } }
Paulius
MVP
MVPDiago1111 You might be able to accomplish this with a string map but without know a bit more I can't say definitevly that that would be the correct solution for you. That redirect app seems like it should take care of the destination to the cloud and all other redirects if it knows about everything but if not then a string map might be the next best bet.
Diago1111Altocumulus
AltocumulusHi Paulius
Below is traffic flow for Data center server:
•User click on the inflo link pattern https://xyz/iflow/cx.exe/link/xxxxxx
•F5 irule matches “https://xyz/iflow/cx.exe/link” and forward the request to redirect app server pool.
•Redirect-App check whether the document is in cloud or in iflow. If the document is in iflow the redirect app will send back redirected URL https://xyz-redirect/iflow/cx.exe/link/xxxxxx to F5 and F5 will forward it client.
•Client send redirected URL https://xyz-redirect/iflow/cx.exe/link/xxxxxx to F5 . New DNS entry should be created to point xyz-redirect to F5 iflow VIP IP. F5 find it is not matching irule so forward directly to iflow server pool and iflow app respond to user with the page
Below is traffic flow for cloud:
•User click on the inflo link pattern https://xyz/iflow/cx.exe/link/xxxxxx
•F5 irule matches “https://xyz/iflow/cx.exe/link” and forward the request to redirect app server pool.
•Redirect-App check whether the document is in cloud or in iflow. If the document is in cloud the app will send back redirected URL {{cloud url}} to F5 and F5 will forward it client.
•Client send traffic to cloud.
- Paulius
Diago1111 I have come up with the following iRule which should do what you want. I have swapped "xyz" with "example.com" so in your scenario the redirect app pool server would send a redirect back to the client of "redirect.example.com" instead of "xyz-redirect" so that it appears as a full FQDN rather than a partial name. You can replace "example.com" with whatever you would like and the same goes for the URI path that you would like to match. Please keep in mind that this iRule assumes that the default pool associated to your virtual server would be the iflow server pool but if it isn't you would need to add an else action to send all other traffic to your iflow server pool.
when HTTP_REQUEST priority 500 { if { ([HTTP::host] == "example.com") && ([string tolower [HTTP::uri]] contains "/iflow/cx.exe/link") } { pool POOL_redirect_app } }
