Unable to ping default gateway from F5 Vm

Hello Experts,

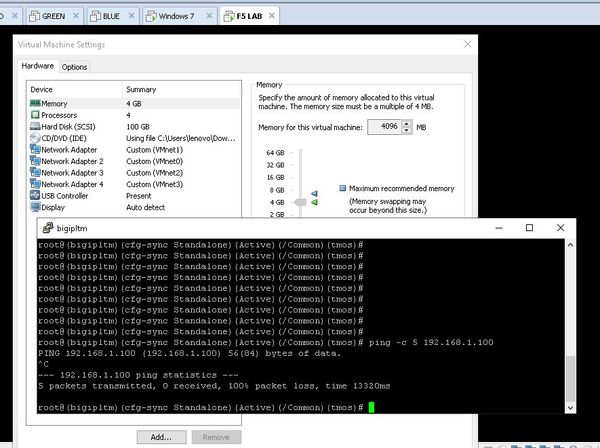

After lot of effort and troubleshooting i have set up lab. However I am unable to ping virtual pc ip(Windows7) from f5 in vmware workstation. Please help me. Any help would be greatly appreciated.

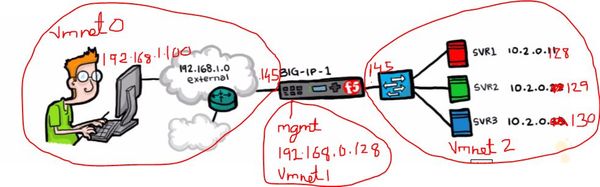

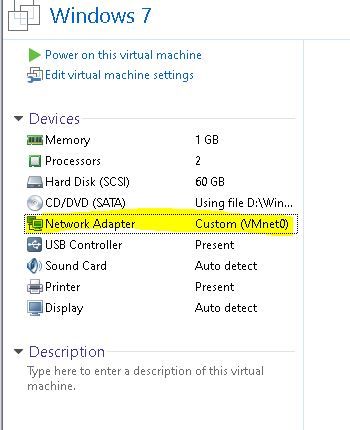

Virtual Pc(Windows7)---Vmnet0(192.168.1.100)

F5 External interface ip --Vmnet0 (192.168.1.145)

My physical pc ip---192.168.0.6

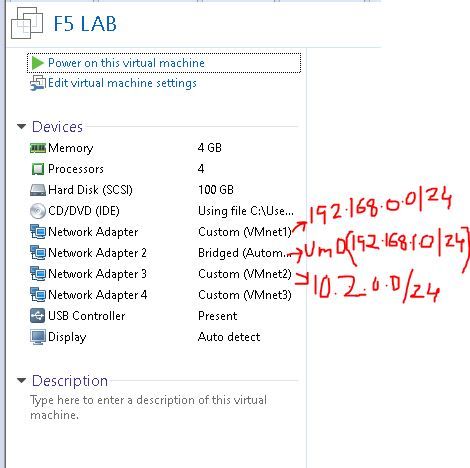

F5 mgmt int ip---192.168.0.128(Vmnet1)

I am able to ping node ip from F5

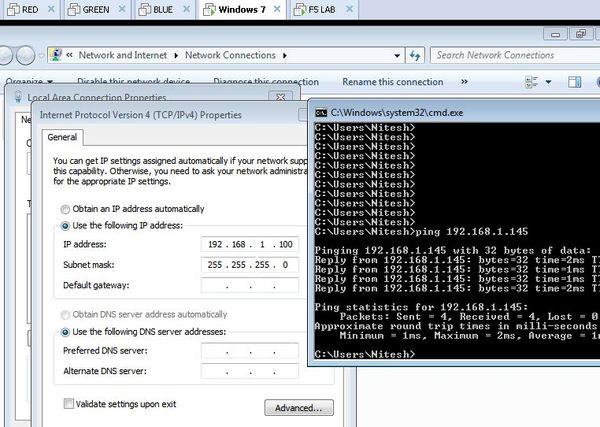

  • Please find the attachment, still unable to ping. Please suggest

      • Nitesh's avatar
        Nitesh
        Icon for Cirrus rankCirrus

        I changed the ip address to 192.168.1.200 and it worked. When i put the system to receive the ip from dhcp it receive the ip’s beyond 192.168.1.127. And when i confugire any ip in the range 1-127 it dosen’t ping. Dont know why this happens.

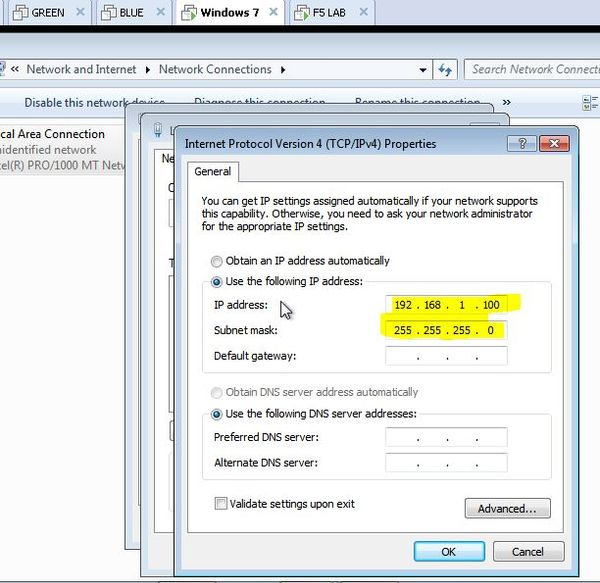

  • Noticed you had no default gateway on your Win7 nic, and no DNS servers. Perhaps when you switch to DHCP you get a default gateway? You would not be able to go outside of your subnet - from x.x.x.x to y.y.y.y without a default gateway.
