Forum Discussion
srinidhi12
Cirrostratus
CirrostratusUnable to add virtual server to F5
Hello All, We have added F5 Image in EVE-NG and attached Virtual PC to Interface 1.1. We have configured F5 for LTM. We are able to access Internet from F5 and also ping Interface IP(1.1). Interfac...
mihaic
MVP
MVPhere is an article on routing tables:
https://support.f5.com/csp/article/K13284
management interface is using one routing subtable and the other interfaces are using other routing subtable.
it would be better not to use management for accessing internet. I think it is still possible to use it, check in the
article.
Share you managment interface settings .
I still believe that the issue is somewhere else. Your firewall/router that you use to access the internet need to have a route to the subnet where the Virtual PC is in . And also to be able to NAT it .
srinidhi12Cirrostratus

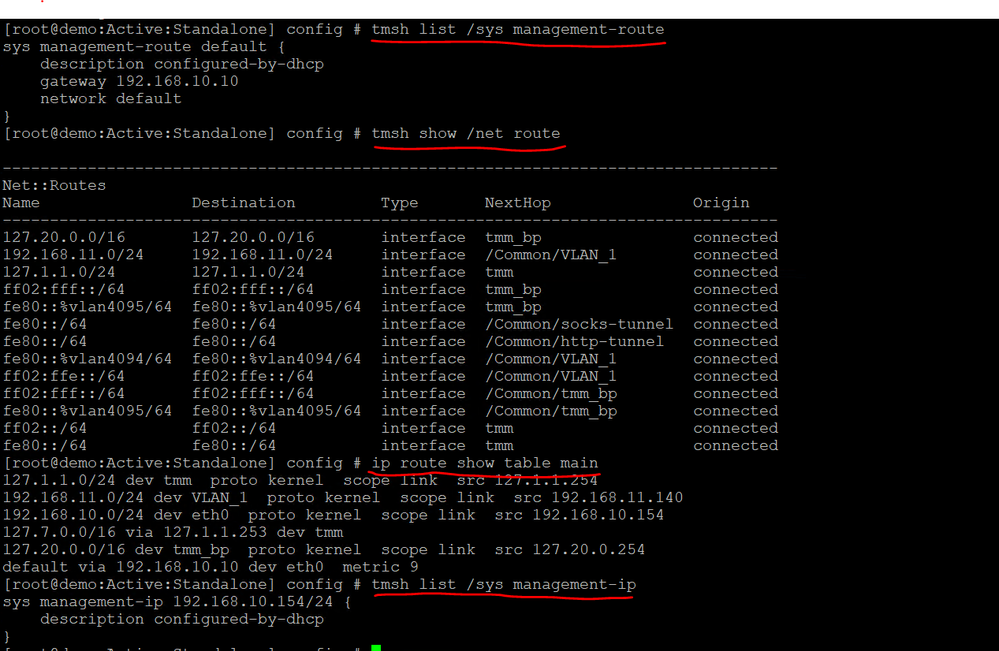

CirrostratusThanks for the article. we went through it and tried the below commands to check the connection.

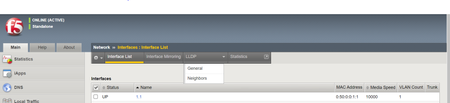

We checked the configuration and noticed that IP address assigned to Interface 1.1 is showing Connected in Origin
Interface 1.1> Self-IP > 192.168.11.140
Virtual PC directly connected to Interface > Self-IP> 192.168.11.120

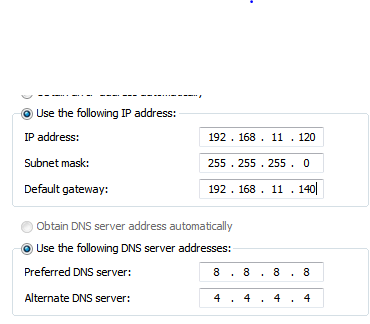

Default Gateway for Virtual PC is set Interface 1.1 IP (Please find the image below)
Also As of now, We only have F5 and Virtual PC in our Environment. we have not configured any other firewall and router.
We have added one route as test in Network>Routes.
Could you please let us know which settings to change to get Internet connectivity in Virtual PC (192.168.11.120)
