SNAT is not working in a one-arm configuration.

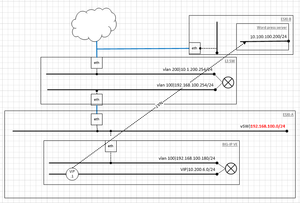

Thank you for all advice. Now we are testing by configuring the BIG-IP VE with the one-arm as shown below, I want to connect a word press server via Big-ip VE LTM Version: 17.1.0.1. We can success ...
BIG-IP-VE
event
  • KeesvandenBos's avatar
    KeesvandenBos
    Jul 19, 2023

    Could you add the follow irule to the virtual server?

    when HTTP_REQUEST {
   # Disable the stream filter for client requests
   STREAM::disable
}
when HTTP_RESPONSE {
    # Disable the stream filter for server responses
    STREAM::disable
# Enable the stream filter for text responses only

 if {([HTTP::status] == 200) && ([HTTP::header value Content-Type] starts_with "text")} {
  # Replace '10.100.100.200' with '10.200.6.1'
  STREAM::expression {@10.100.100.200@10.200.6.1@}
  # Enable the stream filter
  STREAM::enable
 }
}
Beginner-T's avatar
Beginner-T
Icon for Altostratus rankAltostratus

Thank you for the reply.

I applied the curl -v http://10.200.6.1/  from the client PC

* Trying 10.200.6.1:80...
* Connected to 10.200.6.1 (10.200.6.1) port 80 (#0)
> GET / HTTP/1.1
> Host: 10.200.6.1
> User-Agent: curl/8.0.1
> Accept: */*
>
< HTTP/1.1 200 OK
< Server: nginx/1.20.1
< Date: Wed, 19 Jul 2023 00:54:17 GMT
< Content-Type: text/html; charset=UTF-8
< Transfer-Encoding: chunked
< Connection: keep-alive
< X-Powered-By: PHP/8.1.14
< Link: <http://10.100.100.200/wp-json/>; rel="https://api.w.org/"
<
<!DOCTYPE html>
<html lang="en-US">
<head>

KeesvandenBos's avatar
KeesvandenBos
Icon for MVP rankMVP
Jul 19, 2023

Could you add the follow irule to the virtual server?

when HTTP_REQUEST {
   # Disable the stream filter for client requests
   STREAM::disable
}
when HTTP_RESPONSE {
    # Disable the stream filter for server responses
    STREAM::disable
# Enable the stream filter for text responses only

 if {([HTTP::status] == 200) && ([HTTP::header value Content-Type] starts_with "text")} {
  # Replace '10.100.100.200' with '10.200.6.1'
  STREAM::expression {@10.100.100.200@10.200.6.1@}
  # Enable the stream filter
  STREAM::enable
 }
}
  • Beginner-T's avatar
    Beginner-T
    Icon for Altostratus rankAltostratus
    Jul 21, 2023

    Thank you so much.

    I resolved the issue using your answer's iRule.



    • KeesvandenBos's avatar
      KeesvandenBos
      Icon for MVP rankMVP
      Jul 21, 2023

      Your welcome.
      But be aware, this will only work if you access the website on IP address.
      This irule will work if you access the website on DNS name.







      when HTTP_REQUEST {
   # Disable the stream filter for client requests
   set orig_host [HTTP::host]
   STREAM::disable
}
when HTTP_RESPONSE {
    # Disable the stream filter for server responses
    STREAM::disable
# Enable the stream filter for text responses only

 if {([HTTP::status] == 200) && ([HTTP::header value Content-Type] starts_with "text")} {
  # Replace '10.100.100.200' with 'host header'
  STREAM::expression {@10.100.100.200@$orig_host@}
  # Enable the stream filter
  STREAM::enable
 }
}
