Show or List F5 XC Routes in the Web
Hi F5ers,
After more than two years working with F5 XC, I have decided to explore a functionality to show the host associated with each route "I have requested this functionality to F5, but it´s in design."

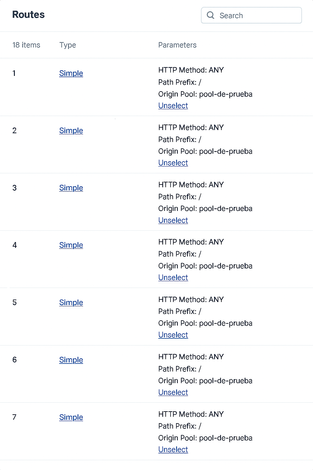

For anyone who has deployed XC and has created routes into the load balancers, they may have encountered the fact that the routes don't have any description or relevant information, and in the case that they have to find a specific route, it could be almost impossible in an incident, or it will take a lot of time to navigate the menu.
So, what I propose as an alternative solution, meanwhile, is F5 solving the request? I have designed a JavaScript that can be integrated into a bookmark "easy way", and if you copy the entire JSON configuration of the load balancer, it will show you in a console over the main XC web page the specific routes and their position in the Routes Menu.
The steps to deploy it are:

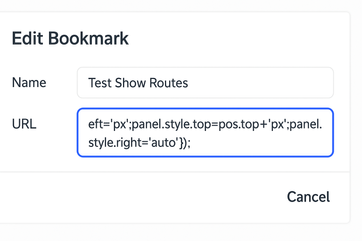

- Create a new bookmark and copy the next encoded JavaScript in the URL
New Bookmark
javascript:(async()=>{const H=h=>{if(!h)return'';const i=h.invert_match?%27NOT %27:%27%27;const n=(h.name||%27%27)+%27%27;if(n.toLowerCase()===%27host%27){if(h.regex)return`${i}Host Regex: ${h.regex}`;if(h.exact)return`${i}Host: ${h.exact}`;if(h.match_value)return`${i}Host: ${h.match_value}`;if(h.value)return`${i}Host: ${h.value}`;if(Array.isArray(h.values)&&h.values.length)return`${i}Host in [${h.values.join(%27 | %27)}]`;return`${i}Host Header Present`}if(h.regex)return`${i}Header Regex: ${n} ~ ${h.regex}`;if(h.exact)return`${i}Header: ${n} = ${h.exact}`;if(h.match_value)return`${i}Header: ${n} = ${h.match_value}`;if(h.value)return`${i}Header: ${n} = ${h.value}`;if(Array.isArray(h.values)&&h.values.length)return`${i}Header: ${n} in [${h.values.join(%27 | %27)}]`;return`${i}Header: ${n} (present)`},S=t=>{try{let s=t.replace(/^\uFEFF/,%27%27).replace(/\u200B/g,%27%27);s=s.replace(/\/\*[^]*?\*\//g,%27%27);s=s.replace(/(^|[^:])\/\/.*$/gm,%27$1%27);s=s.replace(/,\s*([}\]])/g,%27$1%27);return s}catch{return t}},J=t=>{if(!t)return null;try{return JSON.parse(t)}catch{try{return JSON.parse(S(t))}catch{return null}}},G=()=>{try{return(getSelection()?.toString()||%27%27).trim()}catch{return%27%27}},D=()=>{const o=[];document.querySelectorAll(%27pre,code,textarea,div%27).forEach(el=>{const t=(el.innerText||el.textContent||%27%27).trim();if(t&&t.includes(%27"spec"%27)&&t.includes(%27"routes"%27)&&t.includes(%27"metadata"%27))o.push(t)});return o},P=a=>{for(const r of a){let t=r,i=t.indexOf(%27{%27),j=t.lastIndexOf(%27}%27);if(i>=0&&j>i)t=t.slice(i,j+1);const x=J(t);if(x?.spec?.routes)return x}return null},M=()=>{try{if(window.monaco?.editor?.getModels){for(const m of window.monaco.editor.getModels()){const txt=m.getValue?.();const j=J(txt);if(j?.spec?.routes)return j}}}catch{}return null},Q=onOk=>{const host=document.createElement(%27div%27),shadow=host.attachShadow({mode:%27open%27}),ov=document.createElement(%27div%27);ov.style.cssText=%27position:fixed;inset:0;z-index:1000000;background:rgba(0,0,0,.55);display:flex;align-items:center;justify-content:center;outline:none;%27;ov.tabIndex=0;const box=document.createElement(%27div%27);box.style.cssText=%27width:min(960px,92vw);height:min(76vh,720px);background:#111;color:#eee;border:1px solid #444;border-radius:10px;box-shadow:0 8px 24px rgba(0,0,0,.35);display:flex;flex-direction:column';const head=document.createElement('div');head.style.cssText='padding:10px 12px;border-bottom:1px solid #333;font:600 14px system-ui';head.textContent='Pega o carga el JSON del HTTP LB (vista JSON)';const bar=document.createElement('div');bar.style.cssText='display:flex;gap:8px;align-items:center;padding:8px 12px;border-bottom:1px solid #333';const btnRead=document.createElement('button');btnRead.textContent='📋 Leer portapapeles';btnRead.title='Requiere permiso del navegador';btnRead.style.cssText='background:#2b2b2b;color:#ddd;border:1px solid #444;border-radius:6px;padding:6px 10px;cursor:pointer';btnRead.onclick=async()=>{try{const txt=await navigator.clipboard.readText();ta.value=txt;ta.focus()}catch{alert('No se pudo leer del portapapeles. Permite el permiso o usa Archivo.')}};const file=document.createElement('input');file.type='file';file.accept='.json,.txt,application/json,text/plain';file.style.cssText='color:#bbb';file.onchange=async e=>{const f=e.target.files?.[0];if(!f)return;const txt=await f.text();ta.value=txt;ta.focus()};const tip=document.createElement('div');tip.style.cssText='margin-left:auto;color:#aaa;font-size:12px';tip.textContent='Consejo: arrastra y suelta un archivo aquí';bar.append(btnRead,file,tip);const ta=document.createElement('textarea');ta.style.cssText='flex:1;padding:10px 12px;background:#0f0f0f;color:#eee;border:0;outline:none;resize:none;font:12px/1.4 ui-monospace,Menlo,Consolas,monospace';ta.placeholder='Pega aquí el JSON (Ctrl+V). Si la página intercepta, usa "Leer portapapeles" o Archivo.';const pasteToTa=async e=>{try{let d=e.clipboardData?.getData('text/plain');if(!d&&navigator.clipboard?.readText)d=await navigator.clipboard.readText();if(typeof d==='string'){const st=ta.selectionStart??ta.value.length,en=ta.selectionEnd??ta.value.length;ta.value=ta.value.slice(0,st)+d+ta.value.slice(en);const pos=st+d.length;ta.setSelectionRange(pos,pos);ta.focus()}}catch{}};const globalPaste=e=>{e.stopImmediatePropagation?.();e.stopPropagation();e.preventDefault();pasteToTa(e)};window.addEventListener('paste',globalPaste,true);ta.addEventListener('dragover',e=>{e.preventDefault();ta.style.outline='1px dashed #555'});ta.addEventListener('dragleave',()=>ta.style.outline='');ta.addEventListener('drop',async e=>{e.preventDefault();ta.style.outline='';const f=e.dataTransfer.files?.[0];if(f)ta.value=await f.text()});const foot=document.createElement('div');foot.style.cssText='display:flex;gap:10px;justify-content:flex-end;padding:10px 12px;border-top:1px solid #333';const ok=document.createElement('button');ok.textContent='Validar y mostrar';ok.style.cssText='background:#2b2b2b;color:#ddd;border:1px solid #444;border-radius:6px;padding:6px 12px;cursor:pointer';ok.onclick=()=>{const j=J(ta.value);if(!(j?.spec?.routes)){alert('No parece un JSON válido con spec.routes.\nAsegúrate de copiar la vista JSON completa.');return}cleanup();onOk(j)};const cancel=document.createElement('button');cancel.textContent='Cancelar';cancel.style.cssText='background:#222;color:#bbb;border:1px solid #444;border-radius:6px;padding:6px 12px;cursor:pointer';const cleanup=()=>{try{window.removeEventListener('paste',globalPaste,true)}catch{}host.remove()};cancel.onclick=cleanup;foot.append(ok,cancel);box.append(head,bar,ta,foot);ov.append(box);shadow.append(ov);document.body.append(host);setTimeout(()=>ta.focus(),0);ov.addEventListener('mousedown',()=>ta.focus())},A=()=>{const s=G();let j=J(s);if(j?.spec?.routes)return Promise.resolve(j);j=M();if(j?.spec?.routes)return Promise.resolve(j);const hits=D();j=P(hits);if(j?.spec?.routes)return Promise.resolve(j);return new Promise(res=>Q(res))},R=jobj=>{const routes=jobj?.spec?.routes||[],id='xcHostMatchesPanel';document.getElementById(id)?.remove();const panel=document.createElement('div');panel.id=id;panel.style.cssText=['position:fixed','z-index:999999','top:12px','left:12px','max-width:560px','max-height:75vh','overflow:auto','background:#111','color:#eee','border:1px solid #444','border-radius:8px','font:13px/1.35 system-ui,Segoe UI,Roboto,Arial','padding:0','box-shadow:0 8px 24px rgba(0,0,0,.35)','cursor:grab'].join(';');const header=document.createElement('div');header.style.cssText='user-select:none;background:#1b1b1b;border-bottom:1px solid #333;border-top-left-radius:8px;border-top-right-radius:8px;padding:8px 12px;position:relative';header.innerHTML='<div style="font-weight:600">F5 XC — Host match (sin API)</div><div style="opacity:.8;font-size:12px">Fuente: selección/DOM/portapapeles/archivo</div>';const close=document.createElement('button');close.textContent='×';close.title='Cerrar';close.style.cssText='position:absolute;top:6px;right:8px;background:#333;color:#ddd;border:0;border-radius:4px;padding:2px 6px;cursor:pointer';close.addEventListener('pointerdown',e=>{e.stopPropagation();e.preventDefault()});close.addEventListener('click',e=>{e.stopPropagation();e.preventDefault();cleanup()});header.appendChild(close);panel.appendChild(header);const body=document.createElement('div');body.style.cssText='padding:10px 12px 8px';const hr=()=>{const x=document.createElement('div');x.style.cssText='height:1px;background:#333;margin:8px 0';body.appendChild(x)};if(!routes.length){body.append('Sin routes en el JSON.')}else{routes.forEach((r,i)=>{const idx=i+1,s=r.simple_route||{},rd=r.redirect_route||{};let host='';const others=[];(s.headers||[]).forEach(h=>{const t=H(h);((h.name||'').toLowerCase()==='host')?(host=host||t):others.push(t)});(rd.headers||[]).forEach(h=>{const t=H(h);((h.name||'').toLowerCase()==='host')?(host=host||t):others.push(t)});const path=s.path?(s.path.prefix?%60Path Match: ${s.path.prefix}%60:(s.path.regex?%60Path Regex: ${s.path.regex}%60:'')):(rd.path&&rd.path.prefix?%60Path Match: ${rd.path.prefix}%60:'');const type=s?'Simple Route':(rd?'Redirect Route':'(otro)');const block=document.createElement('div');block.style.marginBottom='8px';block.innerHTML=%60<div style="color:#8bd;">#${idx} — ${type}</div>%60+(host?%60<div>• ${host}</div>%60:'<div>• (sin Host)</div>')+(path?%60<div>• ${path}</div>%60:'')+(others.length?%60<div>• ${others.join('<br>• ')}</div>%60:'');body.appendChild(block);hr()})}const foot=document.createElement('div');foot.style.cssText='display:flex;gap:8px;align-items:center;justify-content:space-between';const left=document.createElement('div');left.style.cssText='display:flex;gap:8px;align-items:center';const reset=document.createElement('button');reset.textContent='Reset posición';reset.style.cssText='background:#2b2b2b;color:#ddd;border:1px solid #444;border-radius:4px;padding:4px 8px;cursor:pointer';reset.onclick=()=>{panel.style.left='12px';panel.style.top='12px';panel.style.right='auto';localStorage.removeItem('XC_PANEL_POS')};left.appendChild(reset);foot.appendChild(left);body.appendChild(foot);panel.appendChild(body);document.body.appendChild(panel);const clamp=(v,min,max)=>Math.max(min,Math.min(max,v)),restore=()=>{try{const pos=JSON.parse(localStorage.getItem('XC_PANEL_POS')||'null');if(pos&&typeof pos.left==='number'&&typeof pos.top==='number'){panel.style.left=pos.left+'px';panel.style.top=pos.top+'px';panel.style.right='auto'}}catch{}},save=()=>{try{const r=panel.getBoundingClientRect();localStorage.setItem('XC_PANEL_POS',JSON.stringify({left:Math.round(r.left),top:Math.round(r.top)}))}catch{}};restore();let drag=false,sx=0,sy=0,sl=0,st=0;function onKey(e){if(e.key==='Escape')cleanup()}function cleanup(){try{window.removeEventListener('keydown',onKey)}catch{}panel.remove()}panel.addEventListener('pointerdown',e=>{if(e.button!==0)return;if(e.target.closest("button, a, input, textarea, select, [draggable='true']"))return;drag=true;panel.setPointerCapture(e.pointerId);sx=e.clientX;sy=e.clientY;const r=panel.getBoundingClientRect();sl=r.left;st=r.top;panel.style.willChange='left, top';panel.style.transition='none';panel.style.cursor='grabbing'});panel.addEventListener('pointermove',e=>{if(!drag)return;const dx=e.clientX-sx,dy=e.clientY-sy,w=panel.offsetWidth,h=panel.offsetHeight,maxL=innerWidth-w-6,maxT=innerHeight-h-6,newL=clamp(sl+dx,6,Math.max(6,maxL)),newT=clamp(st+dy,6,Math.max(6,maxT));panel.style.left=newL+'px';panel.style.top=newT+'px';panel.style.right='auto'});panel.addEventListener('pointerup',e=>{if(!drag)return;drag=false;panel.releasePointerCapture(e.pointerId);panel.style.willChange='';panel.style.cursor='grab';save()});window.addEventListener('resize',()=>{save();restore()});window.addEventListener('keydown',onKey)};try{const json=await A();R(json)}catch(e){console.error(e);alert('No fue posible obtener el JSON. Abre la vista JSON del LB o usa el cuadro para pegar/cargar.')}})();
If you want to explore the JavaScript code, I will leave it at the end of the publication.
How does it work?

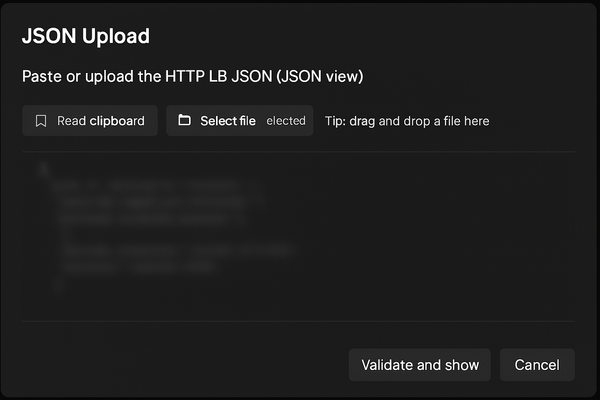

- Copy or upload the JSON code of the load balancer
- In the XC web menu, execute the bookmark and copy the JSON code, and then click on validate and show.

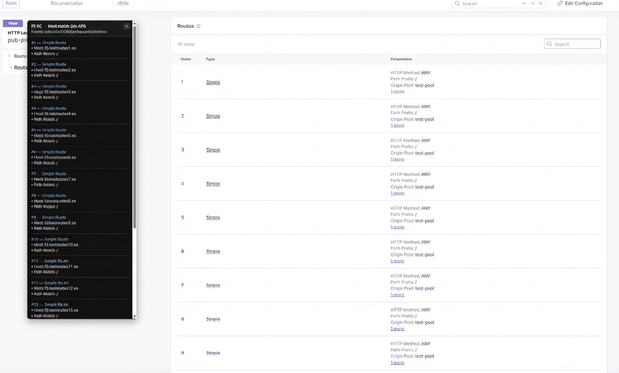

- It shows you the specific routes and number position for each route, giving the possibility to find the required route easily and quickly.
Hope it works for anyone who has the same problem as me.
The JavaScript code is:
(async () => {
/**
* F5 XC Host Match Viewer (sin API) — blindado contra listeners externos
* - Fuentes: Selección | Monaco | DOM | Cuadro (Pegar / Portapapeles / Archivo)
* - Intercepción GLOBAL de 'paste' (captura) mientras el cuadro está abierto:
* redirige el contenido al <textarea> propio y corta la propagación/defecto.
* - Panel arrastrable, ESC/× para cerrar, posición persistente.
*/
// ---------- Utils ----------
const formatHeader = (h) => {
if (!h) return '';
const inv = h.invert_match ? 'NOT ' : '';
const name = (h.name || '').toString();
if (name.toLowerCase() === 'host') {
if (h.regex) return `${inv}Host Regex: ${h.regex}`;
if (h.exact) return `${inv}Host: ${h.exact}`;
if (h.match_value) return `${inv}Host: ${h.match_value}`;
if (h.value) return `${inv}Host: ${h.value}`;
if (Array.isArray(h.values) && h.values.length) {
return `${inv}Host in [${h.values.join(' | ')}]`;
}
return `${inv}Host Header Present`;
}
if (h.regex) return `${inv}Header Regex: ${name} ~ ${h.regex}`;
if (h.exact) return `${inv}Header: ${name} = ${h.exact}`;
if (h.match_value) return `${inv}Header: ${name} = ${h.match_value}`;
if (h.value) return `${inv}Header: ${name} = ${h.value}`;
if (Array.isArray(h.values) && h.values.length) {
return `${inv}Header: ${name} in [${h.values.join(' | ')}]`;
}
return `${inv}Header: ${name} (present)`;
};
const sanitizeJson = (text) => {
try {
let s = text.replace(/^\uFEFF/, '').replace(/\u200B/g, '');
s = s.replace(/\/\*[^]*?\*\//g, ''); // /* ... */
s = s.replace(/(^|[^:])\/\/.*$/gm, '$1'); // // ... (evita http://)
s = s.replace(/,\s*([}\]])/g, '$1'); // comas colgantes
return s;
} catch { return text; }
};
const tryParseJson = (text) => {
if (!text) return null;
try { return JSON.parse(text); }
catch { try { return JSON.parse(sanitizeJson(text)); } catch { return null; } }
};
const getSelectionText = () => {
try { return (window.getSelection()?.toString() || '').trim(); }
catch { return ''; }
};
const findDomCandidates = () => {
const out = [];
document.querySelectorAll('pre,code,textarea,div').forEach(el => {
const t = (el.innerText || el.textContent || '').trim();
if (t && t.includes('"spec"') && t.includes('"routes"') && t.includes('"metadata"')) out.push(t);
});
return out;
};
const parseFirstJson = (texts) => {
for (const raw of texts) {
let t = raw;
const i = t.indexOf('{'), j = t.lastIndexOf('}');
if (i >= 0 && j > i) t = t.slice(i, j + 1);
const jn = tryParseJson(t);
if (jn?.spec?.routes) return jn;
}
return null;
};
const tryMonacoModels = () => {
try {
if (window.monaco?.editor?.getModels) {
for (const m of window.monaco.editor.getModels()) {
const txt = m.getValue?.();
const j = tryParseJson(txt);
if (j?.spec?.routes) return j;
}
}
} catch {}
return null;
};
// ---------- Cuadro Pegar/Archivo con Shadow DOM + PASTE GLOBAL ----------
let modalState = { open: false, ta: null, host: null, removeGlobal: null };
const showPasteOrFileModal = (onOk) => {
// Shadow host para aislar el cuadro
const host = document.createElement('div');
const shadow = host.attachShadow({ mode: 'open' });
// Overlay clicable (lleva el foco al textarea)
const ov = document.createElement('div');
ov.style.cssText =
'position:fixed;inset:0;z-index:1000000;background:rgba(0,0,0,.55);display:flex;align-items:center;justify-content:center;outline:none;';
ov.tabIndex = 0; // para recibir foco
ov.addEventListener('mousedown', () => ta?.focus());
const box = document.createElement('div');
box.style.cssText =
'width:min(960px,92vw);height:min(76vh,720px);background:#111;color:#eee;border:1px solid #444;border-radius:10px;' +
'box-shadow:0 8px 24px rgba(0,0,0,.35);display:flex;flex-direction:column';
const head = document.createElement('div');
head.style.cssText = 'padding:10px 12px;border-bottom:1px solid #333;font:600 14px system-ui';
head.textContent = 'Pega o carga el JSON del HTTP LB (vista JSON)';
const bar = document.createElement('div');
bar.style.cssText = 'display:flex;gap:8px;align-items:center;padding:8px 12px;border-bottom:1px solid #333';
const btnRead = document.createElement('button');
btnRead.textContent = '📋 Leer portapapeles';
btnRead.title = 'Requiere permiso del navegador';
btnRead.style.cssText = 'background:#2b2b2b;color:#ddd;border:1px solid #444;border-radius:6px;padding:6px 10px;cursor:pointer';
btnRead.onclick = async () => {
try {
const txt = await navigator.clipboard.readText();
ta.value = txt;
ta.focus();
} catch { alert('No se pudo leer del portapapeles. Permite el permiso o usa Archivo.'); }
};
const file = document.createElement('input');
file.type = 'file';
file.accept = '.json,.txt,application/json,text/plain';
file.style.cssText = 'color:#bbb';
file.onchange = async (e) => {
const f = e.target.files?.[0];
if (!f) return;
const txt = await f.text();
ta.value = txt;
ta.focus();
};
const tip = document.createElement('div');
tip.style.cssText = 'margin-left:auto;color:#aaa;font-size:12px';
tip.textContent = 'Consejo: arrastra y suelta un archivo aquí';
bar.append(btnRead, file, tip);
const ta = document.createElement('textarea');
ta.style.cssText =
'flex:1;padding:10px 12px;background:#0f0f0f;color:#eee;border:0;outline:none;resize:none;font:12px/1.4 ui-monospace,Menlo,Consolas,monospace';
ta.placeholder = 'Pega aquí el JSON (Ctrl+V). Si la página intercepta, usa "Leer portapapeles" o Archivo.';
// Pegar “blindado” en el <textarea>
const pasteToTa = async (e) => {
try {
let data = e.clipboardData?.getData('text/plain');
if (!data && navigator.clipboard?.readText) {
// Fallback si el navegador no expone clipboardData al evento
data = await navigator.clipboard.readText();
}
if (typeof data === 'string') {
const start = ta.selectionStart ?? ta.value.length;
const end = ta.selectionEnd ?? ta.value.length;
ta.value = ta.value.slice(0, start) + data + ta.value.slice(end);
const pos = start + data.length;
ta.setSelectionRange(pos, pos);
ta.focus();
}
} catch {}
};
// Interceptor GLOBAL (captura) — redirige SIEMPRE el paste al <textarea>
const globalPasteCapture = (e) => {
if (!modalState.open) return;
e.stopImmediatePropagation?.();
e.stopPropagation();
e.preventDefault();
pasteToTa(e);
};
window.addEventListener('paste', globalPasteCapture, true);
// Drag&drop de archivo al <textarea>
ta.addEventListener('dragover', e => { e.preventDefault(); ta.style.outline = '1px dashed #555'; });
ta.addEventListener('dragleave', () => { ta.style.outline = ''; });
ta.addEventListener('drop', async e => {
e.preventDefault();
ta.style.outline = '';
const f = e.dataTransfer.files?.[0];
if (f) ta.value = await f.text();
});
const foot = document.createElement('div');
foot.style.cssText = 'display:flex;gap:10px;justify-content:flex-end;padding:10px 12px;border-top:1px solid #333';
const ok = document.createElement('button');
ok.textContent = 'Validar y mostrar';
ok.style.cssText = 'background:#2b2b2b;color:#ddd;border:1px solid #444;border-radius:6px;padding:6px 12px;cursor:pointer';
ok.onclick = () => {
const j = tryParseJson(ta.value);
if (!(j?.spec?.routes)) {
alert('No parece un JSON válido con spec.routes.\nAsegúrate de copiar la vista JSON completa.');
return;
}
cleanup();
onOk(j);
};
const cancel = document.createElement('button');
cancel.textContent = 'Cancelar';
cancel.style.cssText = 'background:#222;color:#bbb;border:1px solid #444;border-radius:6px;padding:6px 12px;cursor:pointer';
const cleanup = () => {
try { window.removeEventListener('paste', globalPasteCapture, true); } catch {}
modalState = { open: false, ta: null, host: null, removeGlobal: null };
host.remove();
};
cancel.onclick = cleanup;
foot.append(ok, cancel);
box.append(head, bar, ta, foot);
ov.append(box);
shadow.append(ov);
document.body.append(host);
// Estado global del modal
modalState = { open: true, ta, host, removeGlobal: () => window.removeEventListener('paste', globalPasteCapture, true) };
// Foco inicial y al pulsar en overlay
setTimeout(() => { ta.focus(); }, 0);
ov.addEventListener('click', (ev) => {
// Si clic fuera de controles, mueve foco al textarea
if (ev.target === ov) ta.focus();
});
};
// ---------- Flujo de adquisición ----------
const acquireJson = () => {
const sel = getSelectionText();
let j = tryParseJson(sel);
if (j?.spec?.routes) return Promise.resolve(j);
j = tryMonacoModels();
if (j?.spec?.routes) return Promise.resolve(j);
const hits = findDomCandidates();
j = parseFirstJson(hits);
if (j?.spec?.routes) return Promise.resolve(j);
return new Promise(res => showPasteOrFileModal(res));
};
// ---------- Panel ----------
const drawPanel = (jobj) => {
const routes = jobj?.spec?.routes || [];
const id = 'xcHostMatchesPanel';
document.getElementById(id)?.remove();
const panel = document.createElement('div');
panel.id = id;
panel.style.cssText = [
'position:fixed','z-index:999999','top:12px','left:12px',
'max-width:560px','max-height:75vh','overflow:auto',
'background:#111','color:#eee','border:1px solid #444','border-radius:8px',
'font:13px/1.35 system-ui,Segoe UI,Roboto,Arial','padding:0',
'box-shadow:0 8px 24px rgba(0,0,0,.35)','cursor:grab'
].join(';');
const header = document.createElement('div');
header.style.cssText = 'user-select:none;background:#1b1b1b;border-bottom:1px solid #333;border-top-left-radius:8px;border-top-right-radius:8px;padding:8px 12px;position:relative';
header.innerHTML = `
<div style="font-weight:600">F5 XC — Host match (sin API)</div>
<div style="opacity:.8;font-size:12px">Fuente: selección/DOM/portapapeles/archivo</div>
`;
const close = document.createElement('button');
close.textContent = '×';
close.title = 'Cerrar';
close.style.cssText = 'position:absolute;top:6px;right:8px;background:#333;color:#ddd;border:0;border-radius:4px;padding:2px 6px;cursor:pointer';
close.addEventListener('pointerdown', (e) => { e.stopPropagation(); e.preventDefault(); });
close.addEventListener('click', (e) => { e.stopPropagation(); e.preventDefault(); cleanup(); });
header.appendChild(close);
panel.appendChild(header);
const body = document.createElement('div');
body.style.cssText = 'padding:10px 12px 8px';
const hr = () => {
const x = document.createElement('div');
x.style.cssText = 'height:1px;background:#333;margin:8px 0';
body.appendChild(x);
};
if (!routes.length) {
body.append('Sin routes en el JSON.');
} else {
routes.forEach((r, i) => {
const idx = i + 1;
const s = r.simple_route || {};
const rd = r.redirect_route || {};
let hostLine = '';
const others = [];
(s.headers || []).forEach(h => {
const t = formatHeader(h);
((h.name || '').toLowerCase() === 'host') ? (hostLine = hostLine || t) : others.push(t);
});
(rd.headers || []).forEach(h => {
const t = formatHeader(h);
((h.name || '').toLowerCase() === 'host') ? (hostLine = hostLine || t) : others.push(t);
});
const path =
s.path
? (s.path.prefix ? `Path Match: ${s.path.prefix}` : (s.path.regex ? `Path Regex: ${s.path.regex}` : ''))
: (rd.path && rd.path.prefix ? `Path Match: ${rd.path.prefix}` : '');
const type = s ? 'Simple Route' : (rd ? 'Redirect Route' : '(otro)');
const block = document.createElement('div');
block.style.marginBottom = '8px';
block.innerHTML =
`<div style="color:#8bd;">#${idx} — ${type}</div>` +
(hostLine ? `<div>• ${hostLine}</div>` : '<div>• (sin Host)</div>') +
(path ? `<div>• ${path}</div>` : '') +
(others.length ? `<div>• ${others.join('<br>• ')}</div>` : '');
body.appendChild(block);
hr();
});
}
const foot = document.createElement('div');
foot.style.cssText = 'display:flex;gap:8px;align-items:center;justify-content:space-between';
const left = document.createElement('div');
left.style.cssText = 'display:flex;gap:8px;align-items:center';
const reset = document.createElement('button');
reset.textContent = 'Reset posición';
reset.style.cssText = 'background:#2b2b2b;color:#ddd;border:1px solid #444;border-radius:4px;padding:4px 8px;cursor:pointer';
reset.onclick = () => {
panel.style.left = '12px';
panel.style.top = '12px';
panel.style.right = 'auto';
localStorage.removeItem('XC_PANEL_POS');
};
left.appendChild(reset);
foot.appendChild(left);
body.appendChild(foot);
panel.appendChild(body);
document.body.appendChild(panel);
// ---- Drag & persistencia ----
const clamp = (v, min, max) => Math.max(min, Math.min(max, v));
const restore = () => {
try {
const pos = JSON.parse(localStorage.getItem('XC_PANEL_POS') || 'null');
if (pos && typeof pos.left === 'number' && typeof pos.top === 'number') {
panel.style.left = pos.left + 'px';
panel.style.top = pos.top + 'px';
panel.style.right = 'auto';
}
} catch {}
};
const save = () => {
try {
const r = panel.getBoundingClientRect();
localStorage.setItem('XC_PANEL_POS', JSON.stringify({
left: Math.round(r.left),
top : Math.round(r.top),
}));
} catch {}
};
restore();
let dragging = false, sx = 0, sy = 0, sl = 0, st = 0;
function onKey(ev) { if (ev.key === 'Escape') cleanup(); }
window.addEventListener('keydown', onKey);
function cleanup() {
try { window.removeEventListener('keydown', onKey); } catch {}
panel.remove();
}
panel.addEventListener('pointerdown', (e) => {
if (e.button !== 0) return;
if (e.target.closest("button, a, input, textarea, select, [draggable='true']")) return;
dragging = true;
panel.setPointerCapture(e.pointerId);
sx = e.clientX; sy = e.clientY;
const r = panel.getBoundingClientRect();
sl = r.left; st = r.top;
panel.style.willChange = 'left, top';
panel.style.transition = 'none';
panel.style.cursor = 'grabbing';
});
panel.addEventListener('pointermove', (e) => {
if (!dragging) return;
const dx = e.clientX - sx;
const dy = e.clientY - sy;
const w = panel.offsetWidth;
const h = panel.offsetHeight;
const maxLeft = innerWidth - w - 6;
const maxTop = innerHeight - h - 6;
const newLeft = clamp(sl + dx, 6, Math.max(6, maxLeft));
const newTop = clamp(st + dy, 6, Math.max(6, maxTop));
panel.style.left = newLeft + 'px';
panel.style.top = newTop + 'px';
panel.style.right = 'auto';
});
panel.addEventListener('pointerup', (e) => {
if (!dragging) return;
dragging = false;
panel.releasePointerCapture(e.pointerId);
panel.style.willChange = '';
panel.style.cursor = 'grab';
save();
});
window.addEventListener('resize', () => { save(); restore(); });
};
// ---------- Ejecuta ----------
try {
const json = await (async () => {
const sel = getSelectionText();
let j = tryParseJson(sel);
if (j?.spec?.routes) return j;
j = tryMonacoModels();
if (j?.spec?.routes) return j;
const hits = findDomCandidates();
j = parseFirstJson(hits);
if (j?.spec?.routes) return j;
return await new Promise(res => showPasteOrFileModal(res));
})();
drawPanel(json);
} catch (e) {
console.error(e);
alert('No fue posible obtener el JSON. Abre la vista JSON del LB o usa el cuadro para pegar/cargar.');
}
})();
1 Reply
- Nikoolayy1
MVP
Hey Sebastiansierra this is great for a community article and code share of the javascript under CrowdSRC.
