Routing Issue

Hi,



I'm using F5 LTM 1600. Currently we hosted web portal on virtual ip 192.168.1.xxx. So i want this server under 192.168.1.xxx communicate with server on 172.17.0.xxx. I already plug in utp cable on 1.2 port for 172.17.0.xxx. So how do routing for both segment can communicate? Please advice.



Thanks.



16 Replies

Show More
  • nitass's avatar
    nitass
    Icon for Employee rankEmployee
    Dec 29, 2013

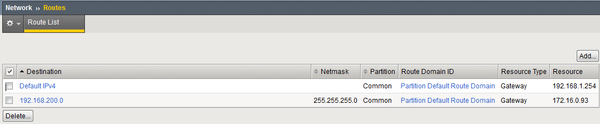

    Check my config here: config

    it is virtual VS_DRC, isn't it?

    My server on internal vlan still cannot ping server at DC (192.168.200.1)

    can you run tcpdump to see where the wrong is?

    e.g.

     tcpdump -nni 0.0:nnn -s0 -w /var/tmp/output.pcap host 192.168.200.1 and icmp -v
  • nitass's avatar
    nitass
    Icon for Employee rankEmployee
    Dec 29, 2013

    I run this command on F5 but it's not capture anything.



    is routing at server in internal vlan correct?



  • nitass's avatar
    nitass
    Icon for Employee rankEmployee
    Dec 29, 2013

    You should able to see from config i give it on previous comment.



    i was asking routing table at server in internal vlan (not routing in f5).
