Keycloak as idp for APM

OK I tried to use the f5 as a resource server to validate JWT token.

Did you manage to do it using the oauth provider configuration with OpenID Connect discovery like https://keycloakhost:keycloakport/auth/realms/master/.well-known/openid-configuration ?

Because for me, the discovery works but if I use the auto-JWT part, on save, f5 tell me about an issue of certificate (the CA bunble provided in config is the one of the certificate for the OpenId discovery link, may be not the same use by master realm to sign token or authorisation code). So I created the JWKS part manualy.

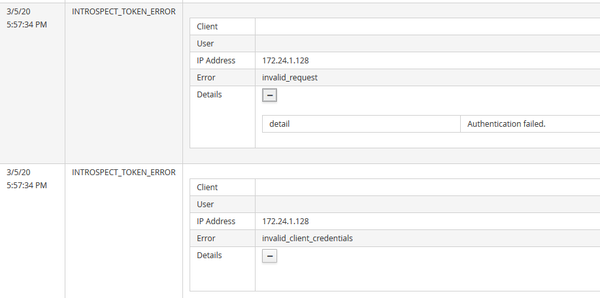

A request to the f5 APM VIP well redirect to the keycloack for AUTH but once authenticated the F5 tell that it cannot validate the token or auth code provided by the keycloak.

As the password grant type has been deprecated, did you manage to make it work using the authorisation code flow?

Also, wonder if for the step scope validation, you use the f5 type or have created some specific for keycloak?.

Yes, if someone have time to do a detailed write up on dev central on how to configure APM with OpenID as Client and/or Ressource server for using with keycloak or any on premise custom Provider, I think this will help a lot of people.

Thanks.

Thanks JorenC. I was finally able to made this working.

Capturing the RSA was not working due to RSA-DHE but I find another way using request logger in keycloak server : https://mirocupak.com/logging-requests-with-undertow/

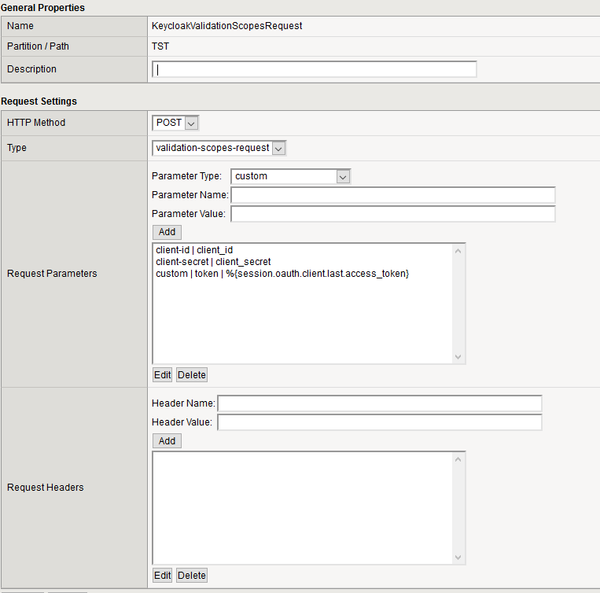

And it seems that the f5 introspect request is not working as excepted in v15.1 because using the Keycloak scope request posted above the result was :

2020-03-09 13:06:30,504 INFO  [io.undertow.request.dump] (default task-15)
----------------------------REQUEST---------------------------
               URI=/auth/realms/master/protocol/openid-connect/token/introspect
 characterEncoding=null
     contentLength=1666
       contentType=[application/x-www-form-urlencoded]
            header=Proxy-Connection=Keep-Alive
            header=Accept=*/*
            header=User-Agent=F5 OAuth Client
            header=Authorization=Bearer eyJhbGciOiJSUzI1NiIsInR5cCIgOiAiSldUIiwia2lkIiA6ICJ5bzhwdzhZcHJ1UG96QzVuX0cyVHZVSVbOzSDkNlPyDi5A
            header=oauth_dns_resolver_name=/Common/172.xx.xx.xx
            header=oauth_serverssl_name=/Common/keycloak-publicssl
            header=Expect=100-continue
            header=Content-Type=application/x-www-form-urlencoded
            header=Content-Length=1666
            header=Host=keycloak.xxxxx.lu:8443
            locale=[]
            method=POST
          protocol=HTTP/1.1
       queryString=
        remoteAddr=/172.xx.xx.xx:17741
        remoteHost=172.xx.xx.xx
            scheme=https
              host=keycloak.xxxxx.lu:8443
        serverPort=8443
          isSecure=true
body=
%{session.oauth.client.last.access_token}=eyJhbGciOiJSUzI1NiIsInR5cCIgOiAiSldUIiwia2lkIiA6ICJ5bzhwdzhZcHJ1UG96QzVuX0cyVHZVSVbOzSDkNlPyDi5A
token_type_hint=access_token
--------------------------RESPONSE--------------------------
     contentLength=72
       contentType=application/json
            header=Connection=keep-alive
            header=Content-Type=application/json
            header=Content-Length=72
            header=Date=Mon, 09 Mar 2020 12:06:30 GMT
            status=401

And we see now that the F5 :

• send %{session.oauth.client.last.access_token} in place of token
• miss to send the client-id and client-secret parameters in the body
• send to much useless info to the keycloak like dns resolvers IP, backend server IP, ssl profile....

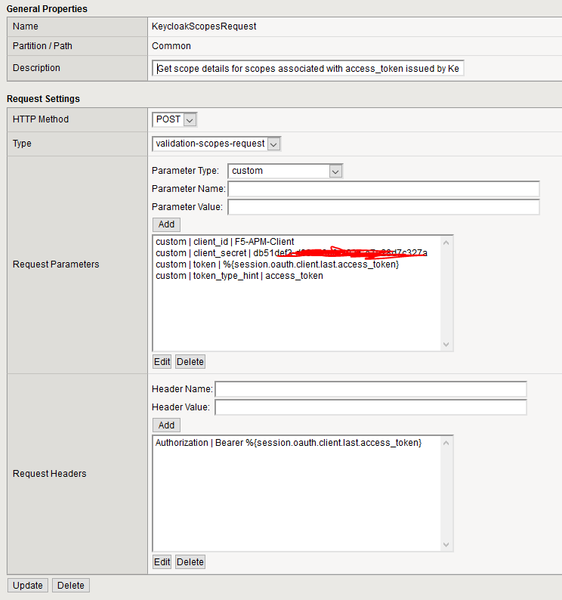

So I rebuild the request using only custom fields even for those by default like token, client-id...:

and then now it works ! 🙂

I do the same for userinfo request also.

----------------------------REQUEST---------------------------
               URI=/auth/realms/master/protocol/openid-connect/token/introspect
 characterEncoding=null
     contentLength=1699
       contentType=[application/x-www-form-urlencoded]
            header=Proxy-Connection=Keep-Alive
            header=Accept=*/*
            header=User-Agent=F5 OAuth Client
            header=Authorization=Bearer hVhS2-trG8FsmeRyThTJ7zMGspLxZFGxV9kYjo
            header=oauth_dns_resolver_name=/Common/172.xxx.xx.xx
            header=oauth_serverssl_name=/Common/keycloak-publicssl
            header=Expect=100-continue
            header=Content-Length=1699
            header=Content-Type=application/x-www-form-urlencoded
            header=Host=keycloak.xxxxx.lu:8443
            locale=[]
            method=POST
          protocol=HTTP/1.1
       queryString=
        remoteAddr=/172.xx.xx.xx:47015
        remoteHost=172.xx.xx.xx
            scheme=https
              host=keycloak.xxxxx.lu:8443
        serverPort=8443
          isSecure=true
body=
client_id=F5-APM-Client
client_secret=db51def3-xxxx-xxxx-xxxx-xxxxx
token=hVhS2-trG8FsmeRyThTJ7zMGspLxZFGxV9kYjo
token_type_hint=access_token
--------------------------RESPONSE--------------------------
     contentLength=913
       contentType=application/json
            header=Connection=keep-alive
            header=Content-Type=application/json
            header=Content-Length=913
            header=Date=Mon, 09 Mar 2020 13:33:59 GMT
            status=200

==============================================================

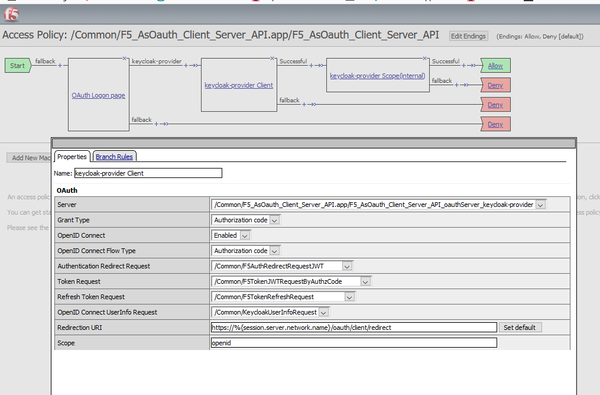

Using the F5 as a Client and Ressource server for keycloak IDP is also working using f5 request without modification:

So I can confirm that another workaround for the issuer port problem you encounter is to publish your keycloak to a non standard port.

Thanks for your help, I will do a complete configuration guide when I have time available.
