Keycloak as IDP for F5 APM via SAML

I have a requirement from our customer to do MFA authentication on F5 APM module and use Keycloak as Identity provider to control their access to web application. Since the keycloak is operate by different team, the internal operation team don’t have an authorize to do MFA on keycloak. They will use F5 APM to perform MFA instead.

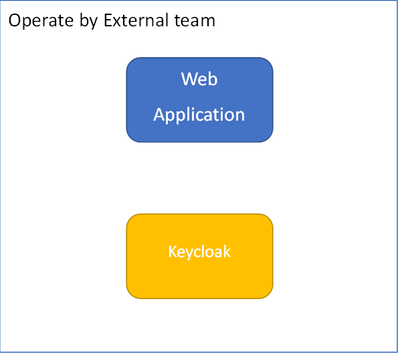

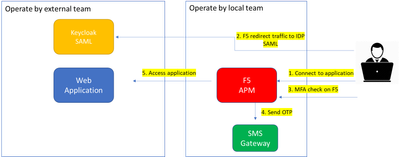

Existing environment.


Protect your web application by deploy F5 as web proxy.


Import your SAML metadata to F5 APM

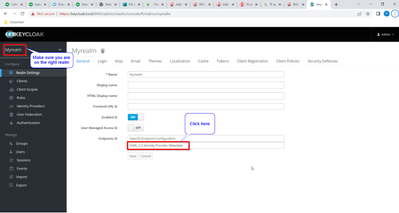

Start by login to your keycloak console and downlond SAML metadata

Make sure you have right realm selected.

Save as you metadata

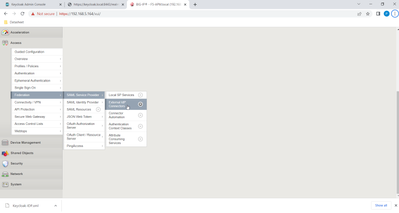

Navigate to External IDP connector

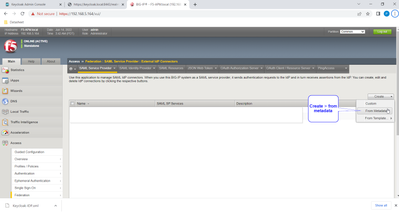

Create External IDP connector

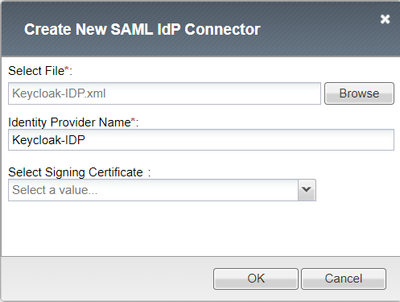

Upload your Metadata previously downloaded and name your SAML IDP connector

Create your certificate.

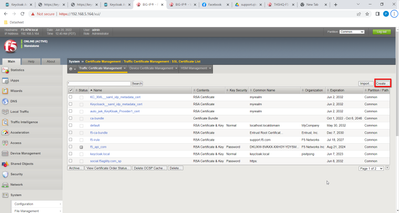

Navigate to SSL Certificate list console

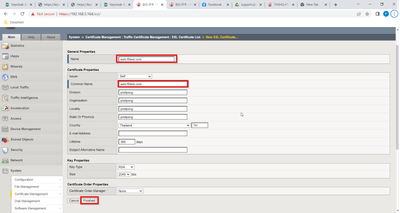

Create your new certificate

Configuration your parameter and click finish

Create your Local SP Service

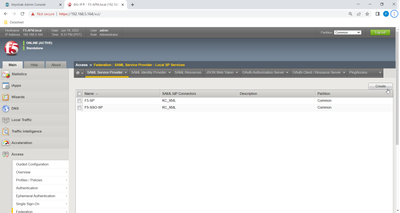

Navigate to local SP service console

Click create new SP service

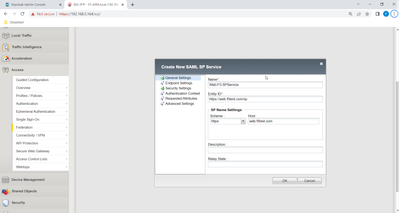

Input name, EntityID and SP name setting

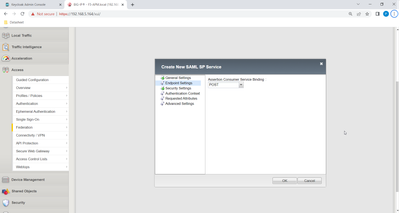

Config POST as assertion consumer service binding

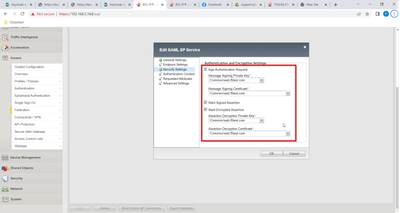

Configuration security setting with certificate generated earlier and click OK

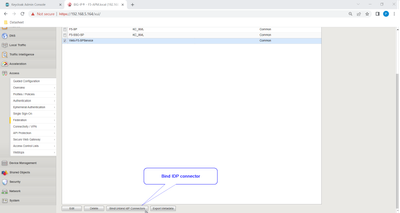

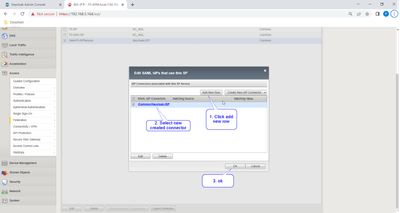

Binding your SP service with IDP connector

Select your newly SP service created

Add new row and select you IDP connector profile.

Import your SP service to Keycloak

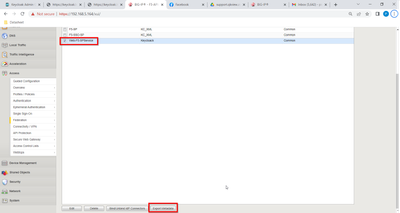

Export your SP service

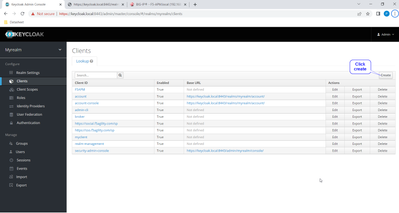

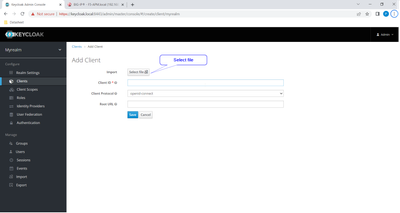

Create new client on Keycloak

Select file downloaded from previous section

Click save



1 Reply

  • Create Access policy

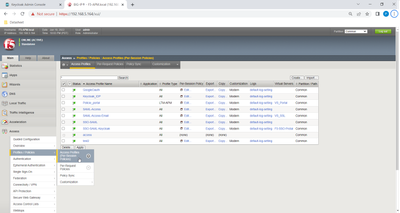

    Navigate to Access policy console

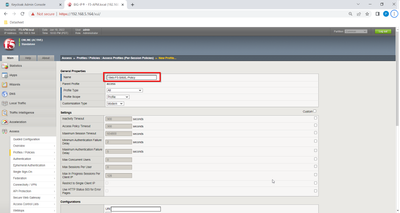

    Name Access policy, language and click finish

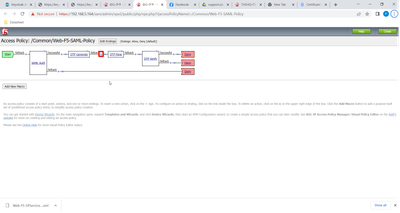

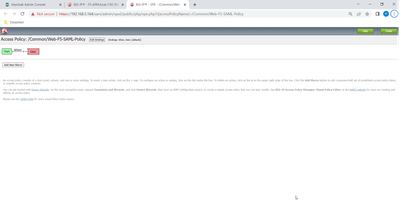

    Edit your newly created Policy

    Click add

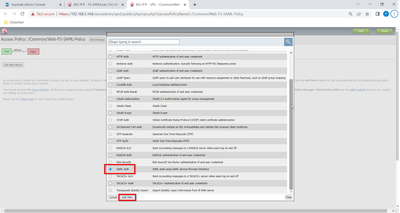

    Add SAML Auth

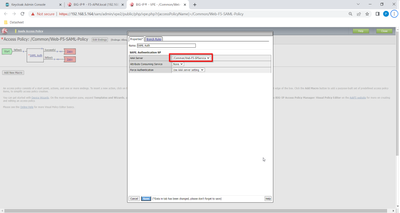

    Config SAML Auth with SP service created earlier.

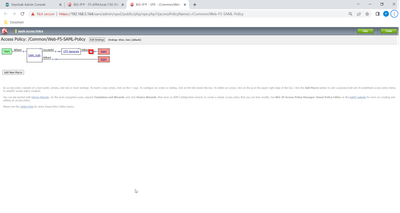

    Add OTP Generate

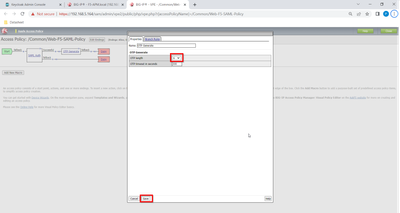

    Config OTP with 6 digital and click finish

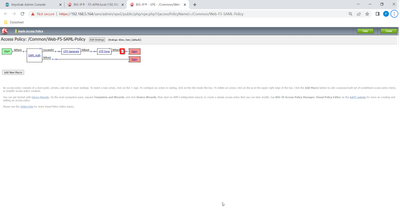

    Click add

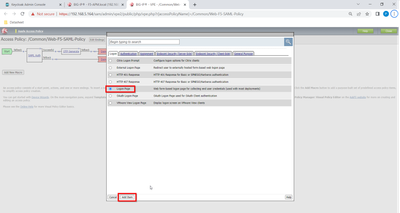

    Add logon page

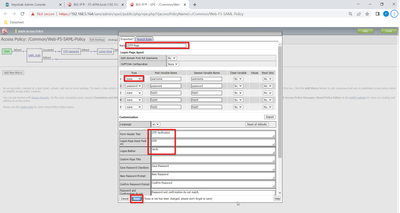

    Change username to NONE and config GUI interface and save

    Click add

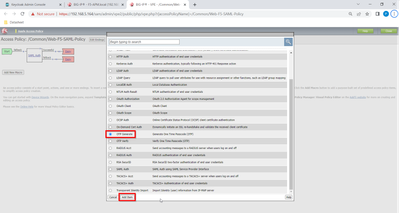

    Add OTP verify

    Use the default setting

    Click add

    Add email to send your OTP

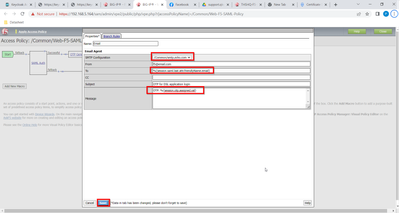

    Configuration email setting

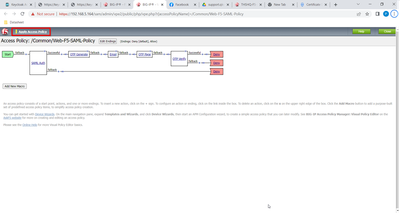

    Apply your Access policy

    Create New VIP

    Navigate to Virtual server console

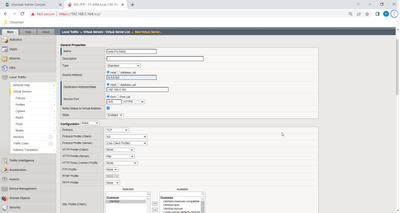

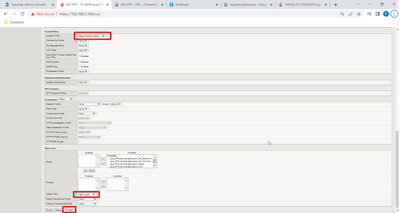

    Config parameter for your VIP

    Apply Access policies and pool. Click finish

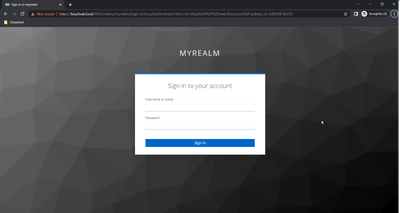

    Test your application by access
