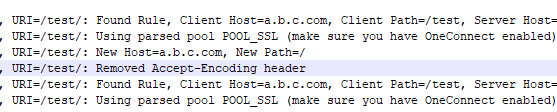

hello,we are using proxypass irule to change pool when uri parameter change , so when user is hitting a.b.c.com/start it going to defined pool in datagroup andthats working fine. Now we deploy certificates on servers side to secure traffic between F5 and physcial servers, and unfortunately it doesnt work.We set on VIP SSL Profile (Server) as profilessl , we defined correctly in ProxyPassSSLProfiles datagroup : POOL -> profilessl , and during accessing a.b.c.com/test it response with : server doesnt send any data. It looks like loop , it finding rule but cannot proceed because we not receiving data.When we access server directly( avoiding VIP) it respond without issue. Below debugging from iRule.

you see a loop, did you check HTTPS is used now? might it hit a HTTP to HTTPS redirect on the backend perhaps?

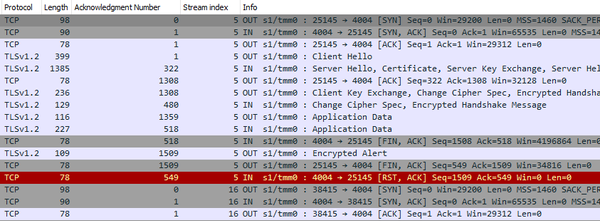

thank you for interesting of this topic. When I sniff traffic between F5 and physical server it looks like it want use SSL but strange things are happening, because it try negotiate TLS handshake and afterwards server is sending FIN. (we are using port 4004 for this communication ). Worth to mention , when I make this without proxypass its working ...

"without proxypass its working" - so, without the iRule? is your screenshot related to SSL error that you see when iRule is configured? Does it work as expected (ssl too) when you remove iRule? I would argue that in this case, default pool will always be selected (does default pool support SSL?) What's the output of this command? (replace IP with a member of POOL_SSL) (echo -e "GET /test/ HTTP/1.1\r\nHost: a.b.c.com\r\nConnection: Close\r\n\r\n";sleep 1) | openssl s_client -connect 10.xxx.yyy.zzz:4004 If your iRule balances between one pool that does not support SSL, and one that does support it, and you applied serverssl profile on Virtual Server, you might want to disable SSL when non-ssl pool is selected: when SERVER_CONNECTED { if {[LB::server port] != 4004 } { # use "AND" statement for additional ports SSL::disable } }

hello,yes, when I remove iRule-ProxyPass and choose as POOL server with ssl - it is working.You are right common/default pool for this VIP doesnt have SSL, output of command on screenshot .I had to make own lab and Its strange, I suppose issue with irule proxypass, even when I made two POOLs and each host have 443 enabled I got bad requestIt looks like server is getting requests on 80, But in LTM logs we can see I have matched serverssl profile to pool in datagroup of proxypass, also it is set on VIP (server ssl profile)

your images don't work unfortunately.

iRule proxypass with profilessl

boneyard
MVP
Nov 27, 2021
you see a loop, did you check HTTPS is used now? might it hit a HTTP to HTTPS redirect on the backend perhaps?
TTOM
Nimbostratus
Nov 29, 2021
thank you for interesting of this topic. When I sniff traffic between F5 and physical server it looks like it want use SSL but strange things are happening, because it try negotiate TLS handshake and afterwards server is sending FIN. (we are using port 4004 for this communication ). Worth to mention , when I make this without proxypass its working ...
- CA_Valli
  MVP
  Nov 29, 2021
  "without proxypass its working" - so, without the iRule?

  is your screenshot related to SSL error that you see when iRule is configured? Does it work as expected (ssl too) when you remove iRule? I would argue that in this case, default pool will always be selected (does default pool support SSL?)

  What's the output of this command? (replace IP with a member of POOL_SSL)

  (echo -e "GET /test/ HTTP/1.1\r\nHost: a.b.c.com\r\nConnection: Close\r\n\r\n";sleep 1) | openssl s_client -connect 10.xxx.yyy.zzz:4004

  If your iRule balances between one pool that does not support SSL, and one that does support it, and you applied serverssl profile on Virtual Server, you might want to disable SSL when non-ssl pool is selected:

  when SERVER_CONNECTED {
  if {[LB::server port] != 4004 } { # use "AND" statement for additional ports
  SSL::disable
  }
  }
  - TTOM
    Nimbostratus
    Dec 01, 2021
    hello,
    yes, when I remove iRule-ProxyPass and choose as POOL server with ssl - it is working.
    You are right common/default pool for this VIP doesnt have SSL, output of command on screenshot .
    I had to make own lab and Its strange, I suppose issue with irule proxypass, even when I made two POOLs and each host have 443 enabled I got bad request

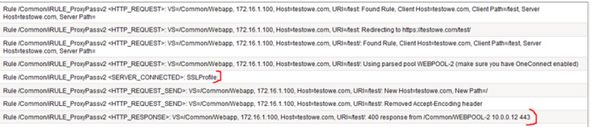

    It looks like server is getting requests on 80, But in LTM logs we can see I have matched serverssl profile to pool in datagroup of proxypass, also it is set on VIP (server ssl profile)
TTOM
Nimbostratus
Dec 07, 2021
is it now visible ?
- boneyard
  MVP
  Jan 25, 2022
  yes this works, result is weird indeed.

  if you capture do you then see a port 80 request?
  - TTOM
    Nimbostratus
    Mar 04, 2022
    hello boneyard, no, there is SSL communication too, now I testing on production but still not working... so now it looks :
    1. Hitting VIP on 443 is ok
    2. Hitting VIP with /uri which should forward traffic to POOL with SSL is NOK(port 4009), I see handshake to VIP and afterwards it correctly communicate to correct POOL on SSL port but response in browser : ERR_EMPTY_RESPONSE
    any ideas ?
