HTTPS redirect to different pools

Hi Guys,



I'm trying to use an iRule to redirect traffic based on the URL. Let me give you the example:



The Virtual server is on port 443, but the pools are on 8443 and 9443.



https://10.10.10.10/blue goto pool_b



goto pool_r





The default pool in the virtual server is pool_b_8443. Traffic gets to there no problem.

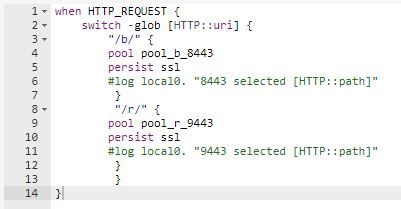

However, I can not seem to get this iRule to work.



I'm not an expert with BIG IP LTM so please go easy on me :-)



Thank you



Euan



application delivery
BIG-IP
big-ip ltm
https irule
https redirect
LTM
pool selection
  • amintej's avatar
    amintej
    Icon for Cirrus rankCirrus
    Apr 16, 2018

    Did you configure Client profile for SSL offloading in Virtual server ? SSL decryption has to be configured for HTTP traffic inspection and therefore irules manipulations.



  • Niels_van_Sluis's avatar
    Niels_van_Sluis
    Icon for MVP rankMVP
    Apr 16, 2018

    Your switch statement doesn't look right. Try this:

    when HTTP_REQUEST {
    switch -glob [HTTP::uri] {
        "/blue*" {
            pool pool_b_8443
            persist ssl
        }
        "/red*" {
            pool pool_r_9443
            persist ssl
        }
    }
}
