CirrocumulusHelp with SSH Virtual Server
Hello,
we've 2 VS for SSH ( Delinea Secret Server ), Type Performance L4, NAT: AutoMap, an appropiate L4 tcp Profile and so on.
If I try the connection with ssh -vvv admin@service.com. the connection gets established, but I don't get the challenge for the Fingerprint and no Password Prompt.
A tcpdump looks fine, no Resets or else.
I can ssh to the Pool Members from a Linux Client and from the F5 CLI without Problems.
So I think the F5 drops anywhere the Key Exchange/Fingerprint.
Any Idea?
Thank you
Karl
8 Replies
- leemedz
Cirrus
Using a Performance Layer 4 Virtual Server may well bring PVA into the equation which would impact the tcpdump traffic captured so you could well be missing something important.
Details can be found in the following post: here
The other thing I would try is using a Standard VS as a test and see what happens.
kgaiglPVA is not active:
[root@ldb-ara27-rz-05:Active:In Sync] ~ # tmsh show /sys hardware | grep -i pva [root@ldb-ara27-rz-05:Active:In Sync] ~ #and VS Type Standart I've already tried, no difference
we've some other SSH VS, configured as Standart with some Docker Container, they are working well
- leemedz
Just found the following: K Article that has some troubleshooting steps for Performance (Layer 4) virtual servers: https://my.f5.com/manage/s/article/K62404483.
I would tweak the tcpdump output though as shown below (I have appended the 'p' to the command so that both sides (client and server) are captured) which might help show where the issue is:
tcpdump -vi 0.0:nnnp -s0 -w /var/tmp/<outputfile.pcap> -c <maximum packets> host <virtual_server_IP> or host <pool_member_IP>
- kgaigl
in the Layer4 Profile there is no Setting for PVA Acceleration
- leemedz
So that would suggest that the F5 devices are Virtual then at a guess.
Not really important either way - PVA is not in the picture so it can't affect the tcpdump output so I would run the tcp command above and see what it returns. Since it captures both the client and server traffic I am hoping that will shed a bit more light on where things are not working.
- zamroni777
MVP

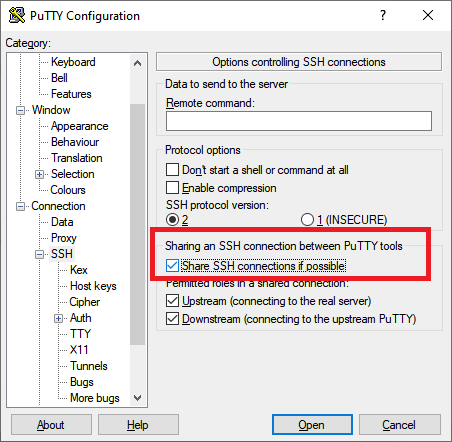

SSH indeed allows multiple client instances to use 1 ssh session.
in putty, this setting allows it.
i dont need to login on my second and subsequent putty windows when connecting to same ssh server - kgaigl
Hello Melissa,
sorry, that I've ignored the last posts, but for 99% the Problem is on the poolmember: an identical Test-VIP is working after Software-Update of the Pool-Member, so I guess, it's not a F5 Problem
