F5 DNS SSL sync error

Hi all,

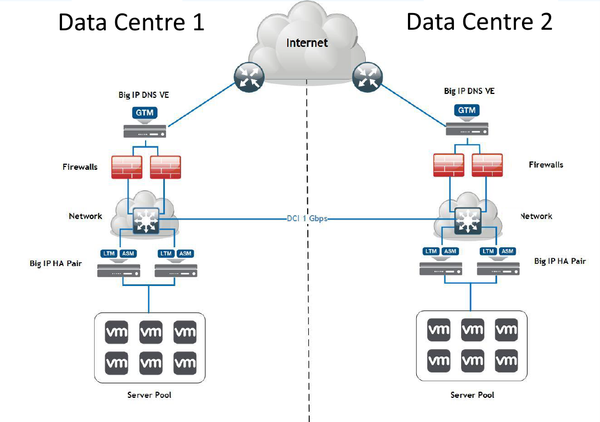

I have a new deployment, a pair of HA F5 LTM (Physical) and VE F5 DNS at each site. Configured as per this diagram:

I have the LTMs working and configured as I need them and these are working perfectly fine.

Regarding the F5 DNS I have setup the following;

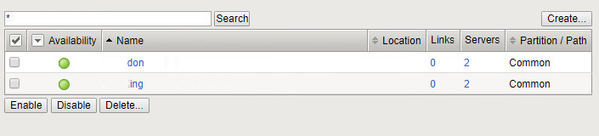

• GSLB -> Data Centres ->

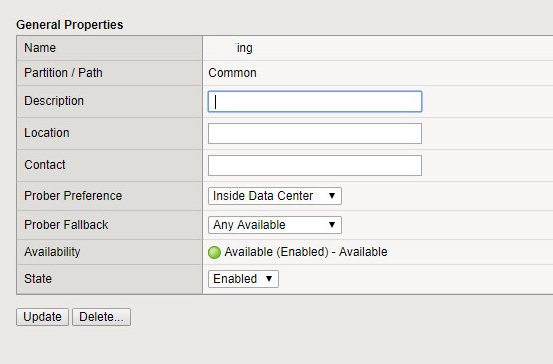

• DC1 Setup

• DC1 Servers

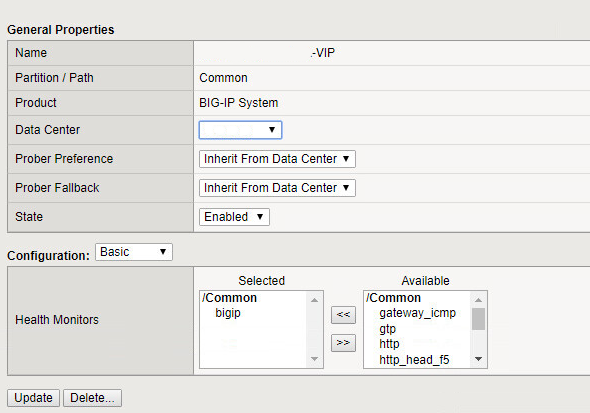

• DC1 - LTM - VIP

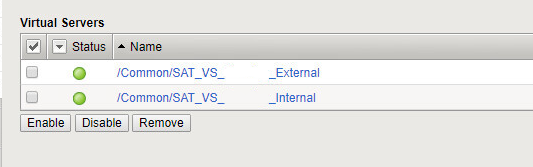

• Virtual Servers - Discovered

• No Links discovered though?

Listeners are setup and working OK, I can configure a wide IP and give it a pool, It shows as UP and responds to DNS OK.

On the other F5 I have setup the sync group under DNS -> Settings -> GSLB and enabled syncronisation.

This appears to run OK for a while and I see the correct objects turn up (The other side can't get a status of the objects so marks them down but this is firewall / routing and is going to be resolved).

After a while though, I get this in the log files and synchronisation stops working? If I go into the DC2 F5 DNS and run tmsh -> run gtm gtm_add and go through that again it works for a short period of time. After a while though, sometimes just on time or sometimes if I make a change forcing a sync I get the following error messages?



Mar 15 17:50:30 F5DNSDC02 notice gtmd[11207]: 011a001d:5: SYNC loading GTM config from: 81.xxx.xxx.xxx

Mar 15 17:50:30 F5DNSDC02 47648853176208:error:14090086:SSL routines:SSL3_GET_SERVER_CERTIFICATE:certificate verify failed:s3_clnt.c:1134:

Mar 15 17:50:30 F5DNSDC02 SSL return code: SSL_ERROR_SYSCALL

Mar 15 17:50:30 F5DNSDC02 ---

Mar 15 17:50:30 F5DNSDC02 New, (NONE), Cipher is (NONE)

Mar 15 17:50:30 F5DNSDC02 SSL-Session:

Mar 15 17:50:30 F5DNSDC02 Protocol  : TLSv1.2

Mar 15 17:50:30 F5DNSDC02 Cipher    : 0000

Mar 15 17:50:30 F5DNSDC02 Session-ID:

Mar 15 17:50:30 F5DNSDC02 Session-ID-ctx:

Mar 15 17:50:30 F5DNSDC02 Master-Key:

Mar 15 17:50:30 F5DNSDC02 Key-Arg   : None

Mar 15 17:50:30 F5DNSDC02 PSK identity: None

Mar 15 17:50:30 F5DNSDC02 PSK identity hint: None

Mar 15 17:50:30 F5DNSDC02 Start Time: 1521136230

Mar 15 17:50:30 F5DNSDC02 Timeout   : 300 (sec)

Mar 15 17:50:30 F5DNSDC02 Verify return code: 0 (ok)

Mar 15 17:50:30 F5DNSDC02  ---

Mar 15 17:50:30 F5DNSDC02 err gtmd[11207]: 011a0005:3: hookOnChild: SYNC syncer exited with error code 255



Has anyone seen this before?

I will keep fiddling with it to see if I can get it to work, But as far as I can tell I have followed all the documentation I can find.
