F5 APM/LTM Ansible module - which to use for changing apm access profile attached to VS?

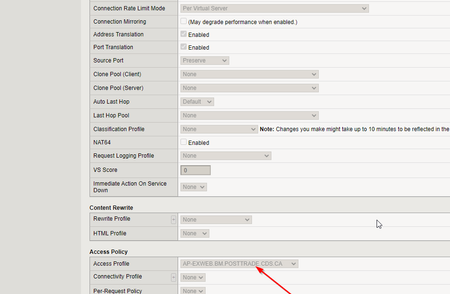

I would like to use the ansible f5 modules to basically remove or add an access policy attached to a virtual server list. Which ansible f5 module would I use for that? Would it be the bigi...

Ansible

BIG-IP

BIG-IP Access Policy Manager (APM)

devops

Dario_Garrido
Jan 29, 2021
Hello Sarlindo.

As I said in my previous response :-), 'profiles' option is a 'replace-all-with' action, so you have to introduce a complete list of profiles to assign on the VS.

In the documentation states this:
"List of profiles (HTTP, ClientSSL, ServerSSL, etc) to apply to both sides of the connection (client-side and server-side) ... If you want to remove a profile from the list of profiles currently active on the virtual, simply remove it from the profiles list".

Conclusion:
With AP profile: {{ tcp http myaccess-prof }}
Without AP profile: {{ tcp http }}

So, your variable "ans_f5_access_profile" should be a complete list with all the profiles assigned to the VS.

If this was helpful, I will appreciate if you mark my answer as 'the best' to help other people to find it ;-).

Regards,
Dario.

sarlindo

Altostratus

Jan 28, 2021

Hello Dario,

Thanks for this, so I should use something like the following to attach the profile I want? And to detach the profile I assume I need to use the "state: absent" ?

- name: Attach policy to VS

bigip_virtual_server:

state: present

partition: "{{ ans_f5_partition }}"

name: "{{ ans_f5_virtual_server }}"

profiles:

- "{{ ans_f5_access_profile }}"

provider:

server: "{{ ans_f5_endpoint_url }}"

user: "{{ ans_f5_userid }}"

password: "{{ ans_f5_password }}"

validate_certs: no
