enable WebSocket profile.

We want to enable WebSocket profile. I set is "websocket" in the virtual server

To enable it, HTTP profile needs to be enabled. I set it "http" in the same virtual server

We have SSL communication through F5 LTM from the internet, if I enable HTTP profile -- the connection is not established with the server.

Anything I need to configure?

Thanks in advance.

application delivery
LTM
websocket
  • boneyard's avatar
    boneyard
    Jun 08, 2022

    if you do not offload (or bridge - decrypt / re encrypt) SSL on the BIG-IP you can't do other profiles as the BIG-IP can only the encrypted traffic, which it can't read / understand.

  • PSFletchTheTek's avatar
    PSFletchTheTek
    Icon for MVP rankMVP
    Jun 08, 2022

    Hi,

    So websockets is part of the html payload.

    So you need to be able to see that payload for the profile to take affect.
    Have you got the client ssl and server ssl configuations on?

    Before you enabled the websockets profile, was this a working setup?

    • mdtariqul's avatar
      mdtariqul
      Icon for Altostratus rankAltostratus
      Jun 08, 2022

      We did not off-load ssl in our LTM (Local Traffic Manager, i4800; BIG-IP 16.1.0 Build 0.0.19 Final). We only create sessions for 443 https virtual servers, ssl is maintained by internal servers. So, this was a working setup.

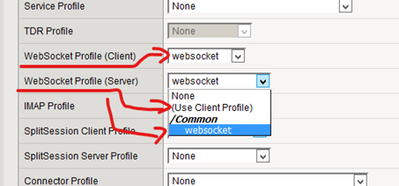

      Now the application vendor needs the WebSocket session.  I just enable it in the virtual server as follows, and then the total communication stops.

      to do this, we need to enable http profile

      it seems I am not on the right track.

      • boneyard's avatar
        boneyard
        Icon for MVP rankMVP
        Jun 08, 2022

        if you do not offload (or bridge - decrypt / re encrypt) SSL on the BIG-IP you can't do other profiles as the BIG-IP can only the encrypted traffic, which it can't read / understand.
