NimbostratusConfiguration of the custom parameters of the RDP application in APM
Hi all
I configured a RDP application by using native client type in the APM and I would like to put some RDP configuration (such as below) in the customer parameters. But after I add it, I found that those configuration are not in the rdp file generated by F5 APM. So may I know if you have same experience? If yes, how to solve it? My BIG-IP version is 13.1.3 Build 0.0.6
Disable wallpaper:i:1
Bitmapcachepersistenable:i:1
Best regards
Alex Tsang
SmithyCirrostratus
You add the settings to the “Custom Parameters” field, one per line. Great overview of these Parameters here: https://www.donkz.nl/overview-rdp-file-settings/.
I just added “redirectclipboard:i:0” to my RDP config and it stopped copy/paste when I tested it.
BIG-IP: 14.1.2.1
Alex_TsangHi Brett
Thanks, and I did the same but not working in my environment. These configurations should be appear in the RDP file generated by F5, right? If yes, I cannot find the setting configured in the custom parameters appear in the RDP file.
Best regards
Alex Tsang
- Smithy
Hi Alex,

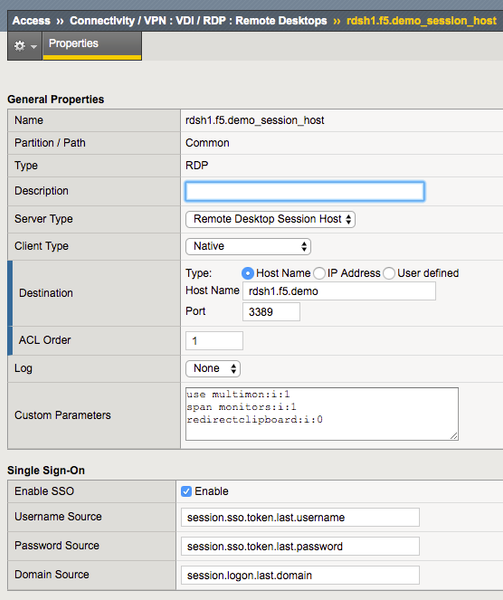

Yes, they should be in the RDP file. I removed "use multimon:i:1" and "span monitors:i:1" for this test from the above configuration.
This is the RDP file from my test with only "redirectclipboard:i:0" included in the "Customer Parameters":
authentication level:i:0
enablecredsspsupport:i:0
full address:s:rdsh1.f5.demo
gatewayaccesstoken:s:uLOn/y2GmR7_fHAEtXsw9w
gatewaycredentialssource:i:5
gatewayhostname:s:rdp.f5.demo
gatewayprofileusagemethod:i:1
gatewayusagemethod:i:1
redirectclipboard:i:0
server port:i:3389
Cheers,
Brett
- Alex_Tsang
Hi Brett
We finally find that the custom parameters will apply after we reboot the system, so I believe this may be bug in my release and we opened case in F5.
Best regards
Alex Tsang
