BiG-IP RST after OCSP "good" response

Hi,

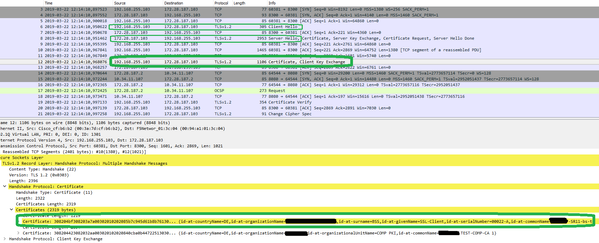

I have configured a VSERVER with client authentication per client-certificate. Client Authentication is required and checked against the Trusted CA. In addition i have configured an authentication profile for OCSP to check the cert-status „good“ or „revoked“. In the wireshark capture you see the client <> BiG-IP and BiG-IP <> OCSP-Responder connection. The OCSP respons is „good“ but the BiG-IP sends a RST to Client-IP.



The APM Module is not licensed. I hope it is running with LTM.



Any idea ?



Thank you !!



BiG-IP Version 13.1.1.2



VSERVER: 172.28.187.103 TCP:8300



Client: 192.168.255.103



OCSP Responder: 10.34.11.107

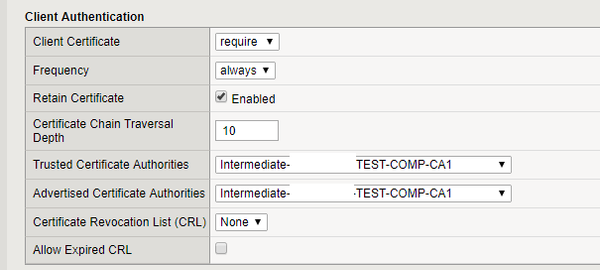

SSL Profile: set with „Client Authentication required and always“

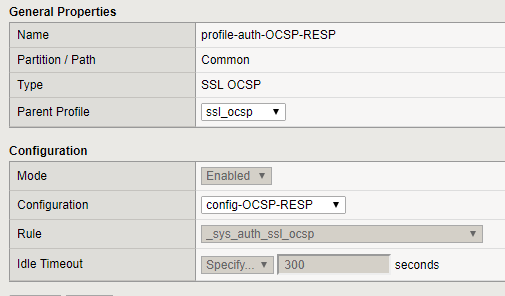

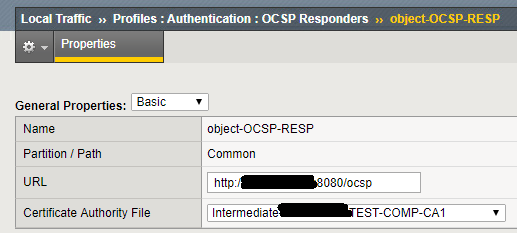

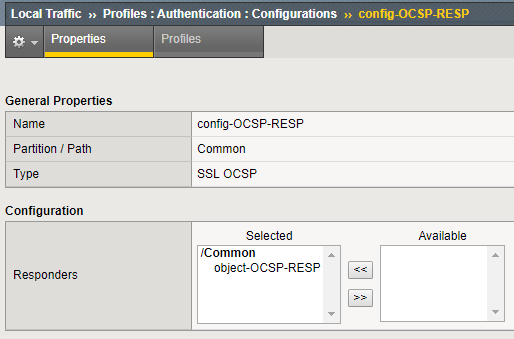

Authentication Profile with OCSP Responder
