F5 BIG-IP Zero Trust Access
F5 BIG-IP Zero Trust Access improves security and the user experience while managing access to your portfolio of corporate applications.
Table of Contents
Introduction
F5 BIG-IP Zero Trust Access, a key component of the F5 Application Delivery and Security Platform (ADSP), helps teams secure apps that are spread across hybrid, multi-cloud and AI environments. In this article, I’ll highlight some of the key features and use cases addressed by BIG-IP Zero Trust Access.
F5 BIG-IP Zero Trust Access improves security and the user experience while managing access to your portfolio of corporate applications.
Demo Video
What is Zero Trust?
Key Zero Trust Concepts
Zero Trust is a cybersecurity framework built on the following core concepts:
- Never Trust
- Similar to human concepts that trust is not given freely, it is earned
- Always Verify
- Authenticate and authorize based on all available data points
- Continuously Monitor
- Zero Trust is an ongoing security framework that requires monitoring
F5 enables zero-trust architectures that optimize your investments and extend zero-trust security across your entire portfolio.
Why is this important?
Securing apps is complex because apps are spread across a hybrid, multi-cloud environment. Apps themselves have become hybrid in nature, too. This creates 2 problems: Legacy and custom applications can complicate access security. Apps residing anywhere increases the attack surface. F5 BIG-IP Zero Trust Access secures hybrid application access.
Securely managing access to corporate applications is critical to preventing data breaches. Doing it well can also increase efficiencies in business processes and user productivity.
A Zero Trust security model can deliver this business value by enabling users to seamlessly and securely access their applications from anywhere regardless of where the application resides. In today’s world of hybrid, multicloud and AI applications, Zero Trust is a must. Application access control is key to any Zero Trust architecture.
How does F5 address Zero Trust?

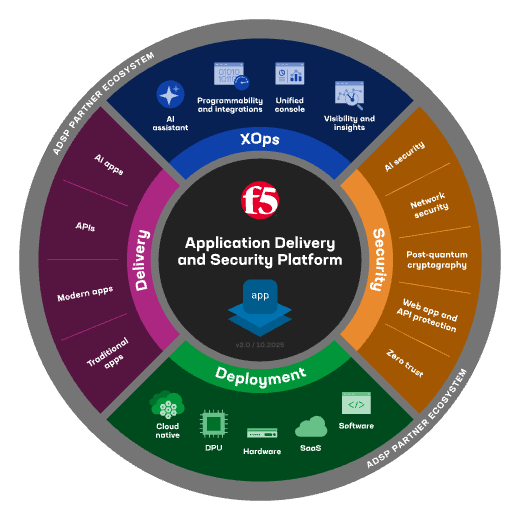

F5 Zero Trust Begins with Secure Access to All Apps. The F5 Application Delivery and Security Platform (ADSP) is the foundation for Zero Trust Architectures. F5 ADSP delivers visibility, enforcement, and intelligence where it matters most: the application layer.
While there are many important components to Zero Trust, we will be focusing on Zero Trust Application Access:
Identity-Aware Proxy - Secure access to apps with a fine-grained approach to user authentication and authorization that enables only per-request context- and identity-aware access.
Single Sign-On (SSO) and Access Federation - Integrating with existing SSO and identity federation solutions, users can access all their business apps via a single login, regardless of if the app is SAML enabled or not.
OAuth 2.0 and OIDC Support - Enable social login to simplify access authorization from trusted third-party identity providers like Google, LinkedIn, Okta, Azure AD, and others.
Identity Aware Proxy (IAP) – A Key Component of Zero Trust

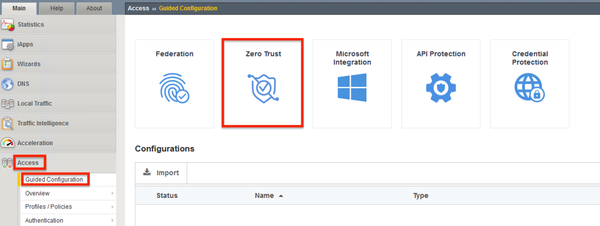

Use the Guided Configuration to configure the Identity Aware Proxy. From the BIG-IP UI, go to Access > Guided Configuration > Zero Trust.

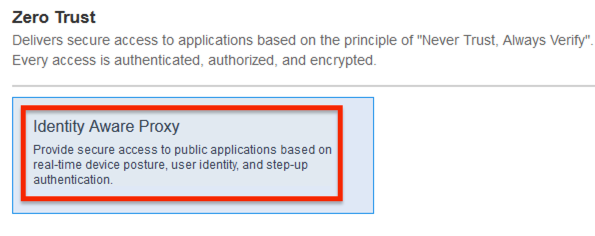

Select the Identity Aware Proxy

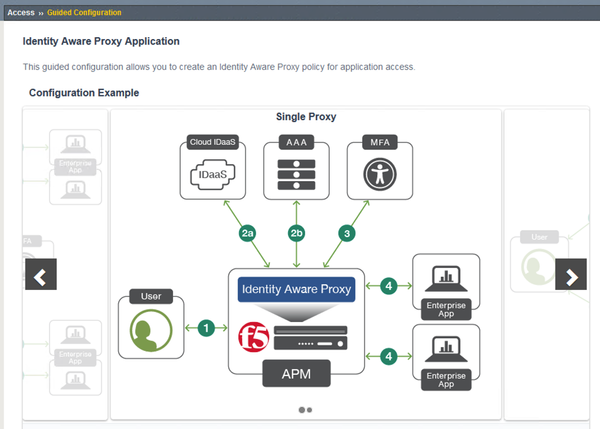

You will see a configuration example of Identity Aware Proxy
Click Next at the bottom

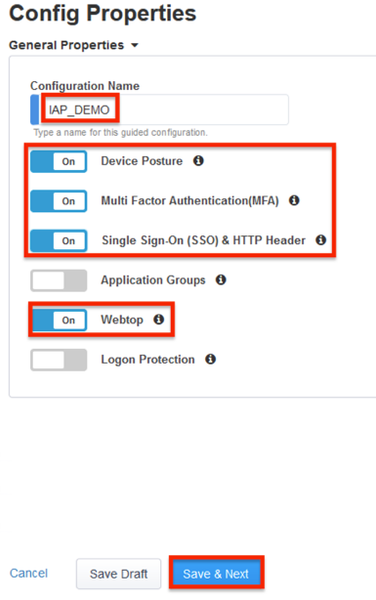

For the Config Properties, give it a name, “IAP_DEMO” in this example
Set the below options to On
Click Save & Next

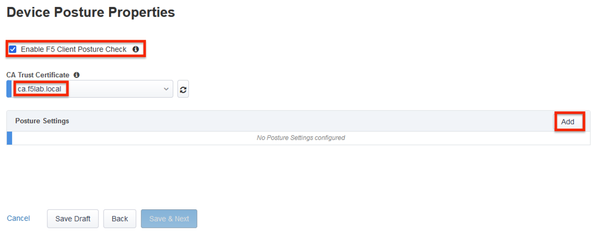

Enable the F5 Client Posture Check
Select your CA Trust Certificate
Click Add

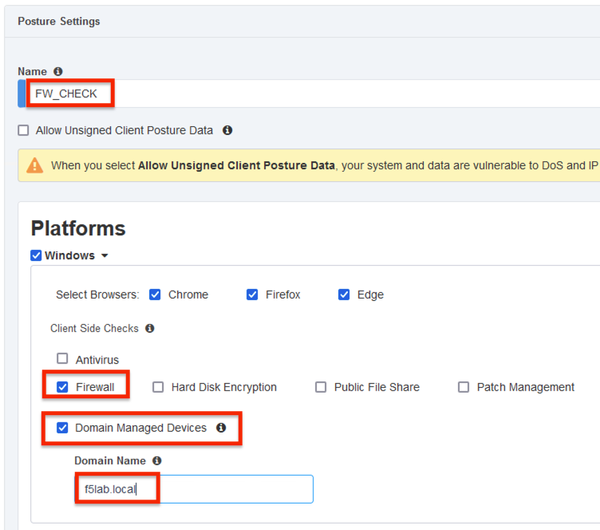

Give it a Name, “FW_Check” in this example
Under Windows, select Firewall and Domain Managed Devices
Enter your domain name, “f5lab.local” in this example
Click Done

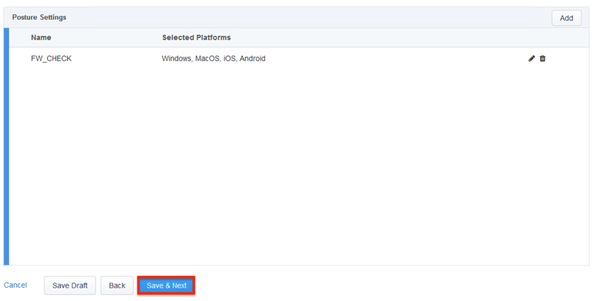

Click Save & Next

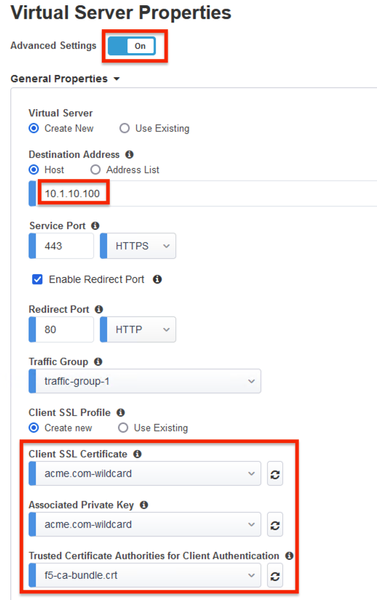

Configure the Virtual Server Properties
Switch Advanced Settings to On
Set the Destination Address, “10.1.10.100” in this example
For the Client SSL Profile, select the Client SSL Certificate, Private Key and Trusted Certificate Authorities

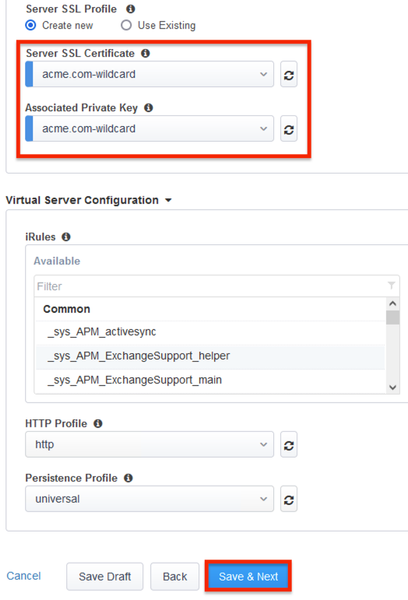

For the Server SSL Profile, select your Server SSL Certificate and Private Key
Click Save & Next

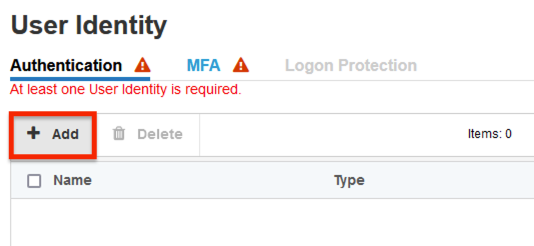

Click Add under Authentication

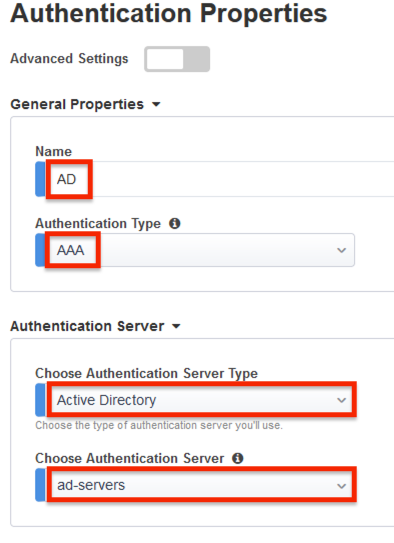

Give it a Name, “AD” in this example
Set the Authentication Type to “AAA”
Set the Authentication Server Type to Active Directory
Choose your Authentication Server, “ad-servers” in this example

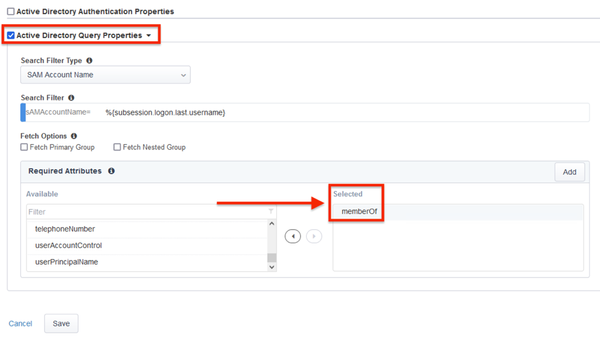

Check the box for Active Directory Query Properties
Under Required Attributes, find “memberOf” and click the arrow to move it to Selected

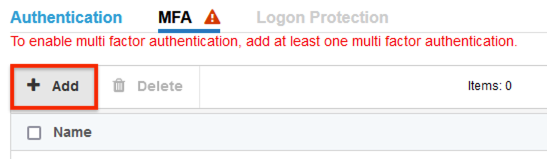

Click MFA
Click Add

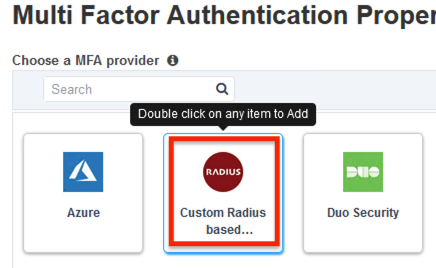

Double click Radius
Under Choose Radius Server, select Create New
Give it a name, “radius_pool” in this example
Enter the Server IP Address, “10.1.20.8” in this example
Enter the Secret in the two fields
Click Save
Click Save & Next

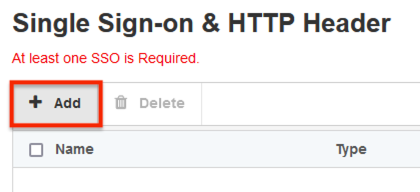

Click Add
Give it a name, “basic_sso” in this example
For the SSO Configuration Object, click Create New

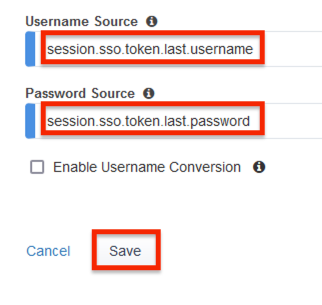

The Username Source and Password Source should be set like the following
Click Save

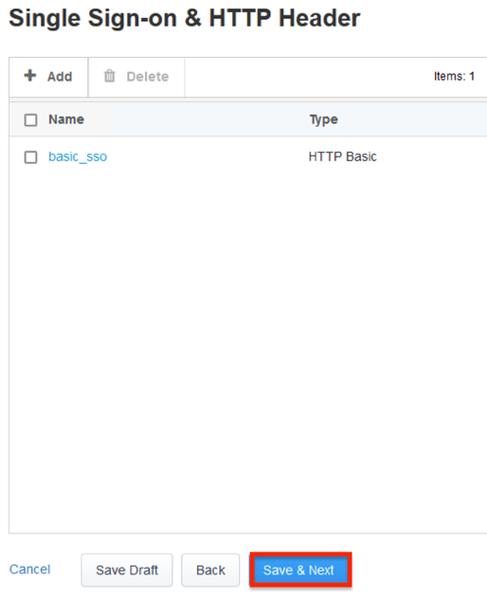

Click Save & Next
Under Applications click Add
Give it a name, “iap1.acme.com” in this example

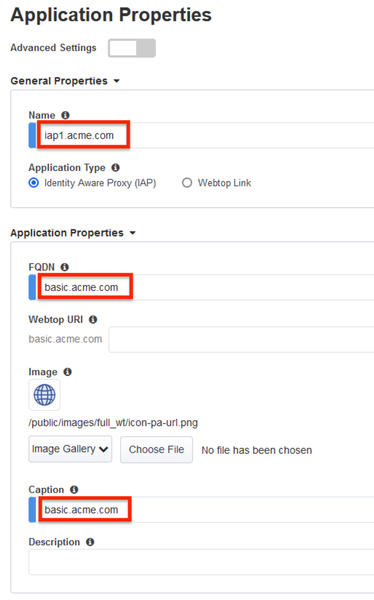

Under Application Properties, set the FQDN and Caption to “basic.acme.com”

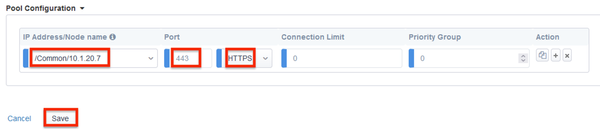

Set the Pool IP Address to 10.1.20.7, Port 443, HTTPS
Click Save

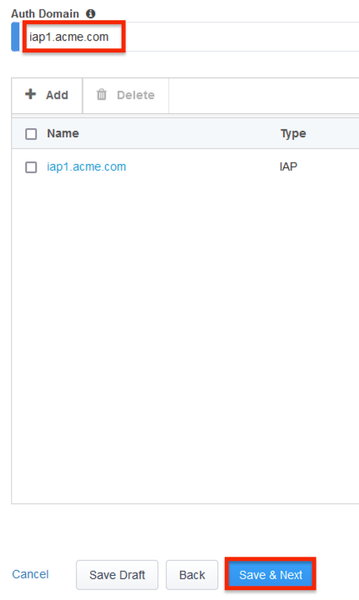

For the Auth Domain, enter “iap1.acme.com”
Click Save & Next
Set Primary Authentication to “AD”
Click Save & Next

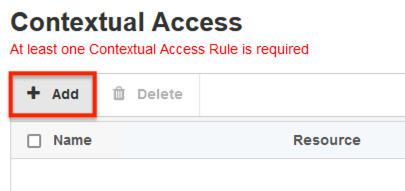

Click Add under Contextual Access

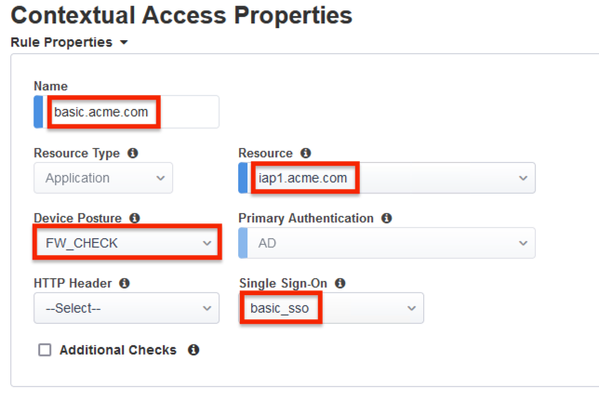

For the Contextual Access Properties, give it a name, “basic.acme.com” in this example
Set the Resource to iap1.acme.com
Set Device Posture to FW_CHECK
Set Single Sign-On to basic_sso

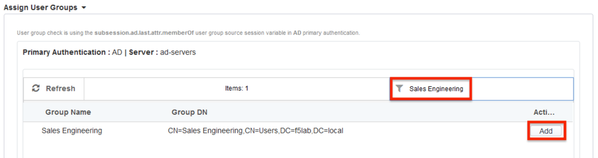

Find the Sales Engineering Group and click Add
Select the box for Additional Checks
Set the Match Action to Step Up

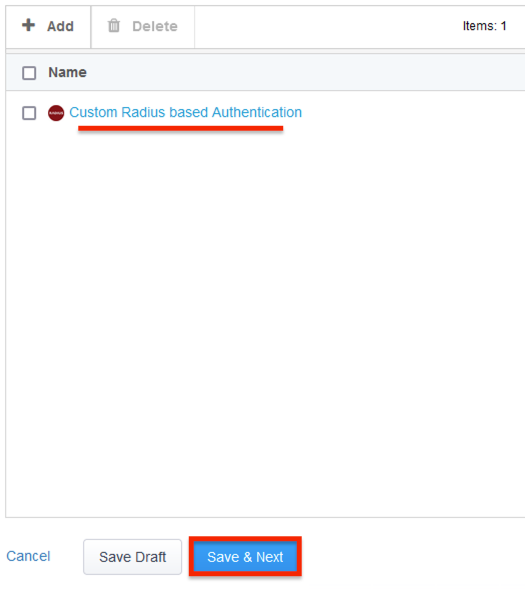

Set Step Up Authentication to Custom Radius based Authentication
Click Save & Next

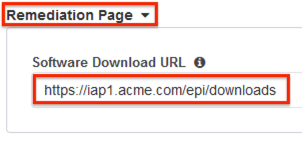

The Remediation Page must be changed to a real host where users can download and install the EPI updates
In this example, it has been changed to “https://iap1.acme.com/epi/downloads”
Click Save & Next
Click Save & Next
Click Deploy
Click Finish when the deployment completes

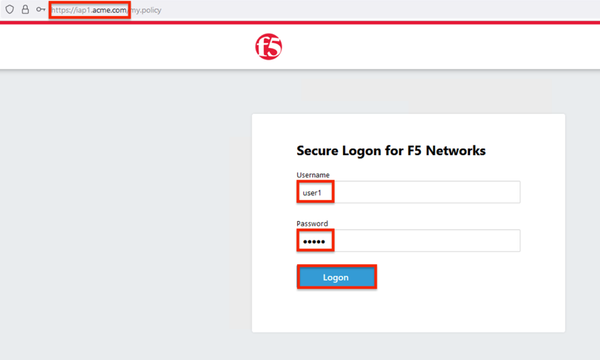

Test the functionality by going to a client computer and accessing https://iap1.acme.com
Logon with valid credentials
You should see a page like the following
Click basic.acme.com

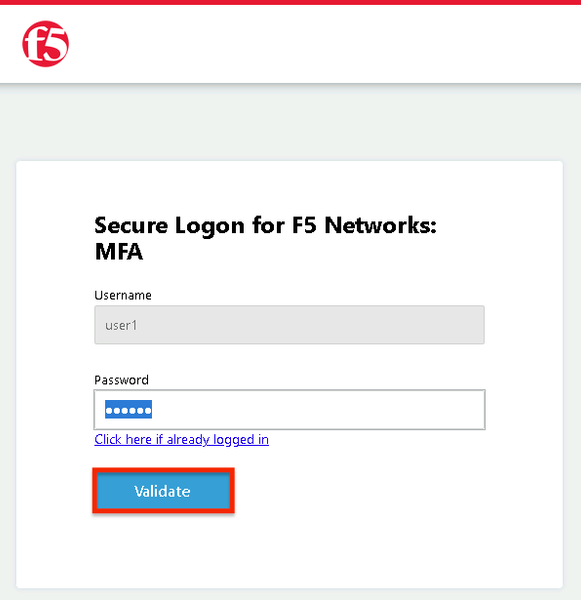

Login with valid credentials & click Validate
You should see the basic.acme.com web page and be already logged in
Note: If you disable the Windows Firewall on the client, you should get a block page similar to the following:
Conclusion
BIG-IP introduces a powerful access experience.
BIG-IP provides a variety of Authentication, Federation, SSO and MFA protocols allowing for modern to legacy protocol translation.
BIG-IP integrates with 3rd parties to enforce identity aware decisions.
BIG-IP secures identities for any apps and users anywhere in legacy and modern environments, spanning on-prem, hybrid or cloud locations.
The highly scalable and proven Access Security solution that F5 customers know and trust.
