APM LDAP Query for Group Member?

Hi all, Since we're using a standard LDAP Server with DN of ou=People and ou=Groups I try to get with a LDAP Query the Group Membership of a specific user. The Group entry in the LDAP is of objectClass "GroupOfNames" and has a member Attribute. It seems that with the standard LDAP Query Box in the Branch Rules I can select "User is a mamber of" but this seems only to support the AD memberOf attribute to search for. So is it that the LDAP Query Box is built only for querying AD with LDAP?



I'm looking now for the possibility to get the Group Membership of a generic LDAP with the above objectClass of the "GroupOfNames".



Any hints or examples howto get this with an APM Policy?



Many thanks



Best regards, Peter



BIG-IP Access Policy Manager (APM)
ldap
security
  • Matt_Dierick's avatar
    Matt_Dierick
    Icon for Employee rankEmployee
    Oct 30, 2013

    Hi Peter,



    First of all, which release is your BIGIP ? On 11.4, there a very easy way to do that. You can use the box "LDAP group assign".



    Prior to 11.4, you need to do a standard LDAP query to get the attributs, and add a Full ressource assign box which check this value. It is a APM variable.



    Let me know. Matt



  • Matt_Dierick's avatar
    Matt_Dierick
    Icon for Employee rankEmployee
    Oct 30, 2013

    Yes, here you are.

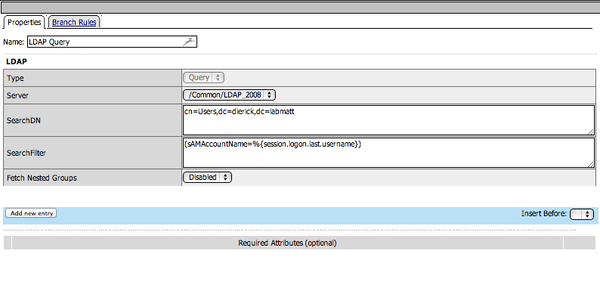

    First, make a full query, in order to check if attribute is saved :

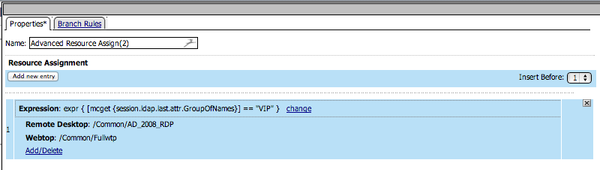

    2nd, make a full resource assign with an expression (you can use "contains" "==" "ends_with"...) :

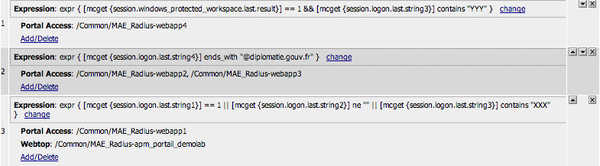

    Example of a complete "full resource assign"



    You can check your variables in Access Policy > Reports. Have a look into ldap.last.attr.



    Hope this help.



  • Peter_Baumann's avatar
    Peter_Baumann
    Icon for Cirrostratus rankCirrostratus
    Oct 30, 2013

    Cool!

    Many thanks!

    Thanks to your example I found now a way to figure out member of Groups:

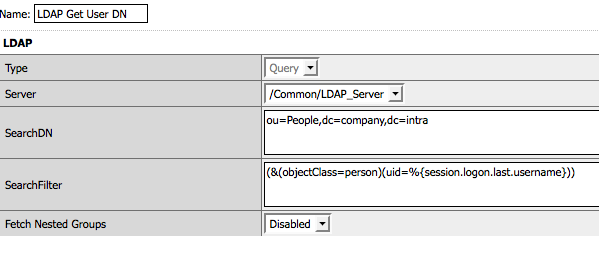

    First I'm doing a query to get the user DN over a uid query:

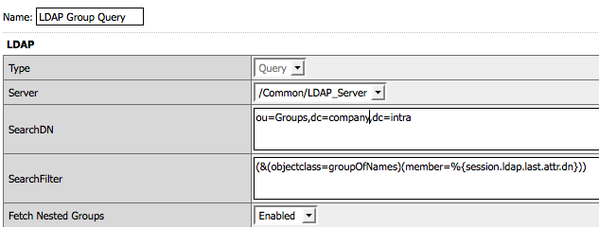

    And then with the second query I'm checking with the %{session.ldap.last.attr.dn} the Group:



    After this I do a Full Resource Assign you mentioned.



    Thanks for your help!

    Best regards,

    Peter



  • Jackie_Smith_11's avatar
    Jackie_Smith_11
    Icon for Nimbostratus rankNimbostratus
    Jul 02, 2014

    For the images, the work around is copy "/Portals.......png" paste it into a browser but place https://devcentral.f5.com in front of it. Should look something like https://devcentral.f5.com/Portals......png
