An http redirect irule that is executing but not actually redirecting

the condition {[HTTP::uri] contains "xxx"} is case sensitive.

to convert URI to lowercase, the condition must be: {[string tolower [HTTP::uri]] contains "xxx"}

of course, configure xxx with only lowercase...

It is a fairly easy to add debugging info to the iRules when developing them. You can add logging within the if-clause to see if the condition is met. (

log local0. "Kilroy was here.."

Then check the ltm log.

tail -f /var/log/ltm from command line would give you real time view what is appended to the log. Also have you checked for any run time TCL errors in the ltm log?

what happens if you use HTTP Fox or Fiddler, do you see the redirect happen here, even if it fails? This might give you a clue as to what's going on, or not.

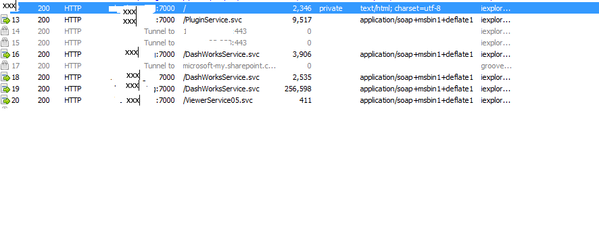

I'm not seeing anything useful in fiddler. Attaching a snip. I replaced the dns name with xxx. So, in the snip, where you see xxx is exactly the text in the "xxx" in the irule. The destination pages load Dundas dashboards. I'm trying to redirect any hits with "xxx" to a specific dashboard URL. What's happening instead is, it's loading the default Dundas admin pages rather than redirecting to a specific dashboard.

From the fiddler: xxx is host part of the request. HTTP::uri is the URI part of the URL. Ie. path and parameters - and does not contain host. Try URI::host or HTTP::host instead.

From iRules wiki:

HTTP::uri

Returns or sets the URI part of the HTTP request.

For the following URL:
http://www.example.com:8080/main/index.jsp?user=test&login=check
The URI is:
/main/index.jsp?user=test&login=check


URI::host

Returns the host portion of a given URI.
URI::host


HTTP::host¶

Returns (or sets in v11.5+) the value of the Host header of an HTTP request.

Thanks for sticking with this. Here's where I'm at currently.

If I use the irule below

when HTTP_REQUEST { if { [http::host] contains "xxx"} { HTTP::redirect "" } }

without a host header entry for the site, I get an immediate page cannot be displayed and a corresponding execution and failure in statistics for the rule on the F5 web UI.

If I add xxx as the host header (xxx as the host name in the bindings for All unassigned IPs or for the IP for the site), it takes a long while, then I get a paged cannot be displayed error, and no failure indicated in statistics (execution is indicated, but no failure).

With the rule disabled (not associated to the VIP):

I cannot load the page I'm trying to redirect to by hitting it directly if xxx is a host header (as defined above).

The only way I can load the page I'm trying to redirect to by hitting the url directly is if there is no host header (as defined above) and without this irule.

Any ideas?

If I can jump in here, when a modern browser makes an HTTP request to a site using an odd port (ie. not port 80 for HTTP and 443 for HTTPS), that port becomes part of the Host header. Example:

when HTTP_REQUEST {
    log local0. [HTTP::host]
}

Testing from cURL:

curl http://test.domain.com:88

Log result:

: test.domain.com:88

When you talk about host name binding, are you talking about the web server configuration, as in Host header binding in IIS? If so, it's very likely that you need to specify the port as part of that Host header.
