Allow Specific URLs to Internal IPs only

I have a requirement where the urls on a website must be accessible from Internal networks only. what is the easiest way to do this without irules?

can I put in an IP address exception for private IPs and set it to 'Never block this IP' and add the URLs to blocklist to achieve this?



Please advise.

ASM Advanced WAF
security

7 Replies

  • Lidev's avatar
    Lidev
    Icon for Nacreous rankNacreous
    Jan 15, 2021

    Hi Sarath413,

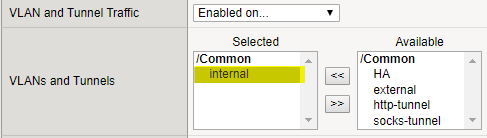

    Does this concern all URLs ? if it is that configure the Virtual Server on internal VLAN only.

    • Sharath413's avatar
      Sharath413
      Icon for Nimbostratus rankNimbostratus
      Jan 15, 2021

       Thanks for the response. No, we want to allow few URLs externally and all URLs internally.

      • Lidev's avatar
        Lidev
        Icon for Nacreous rankNacreous
        Jan 15, 2021

        you can try to set this up :

        1 - VS1 /Virtual Server exposed on internal VLAN without URL restrictions

        2- VS2 /Virtual Server exposed on external VLAN (with same pool members VS1-) and add the URLs you want blocked in Disallowed URLs List.
