Forum Discussion
About Routing
Hello,

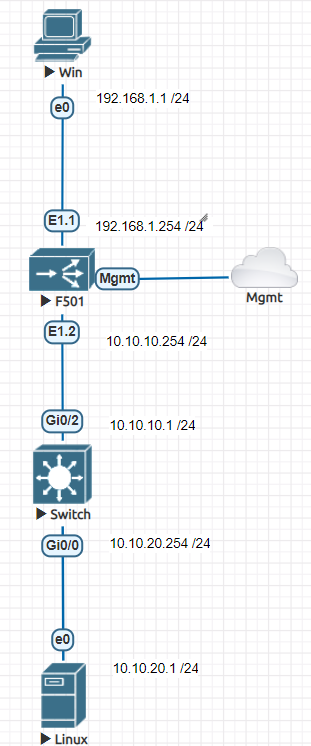

Here is my structure:

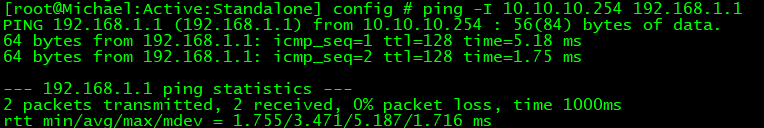

My F5 can ping 192.168.1.1 through 10.10.10.254

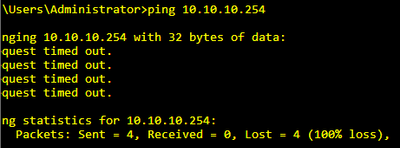

But why Win(192.168.1.1) can't ping 10.10.10.254 ?
Any help is appreciate.
Because F5 is not a router, when you create a virtual server it accepts traffic which has the destination of that virtual server.
When you ping another interface other than where you come from it will not reply. I think it is normal.
"LTM is considered to be default deny. This means that when no traffic processing objects are configured, for example, a virtual server and a pool, the BIG-IP system will not process any network traffic. You need to configure at least one traffic processing object on the BIG-IP system to begin processing traffic."
You need to check F5's routing table:
tmsh show /net route
To determine the route cause, you can take a wireshark packet capture on both interfaces:
https://my.f5.com/manage/s/article/K13637- Brandon_Employee
Hello Michaelyang,
A selfip is only reachable when the request is received on the VLAN on which it is configured.
So you cannot ping a selfip through the BIG-IP even if you have a forwarding VS.
