About IPsec setting with PaloAlto

Hello,

I am trying to set up Site to Site VPN between F5 and PA but can't get it to work.

Here is my structure :


Here is my PA setting :

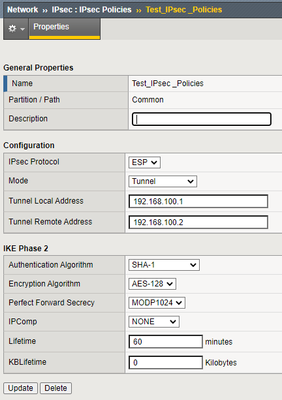

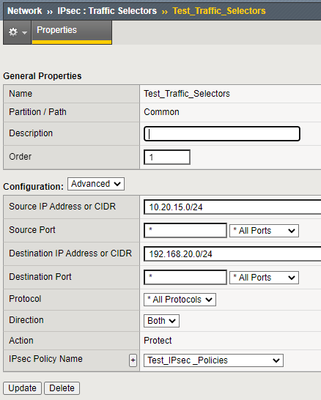

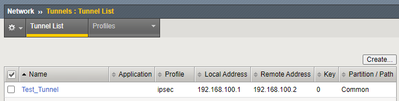

Here is my F5 setting :



Virtual Server has created a Forwaring IP
Am I missing something?
or is the setting wrong?

Any help is appreciate.









  • Michaelyang Do you have any debug logs on either side of this tunnel? Ideally if you could provide debug logs from both sides that would be helpful in narrowing down the issue on this.
