About CPU

Hello,

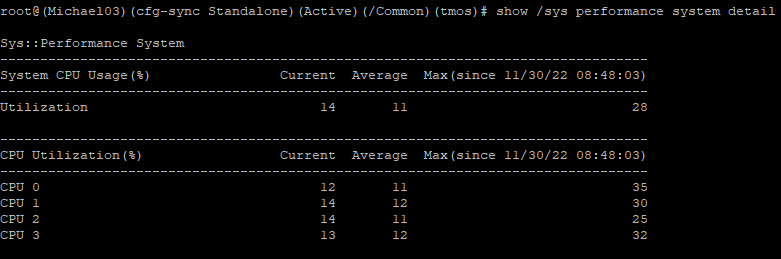

When I was checking CPU usage, I found that there are many types of...

What do they represent...?

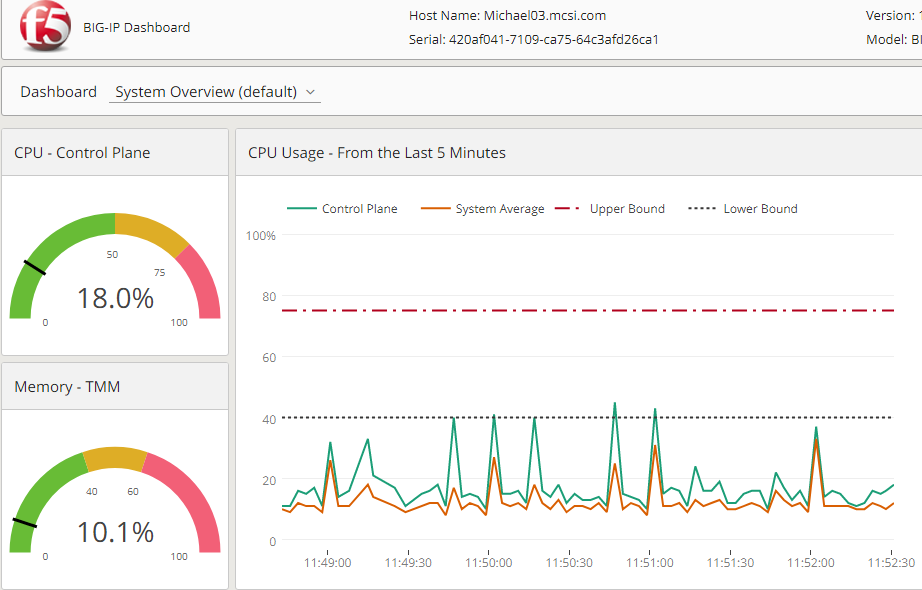

The CPU in the dashboard again represents which one in cmmand

Any help would be appreciated!



  • Hi Michaelyang ,

    Under cli, you are looking at each cpu usage for each logical cpu core. If you want to compare it GUI result, you can check it as given below -

    1. Goto - Statistics --> Performance Reports --> Performance Reports
    2. Check System CPU Usage graph
    3. Click the View Detailed Graph where you can see per plane, core cpu usage and compare it with cli o/p

    The one you are seeing in the WEBUI is nothing but overall current usage of Control Plane CPU.

    May I know the F5 model/VM that you are looking at ?

  • Hi Michaelyang ,

    Under cli, you are looking at each cpu usage for each logical cpu core. If you want to compare it GUI result, you can check it as given below -

    1. Goto - Statistics --> Performance Reports --> Performance Reports
    2. Check System CPU Usage graph
    3. Click the View Detailed Graph where you can see per plane, core cpu usage and compare it with cli o/p

    The one you are seeing in the WEBUI is nothing but overall current usage of Control Plane CPU.

    May I know the F5 model/VM that you are looking at ?

    • Michaelyang's avatar
      Michaelyang
      Icon for Cirrostratus rankCirrostratus

      Hi Mayur_Sutare,

      Thanks for your reply.

      I am looking at F5 VE (16.1.2.2)
