About CPU

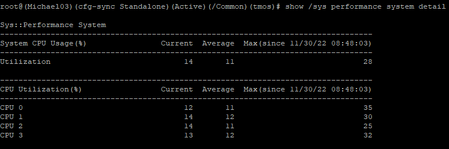

Hello, When I was checking CPU usage, I found that there are many types of... What do they represent...? The CPU in the dashboard again represents which one in cmmand Any help would b...
application delivery
  • Mayur_Sutare's avatar
    Mayur_Sutare
    Nov 30, 2022

    Hi Michaelyang ,

    Under cli, you are looking at each cpu usage for each logical cpu core. If you want to compare it GUI result, you can check it as given below -

    1. Goto - Statistics --> Performance Reports --> Performance Reports
    2. Check System CPU Usage graph
    3. Click the View Detailed Graph where you can see per plane, core cpu usage and compare it with cli o/p

    The one you are seeing in the WEBUI is nothing but overall current usage of Control Plane CPU.

    May I know the F5 model/VM that you are looking at ?

Mayur_Sutare's avatar
Mayur_Sutare
Icon for MVP rankMVP

Hi Michaelyang ,

Under cli, you are looking at each cpu usage for each logical cpu core. If you want to compare it GUI result, you can check it as given below -

  1. Goto - Statistics --> Performance Reports --> Performance Reports
  2. Check System CPU Usage graph
  3. Click the View Detailed Graph where you can see per plane, core cpu usage and compare it with cli o/p

The one you are seeing in the WEBUI is nothing but overall current usage of Control Plane CPU.

May I know the F5 model/VM that you are looking at ?

Michaelyang's avatar
Michaelyang
Icon for Cirrostratus rankCirrostratus
Nov 30, 2022

Hi Mayur_Sutare,

Thanks for your reply.

I am looking at F5 VE (16.1.2.2)
