F5 Distributed Cloud Services Simulator Connect

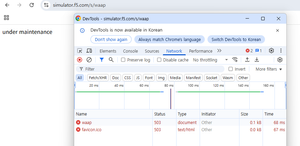

Hi, I would like to try the F5 Distributed Cloud simulation. When I access the simulator URL from the link "https://community.f5.com/kb/distributedclouduserstkb-board/f5-distributed-cloud-services-simulator/297996", I get an error. Does anyone know about this issue? Is it not available anymore? Thanks for any help/Guidance. Any input is much appreciated
F5 XC and Azure FrontDoor
Hi all, I would like to ask for some advice how to configure application behind Azure FrontDoor on F5 XC solution. As Azure FD required valid SSL certificate to forward traffic we used on BIG-IP workaround with "WAF domain" where valid certificate was used and we were able to connect to the application from FD via AWAF. XC create DNS for virtual host (loadbalancer) in format ves-io-uuid.ac.vh.ves.io but address has not valid SSL certificate so FD is not able to connect. Does someone has certain experiences with such implementation? Another question is how do you recognize clients in such cases? Especially when one domain is behind Azure FD or another CDN and another is not. By default client is recognized by IP address so in case that traffic is forwarded via CDN/FD we need to change User Identifier from "Client IP Address" to different object, for example some header. But what about application what is not behind CDN. How it will be recognized? Can I combine it somehow on one vhost (loadbalancer)? Thank you.
Site stuck during provisioning ?
Hi All, yesterday I installed the site with secure mesh and after some time the site got stuck in provisioning state, when I run some commands to see the status of the site and it shows below mentioned output "status ver" : "The service is being restarted" "config-network" : "The site is in provisioning state" Moreover the ssh and https access to the site was also lost and "health" command is also not showing any IP address configured, rebooted the site and nothing works. When checked the main console it shows like the site is being upgraded. Waited for 2 to 3 hours no difference. Also checked the F5 Zendesk document but couldn't able to relate to my situation. Left the site overnight and in the morning just rebooted the site and it actually provisioned. I observed the similar behavior during the F5 lab when the site was upgraded. it took atleast 6 to 7 hours of to upgrade and then the after the manual reboot the site got working. I just wana know is it a default behavior or am I missed something ?Need help to understand operation between RE and CE ?
Hi all, We have installed CE site in our network and this site has established IPSEC tunnels with RE nodes. The on-prem DC site has workloads (e.g actual web application servers that are serving the client requests). I have citrix netscaler background and the Citrix Netscalers ADCs are configured with VIPs which are the frontend for the client requests coming from outside (internet), when the request land on VIPs, it goes through both source NAT and destination NAT, its source address is changed to private address according to the service where the actual application servers are configured and then sent to the actual application server after changing the destination to IP address of the server. In XC, the request will land to the cloud first because the public IP, which is assigned to us will lead the request to RE. I have few questions regarding the events that will happen from here after Will there going to be any SNAT on the request or will it send it as it is to the site? And if there is SNAT then what IP address will it be ? and will it be done by the RE or on-prem CE There has to be destination NAT. Will this destination NAT is going to be performed by the XC cloud or the request will be sent to the site and site will do the destination NAT ? When the request will land the CE it will be landed in VN local outside so this means that we have to configure the network connector between the VN Local outside and the VN in which the actual workloads are configured, what type of that VN would be ? When the request will be responded by the application server in local on-prem the site the request has to go out to the XC cloud first, it will be routed via IPSEC tunnel so this means that we have to install the network connector between the Virtual network where the workloads are present and site local outside, do we have to install the default route in application VN ? Is there any document, post or article that actually help me to understand the procedure (frankly I read a lot of F5 documents but couldn’t able to find the answers
